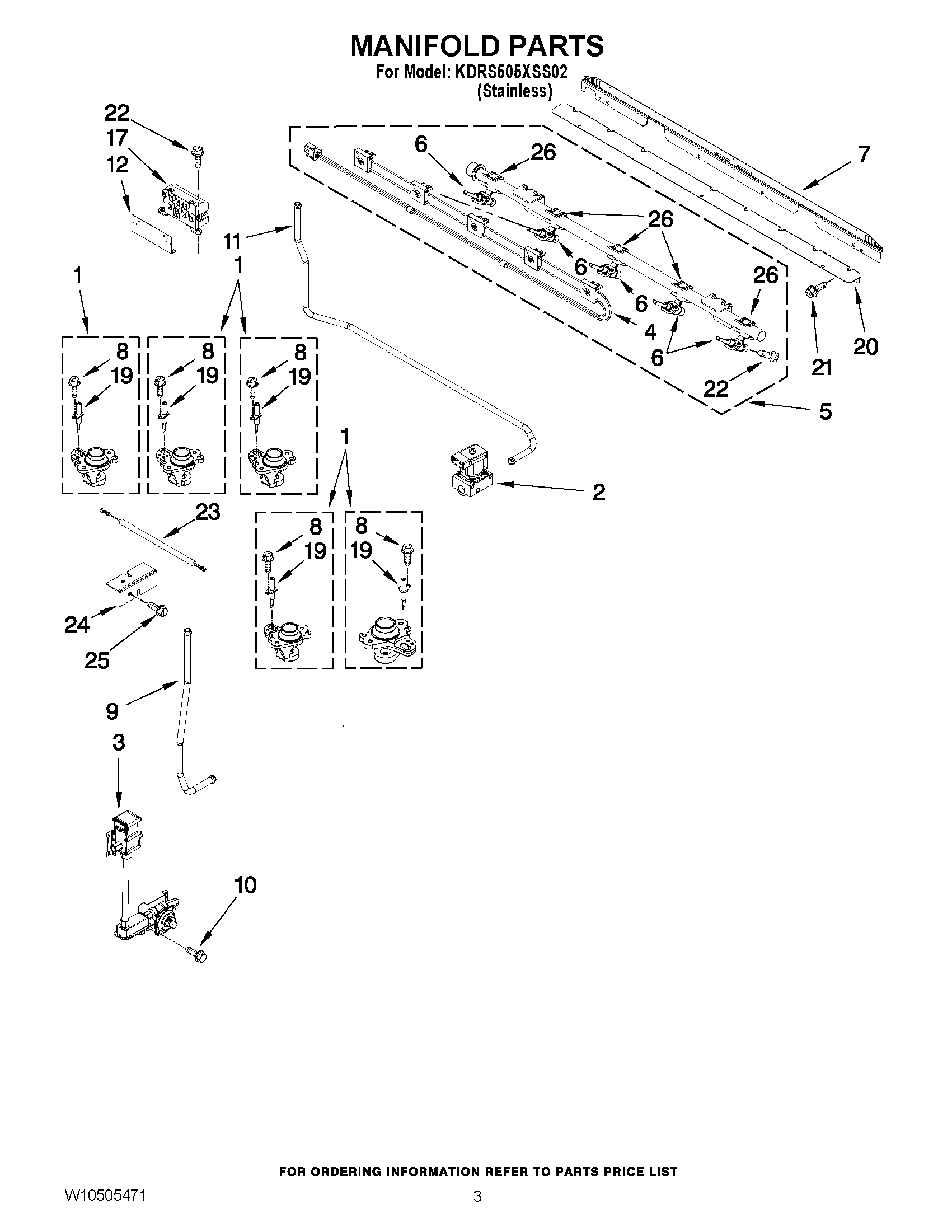

KDRS505XSS02 03 – MANIFOLD PARTS

KDRS505XSS02 03 – MANIFOLD PARTS

Written by

in

KDRS505XSS02 03 – MANIFOLD PARTS

Products

PositionProduct
NIWPW10311058 Whirlpool Orifice Spud
1HOLDER, ORIFICE (12K) (RIGHT FRONT)
1WPW10319347 Whirlpool Orifice Holder
1WPW10273139 Whirlpool Orifice Holder
1WPW10273135 Whirlpool Orifice Holder
1WPW10273133 Whirlpool Orifice Holder
2VALVE, SHUT OFF
3VALVE, REGULATOR
4WPW10204718 Whirlpool Wire Harness
5WPW10204705 Whirlpool Manifold Assembly
6WPW10206288 Whirlpool Valve Burner
6WPW10298678 Whirlpool Burner Valve
6VALVE-BRNR
7WPW10276470 Whirlpool Dishwasher Support Bracket
8WP8273062 Whirlpool Screw
9W10295050 Whirlpool Gas Tubing Assembly
10SCREW
11W10295055 Whirlpool Gas Tubing
12W10319059 Whirlpool Support Bracket
17MODULE, SPARK
19W10407677 Whirlpool Surface Igniter
19WPW10407676 Whirlpool Surface Igniter
20WPW10276466 Whirlpool Support Bracket
21SCREW
22Screw
23W10636384 Whirlpool Extension
24W10324366 Whirlpool Shield
25W10217535 Whirlpool Screw
2698017516 Whirlpool Mounting Bracket
