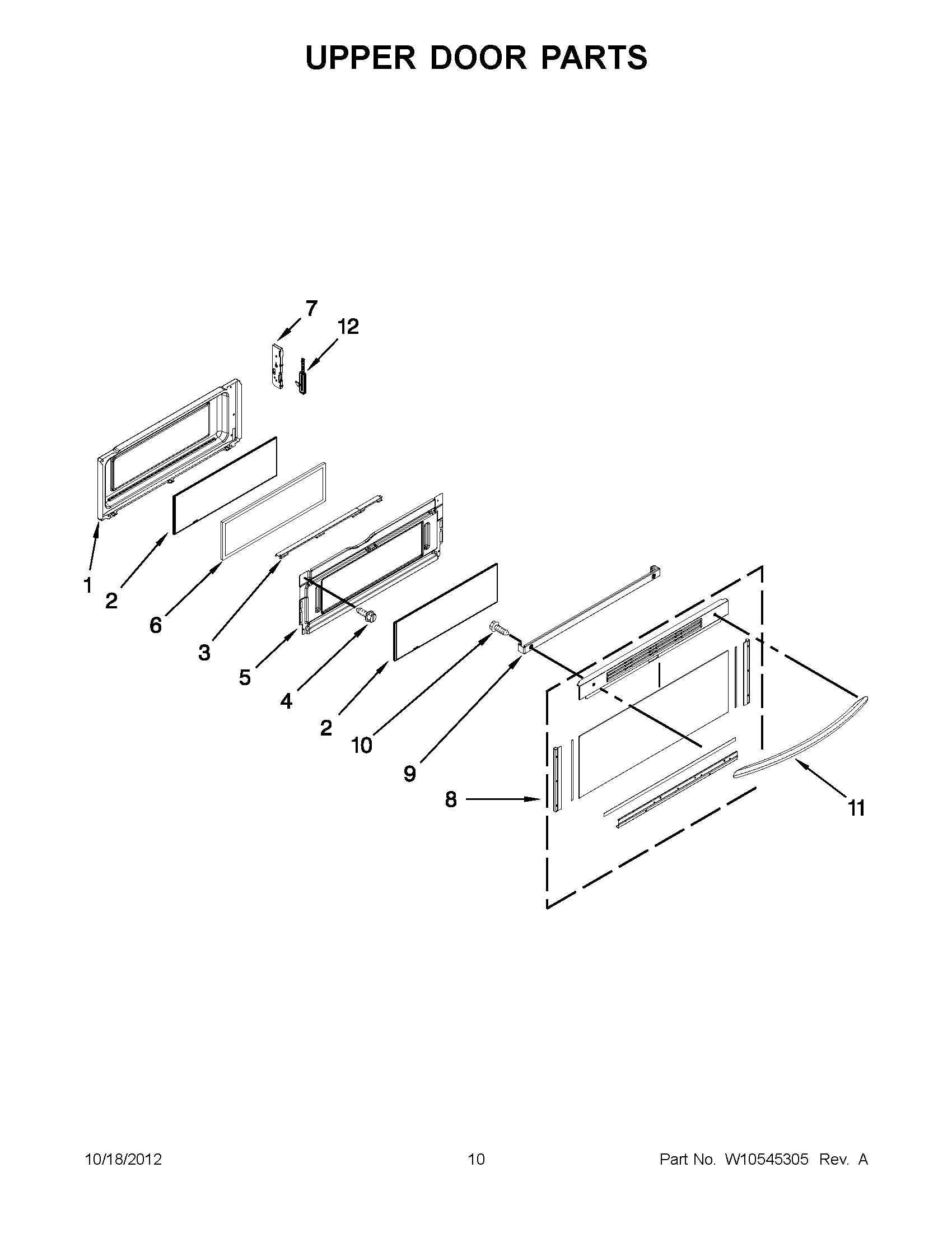

KDRS505XSS03 05 – UPPER DOOR PARTS

Products

Position	Product
1	W11103615 Whirlpool Door Liner
2	W11132120 Whirlpool Glass Door
3	WPW10272708 Whirlpool Window Frame
4	WPW10292297 Whirlpool Screw
5	W10485723 Whirlpool Retainer
6	WPW10321271 Whirlpool Insulation Assembly
7	W10277006 Whirlpool Hinge Receiver
8	ASSEMBLY, DOOR GLASS (STAINLESS)
9	W10645182 Whirlpool Mounting Bracket
10	WPW10132940 Whirlpool Dishwasher Screw
11	WPW10289076 Whirlpool Door Handle
12	WPW10485732 Whirlpool Door Hinge
12	WPW10485733 Whirlpool Door Hinge
