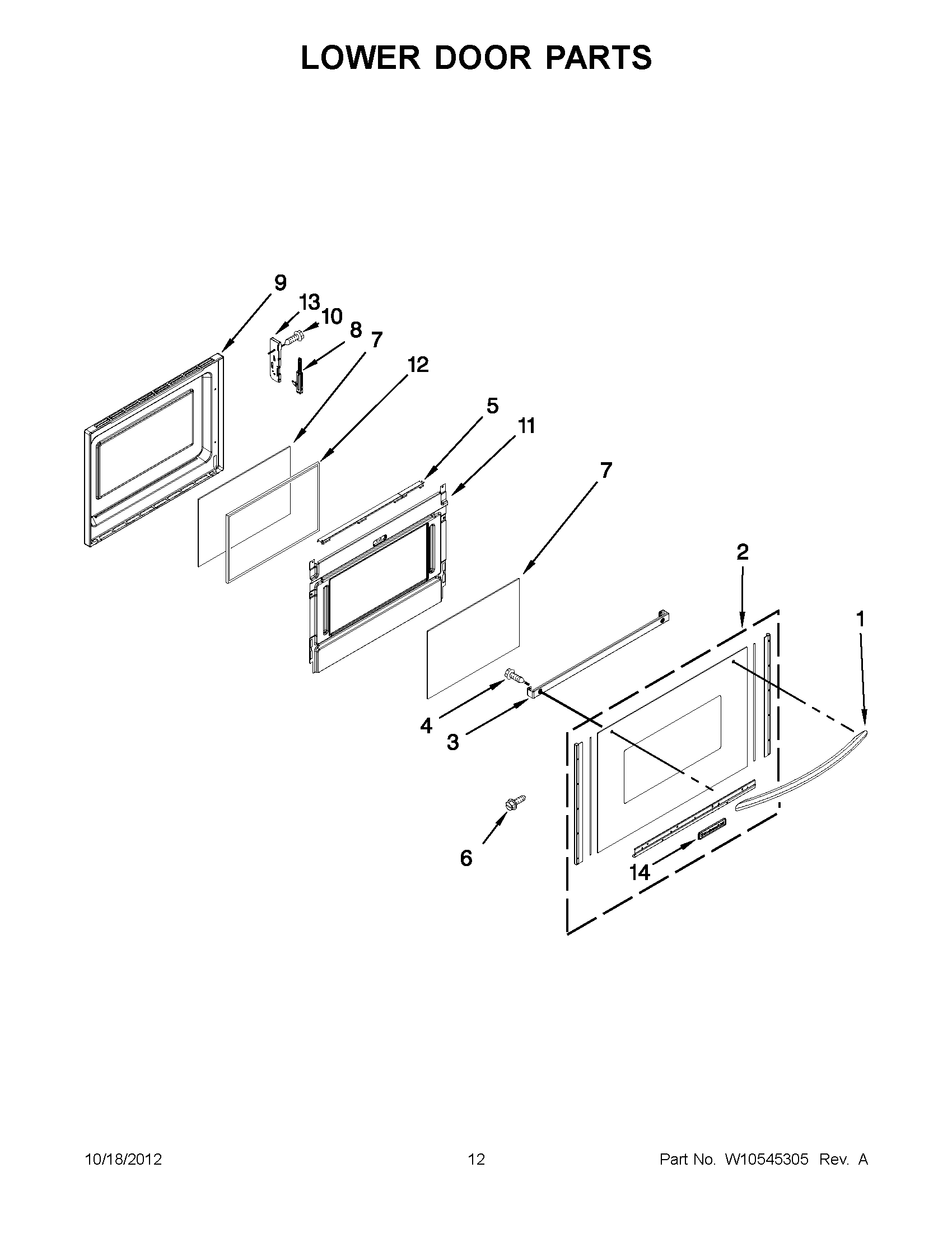

KDRS505XSS03 06 – LOWER DOOR PARTS

KDRS505XSS03 06 – LOWER DOOR PARTS

Written by

in

KDRS505XSS03 06 – LOWER DOOR PARTS

Products

PositionProduct
1WPW10289076 Whirlpool Door Handle
2ASSEMBLY, DOOR GLASS (STAINLESS)
3W10645182 Whirlpool Mounting Bracket
4WPW10132940 Whirlpool Dishwasher Screw
5WPW10272594 Whirlpool Window Frame
6WPW10292297 Whirlpool Screw
7WP9757706 Whirlpool Door Inner Glass
8WPW10335433 Whirlpool Door Hinge
8WPW10335434 Whirlpool Door Hinge
9WPW10292008 Whirlpool Door Liner
10WP4449743 Whirlpool Screw
11W10340464 Whirlpool Retainer
12INSULATION, DOOR
13WPW10272328 Whirlpool Hinge Receptacle
13WPW10272329 Whirlpool Hinge Receptacle
14WPW10243391 Whirlpool Refrigerator Nameplate
