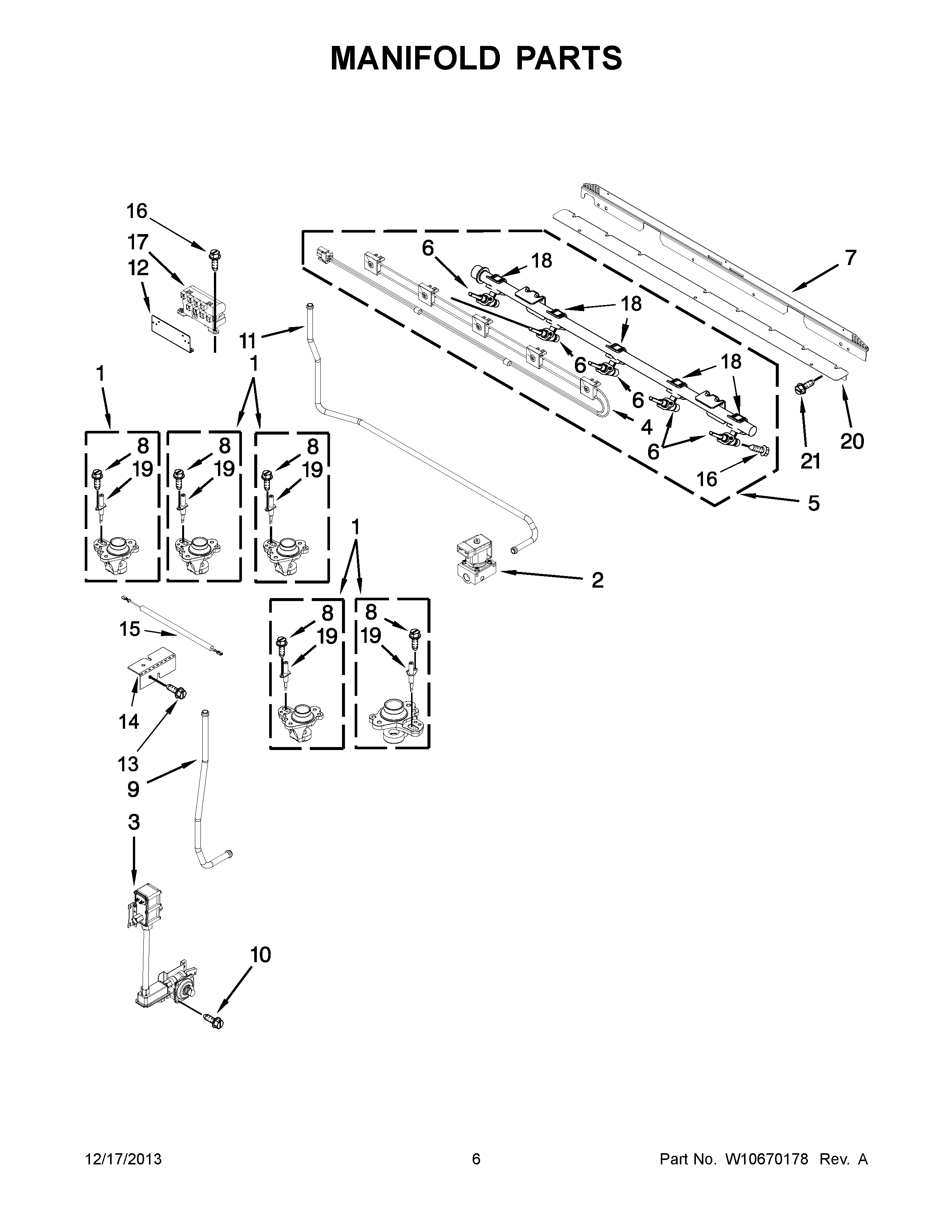

KDRS505XSS04 04 – MANIFOLD PARTS

Products

Position	Product
NI	W11674161 Whirlpool Range Orifice Spud
NI	CABINET (NOT A SERVICEABLE PART)
1	HOLDER, ORIFICE (12K) (RIGHT FRONT)
1	WPW10319347 Whirlpool Orifice Holder
1	WPW10273139 Whirlpool Orifice Holder
1	WPW10273135 Whirlpool Orifice Holder
1	WPW10273133 Whirlpool Orifice Holder
2	W10911971 Whirlpool Solenoid Valve
3	W10582429 Whirlpool Gas Valve
4	WPW10204718 Whirlpool Wire Harness
5	WPW10204705 Whirlpool Manifold Assembly
6	VALVE-BRNR
6	WPW10206288 Whirlpool Valve Burner
6	WPW10298678 Whirlpool Burner Valve
7	WPW10276470 Whirlpool Dishwasher Support Bracket
8	WP8273062 Whirlpool Screw
9	W10524331 Whirlpool Gas Tubing
10	SCREW
11	W10295055 Whirlpool Gas Tubing
12	W10319059 Whirlpool Support Bracket
13	W10217535 Whirlpool Screw
14	W10324366 Whirlpool Shield
15	W10636384 Whirlpool Extension
16	WPL 7101P62460
17	MODULE, SPARK
18	98017516 Whirlpool Mounting Bracket
19	WPW10407676 Whirlpool Surface Igniter
19	W10407677 Whirlpool Surface Igniter
20	WPW10276466 Whirlpool Support Bracket
21	SCREW
