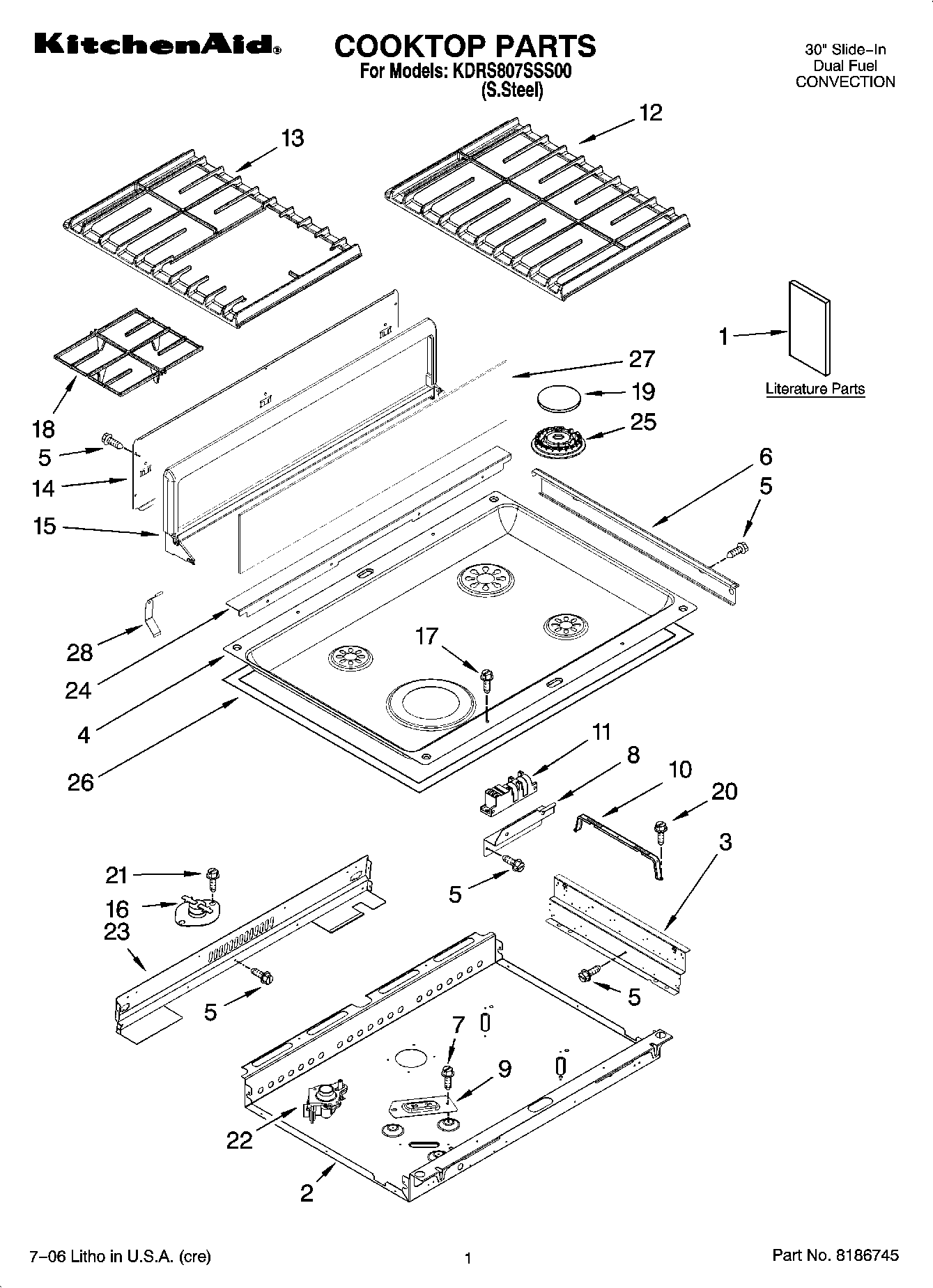

KDRS807SSS00 01 – COOKTOP PARTS

Products

Position	Product
1	Installation Instructions
1	Easy Set Guide
1	Tech Sheet
1	Safe Cooking Tips (French)
1	Anti-Tip Instruct.
1	Safe Cooking Tips
1	Use & Care Guide
2	Burner Box
3	Bracket, Mounting
4	Cooktop
5	WP3196557 Whirlpool Screw
6	Trim, Cooktop (Left)
6	Trim, Cooktop (Right)
7	WP12990527 Whirlpool Microwave Screw
8	Bracket, Spark Module
9	Bracket, Burner
10	WP9756821 Whirlpool Support
11	WPW10110491 Whirlpool Spark Module
12	Grate, Burner (RH)
13	Grate, Burner (LH)
14	Panel, Backsplash
15	Backsplash
15	Gasket, Backsplash
16	WP9759944 Whirlpool Thermostat
17	Screw
18	GRATE-BRNR
19	WP8284669 Whirlpool Burner Cap
19	9761563CB Whirlpool Burner Cap
20	WP4449809 Whirlpool Screw
21	W10491985 Whirlpool Screw
22	WPW10128455 Whirlpool Orifice Holder
22	WPW10128446 Whirlpool Orifice Holder
23	Cover, Cooktop Rear
24	WP9763436 Whirlpool Rear Cover
25	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
25	WPW10406243 Whirlpool Burner Head Auxiliary 6K
26	Gasket
27	Glass, Backsplash
28	Clip, Retainer (3)
