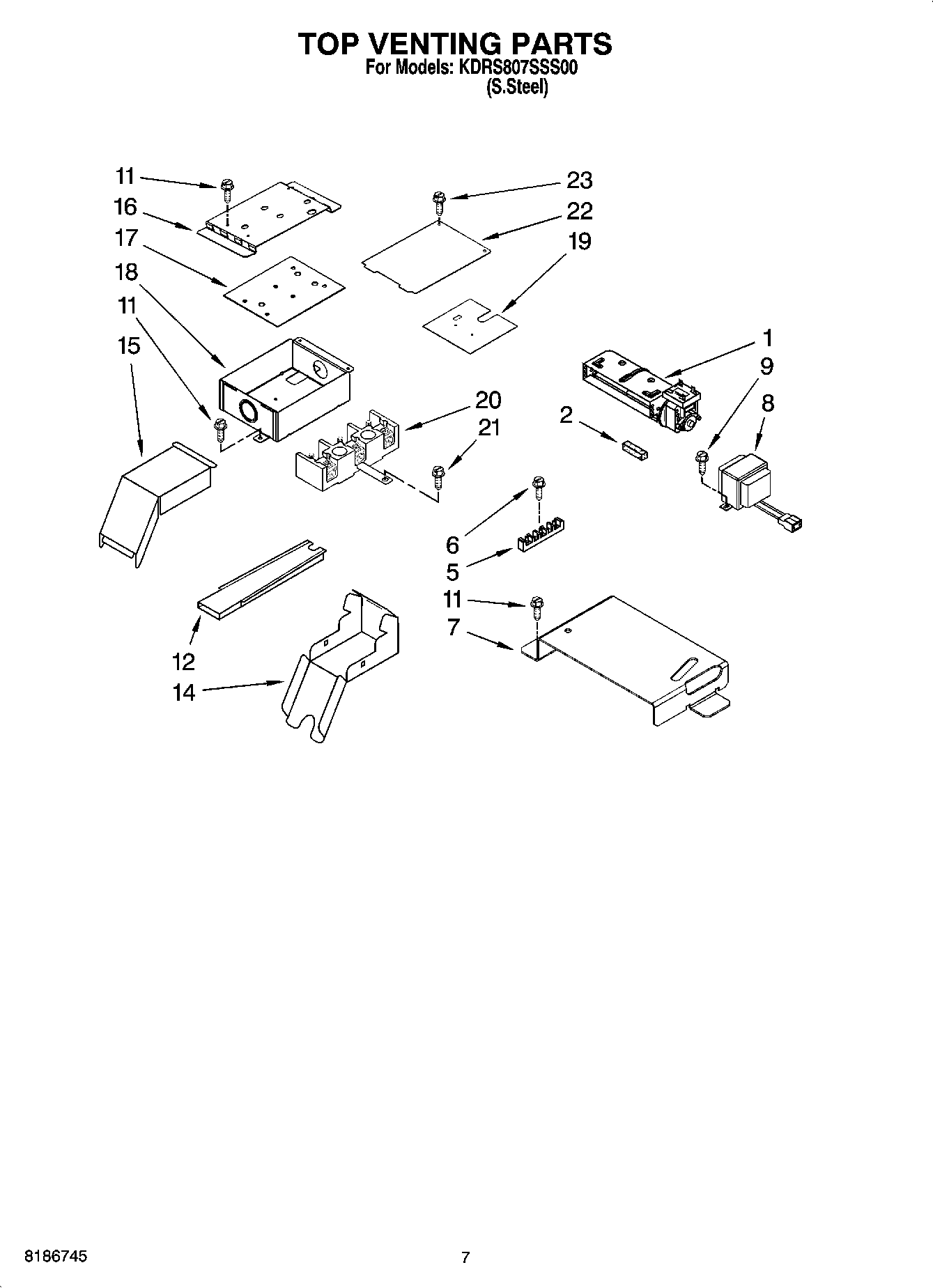

KDRS807SSS00 04 – TOP VENTING PARTS

Products

Position	Product
1	W10810687 Whirlpool Blower Assembly
2	W10491987 Whirlpool Foam Seal
5	WP8203546 Whirlpool Terminal Block
6	Screw
7	WP9757829 Whirlpool Mounting Bracket
8	WPW10111628 Whirlpool Transformer
9	WP3196557 Whirlpool Screw
11	WP4449809 Whirlpool Screw
12	4451759 Whirlpool Oven Exhaust Vent
14	4455177 Whirlpool Oven Bottom Elbow
15	4455178 Whirlpool Oven Top Elbow
16	Bracket, Term.Box
17	Insulation
18	W10115858 Whirlpool Box Terminal
19	9759721 Whirlpool Oven Insulator
20	WP9761958 Whirlpool Range Terminal Block
21	Screw
22	Cover, Term Box
23	W10491985 Whirlpool Screw
