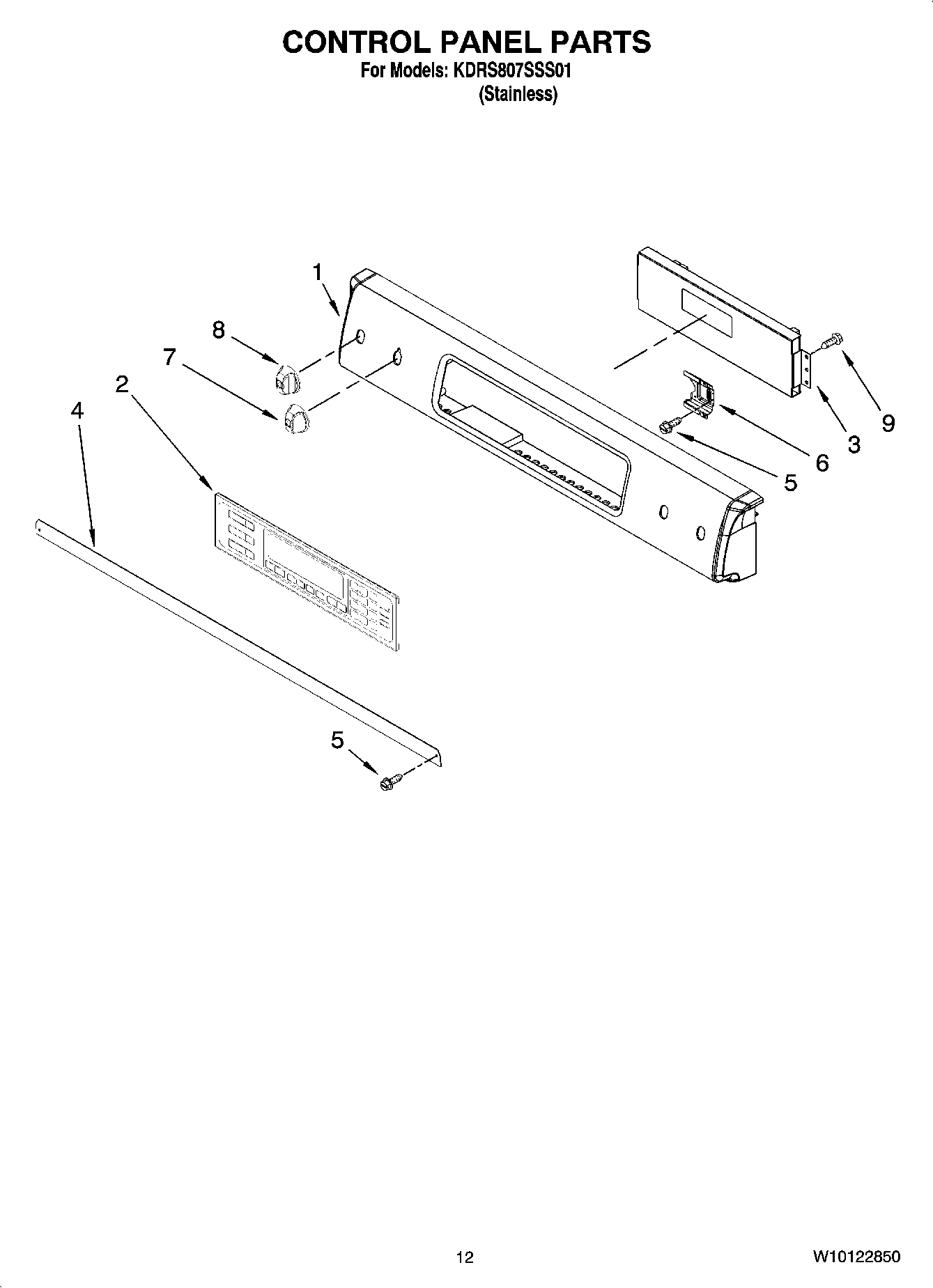

KDRS807SSS01 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	WPL W10118725
	WP4455352 Whirlpool Mounting Bracket
	WPL 591014
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	261900 Whirlpool Microwave Spray
	9763481 Whirlpool Oven Wire Harness
	HARNESS, COMMUNICATION
	Miscellaneous
	WIRING HARNESS PARTS
	ADHESIVE
	W10110729 Whirlpool Wire Harness
	W10851603 Whirlpool Orifice
	9757426 Whirlpool Oven LP Conversion Kit
	9756921 Whirlpool Oven Wire Harness
	SPLICING WIRES–25FT. LENGTH
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	285006 Whirlpool Spray
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP3400015 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	72032 Whirlpool Touch Up Paint Black
	Spacer, Harness
	Conduit
	242831 Whirlpool Oven Wire
	Clip, Ground Wire
	W11209404 Whirlpool Wire Harness
	W11447673 Whirlpool Range Tip Anchor
	WP261869 Whirlpool Microwave Paint
	WP482338 Whirlpool Refrigerator Adhesive
	Wire (14 Ga. 150 c Blue)
1	Control Panel
2	WP9761566 Whirlpool Membrane Switch
3	Control, Interface
4	Shield, Console Vent
5	WP3196557 Whirlpool Screw
6	Bracket, Thermostat (2)
7	W10130386 Whirlpool Knob Assembly
8	Knob (LR, RF, RR)
9	Screw
