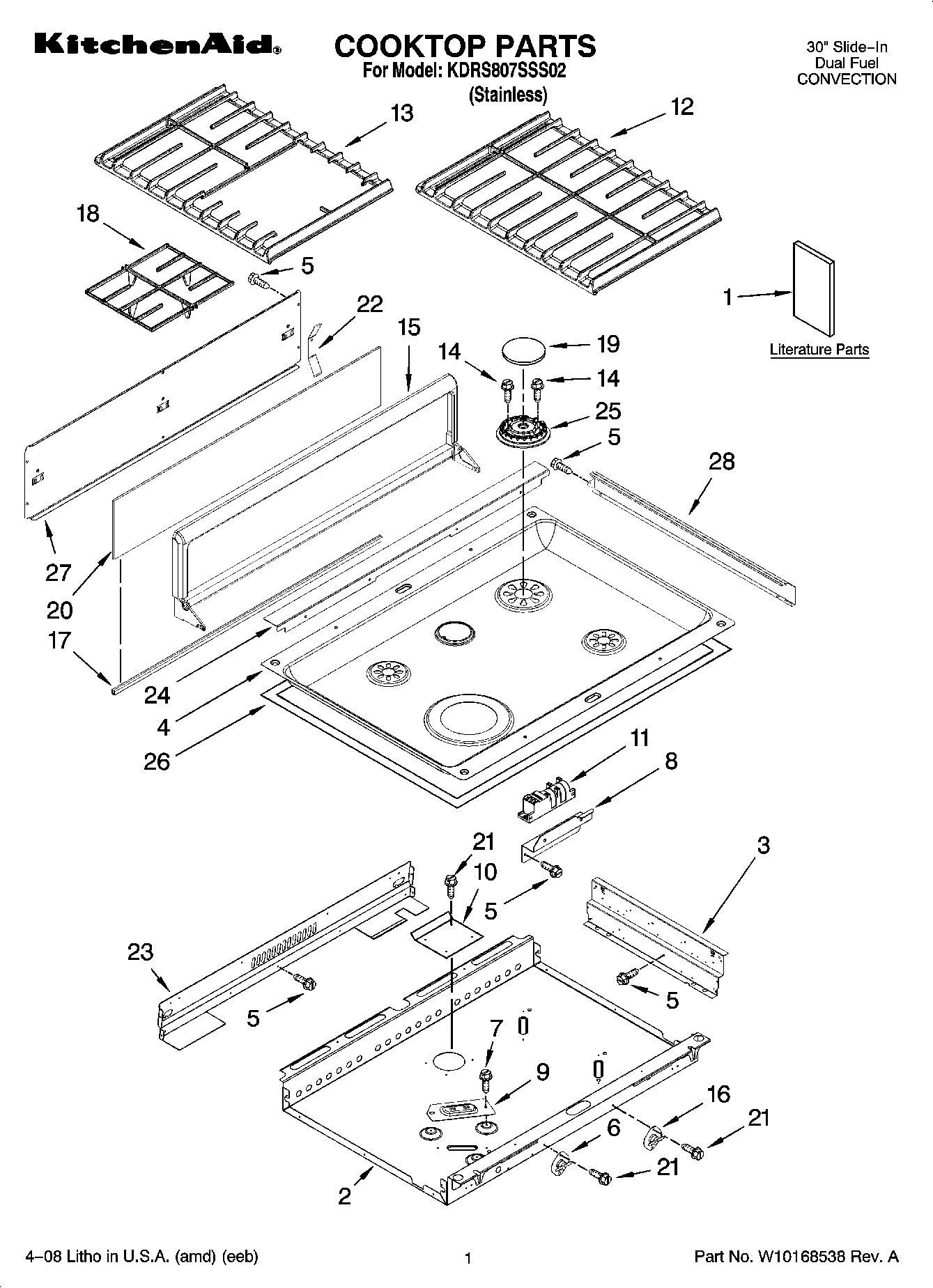

KDRS807SSS02 01 – COOKTOP PARTSadmin2025-04-26T10:28:13+00:00KDRS807SSS02 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Installation Instructions |
| 1 | Tech Sheet |
| 1 | Easy Set Guide |
| 1 | SAFER COOKING TIPS (ENGLISH |
| 1 | Safer Cooking Tips (French) |
| 1 | Use & Care Guide |
| 1 | Anti-Tip Instruct. |
| 2 | Burner Box |
| 3 | Bracket, Mounting |
| 4 | Cooktop |
| 5 | WP3196557 Whirlpool Screw |
| 6 | WP9757807 Whirlpool High Limit Thermostat |
| 7 | WP12990527 Whirlpool Microwave Screw |
| 8 | Bracket, Spark Module |
| 9 | Bracket, Burner |
| 10 | Shield, Heat |
| 11 | WPW10110491 Whirlpool Spark Module |
| 12 | Grate, Burner (RH) |
| 14 | WP3368921 Whirlpool Screw |
| 15 | Backsplash |
| 16 | WP9759944 Whirlpool Thermostat |
| 17 | Gasket, Backsplash |
| 18 | GRATE-BRNR |
| 19 | WP8284669 Whirlpool Burner Cap |
| 19 | 9761563CB Whirlpool Burner Cap |
| 20 | Glass, Backsplash |
| 21 | W10491985 Whirlpool Screw |
| 22 | Clip, Retainer (3) |
| 23 | Cover, Cooktop Rear |
| 24 | WP9763436 Whirlpool Rear Cover |
| 25 | WPW10406797 Whirlpool Range Burner Base (12K & 9.2K) |
| 25 | WPW10406243 Whirlpool Burner Head Auxiliary 6K |
| 26 | Gasket |
| 27 | Panel, Backsplash |
| 28 | Trim, Cooktop Left (Stainless) |
| 28 | Trim, Cooktop Right (Stainless) |
