KDRS807SSS02 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

KDRS807SSS02 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KDRS807SSS02 09 – CONTROL PANEL PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WIRING HARNESS PARTS
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
WPL 591014
WP4455352 Whirlpool Mounting Bracket
261900 Whirlpool Microwave Spray
9763481 Whirlpool Oven Wire Harness
HARNESS, COMMUNICATION
W10157935 Whirlpool Wire Harness
9756921 Whirlpool Oven Wire Harness
9757426 Whirlpool Oven LP Conversion Kit
W10851603 Whirlpool Orifice
WP9756824 Whirlpool Wire Harness
Miscellaneous
W10110729 Whirlpool Wire Harness
ADHESIVE
SPLICING WIRES–25FT. LENGTH
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
Wire, 25` Roll (Black 14 Ga.)
W11447673 Whirlpool Range Tip Anchor
W11209404 Whirlpool Wire Harness
Nut
WP3400015 Whirlpool Screw
WP4449809 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
242831 Whirlpool Oven Wire
Spacer, Harness
350930 Whirlpool White Spray Paint
Clip, Ground Wire
Wire, 25` Roll (Red 14 Ga.)

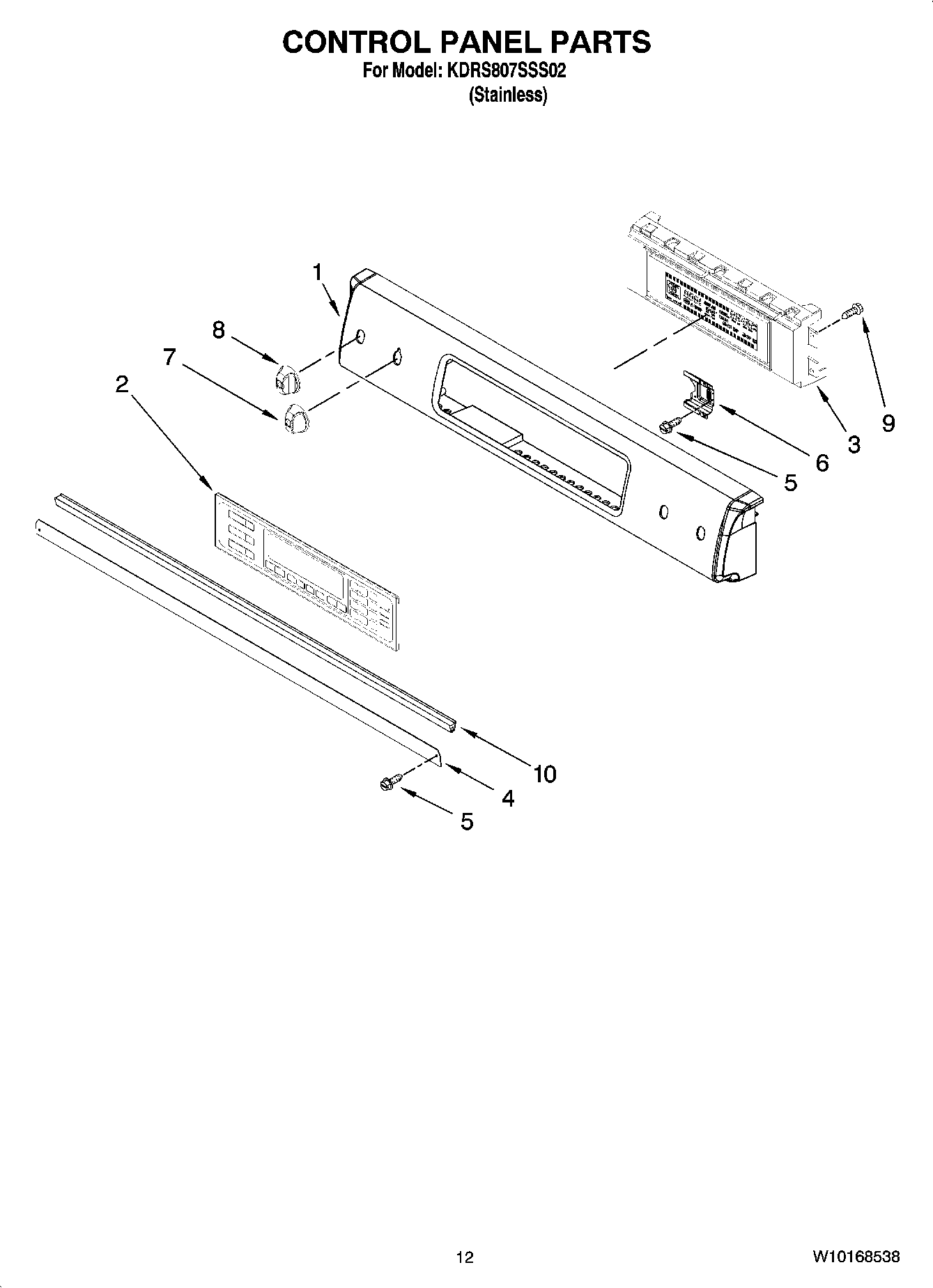

1Control Panel
2WP9761566 Whirlpool Membrane Switch
3Control, Electric
4Shield, Console Vent
5WP3196557 Whirlpool Screw
6Bracket, Thermostat (2)
7Knob (LF)
8WPW10156265 Whirlpool Knob
9Screw
10W10116195 Whirlpool Vent Gasket
