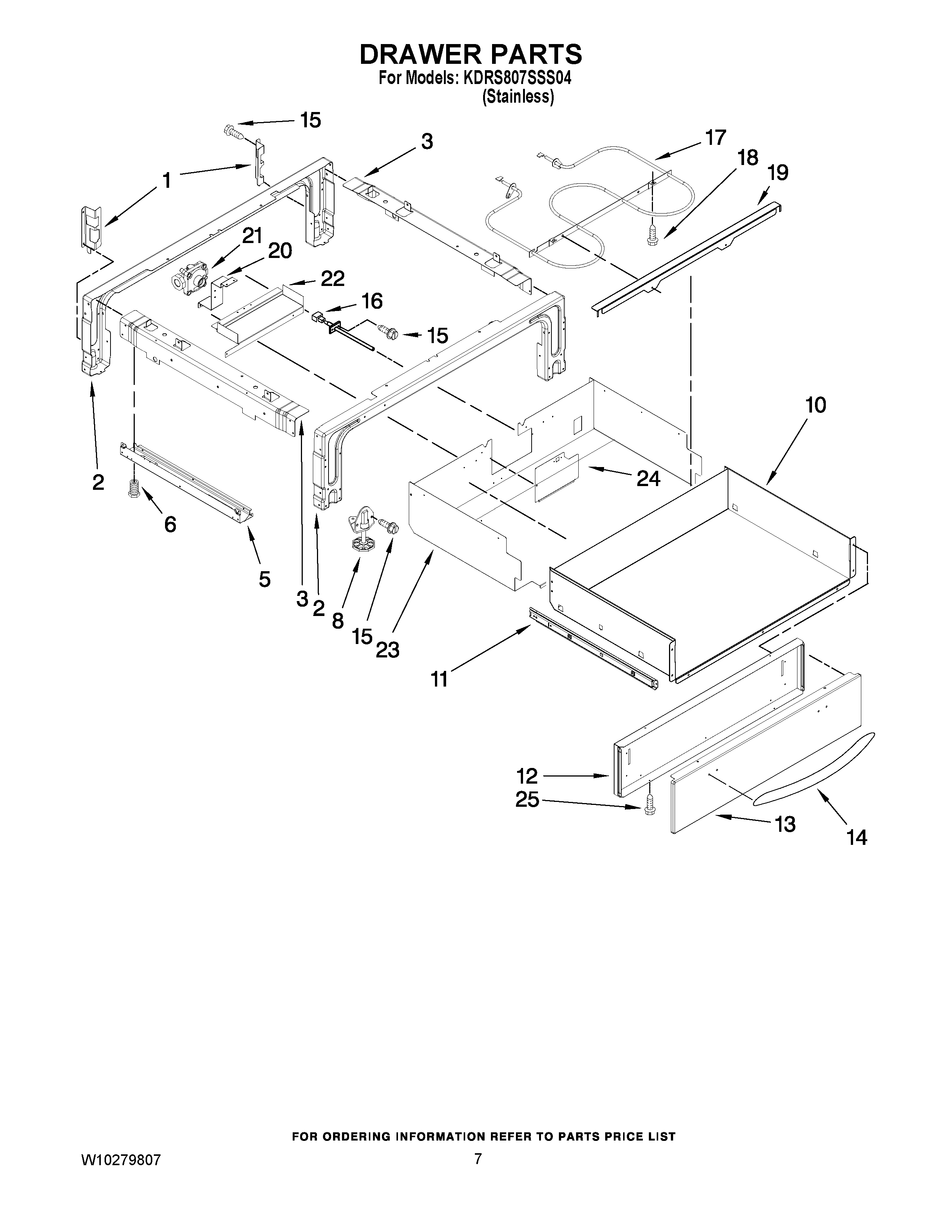

KDRS807SSS04 04 – DRAWER PARTS

KDRS807SSS04 04 – DRAWER PARTS

Written by

in

KDRS807SSS04 04 – DRAWER PARTS

Products

PositionProduct
1Support (L.Hand)
1Support (R.Hand)
2Support, Front & Rear
3Brace, Drawer (Right)
3Brace, Drawer (Left)
5Side, Base (R.Side)
5Side, Base (L.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
8WP3196037 Whirlpool Leveling Foot
10DRAWER
11WPW10155633 Whirlpool Drawer Slide Rail
11WPW10155632 Whirlpool Slide Drawer Assembly
12PANEL, DRAWER
13Front, Drawer (Stainless)
14Handle, Drawer (Stainless)
15WP3196557 Whirlpool Screw
16WP8274149 Whirlpool Sensor Assembly
17ELEMENT, WARMING DRAWER
18WP4449809 Whirlpool Screw
19Support, Element
20Bracket, Regulator
21Regulator
22Cover, Terminal
23Enclosure, Warming Drawer
24Cover, Access
25WP3400805 Whirlpool Screw Assembly
