KDRS807SSS04 09 – CONTROL PANEL PARTS

KDRS807SSS04 09 – CONTROL PANEL PARTS

Written by

in

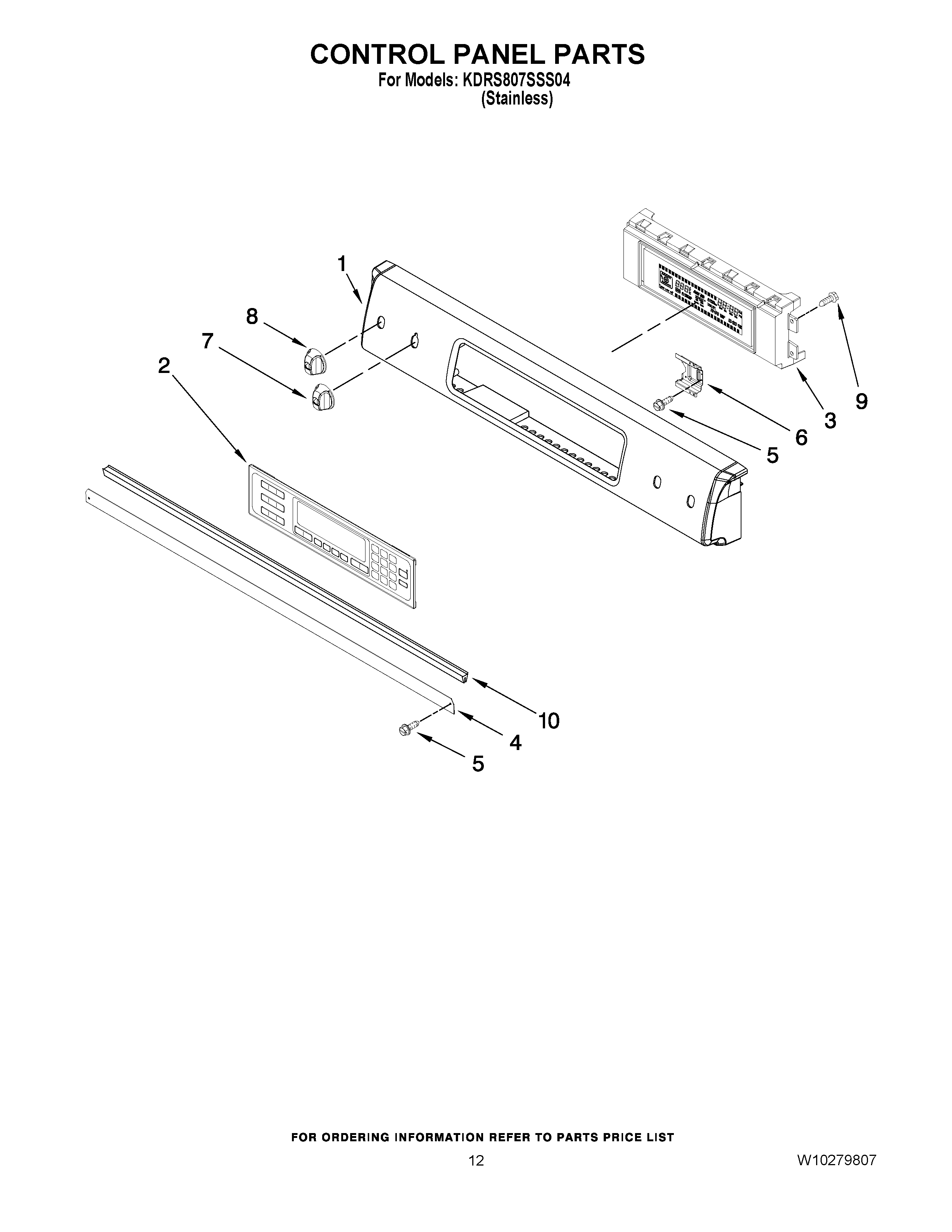

KDRS807SSS04 09 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel
2WP9761566 Whirlpool Membrane Switch
3Control, Electric
4Shield, Console Vent
5WP3196557 Whirlpool Screw
6Bracket, Thermostat (2)
7Knob (LF)
8WPW10156265 Whirlpool Knob
9Screw
10W10116195 Whirlpool Vent Gasket
←HA4010 Front Panel, Cabinet and Base
FGFB79GBE 11 – DOOR→
