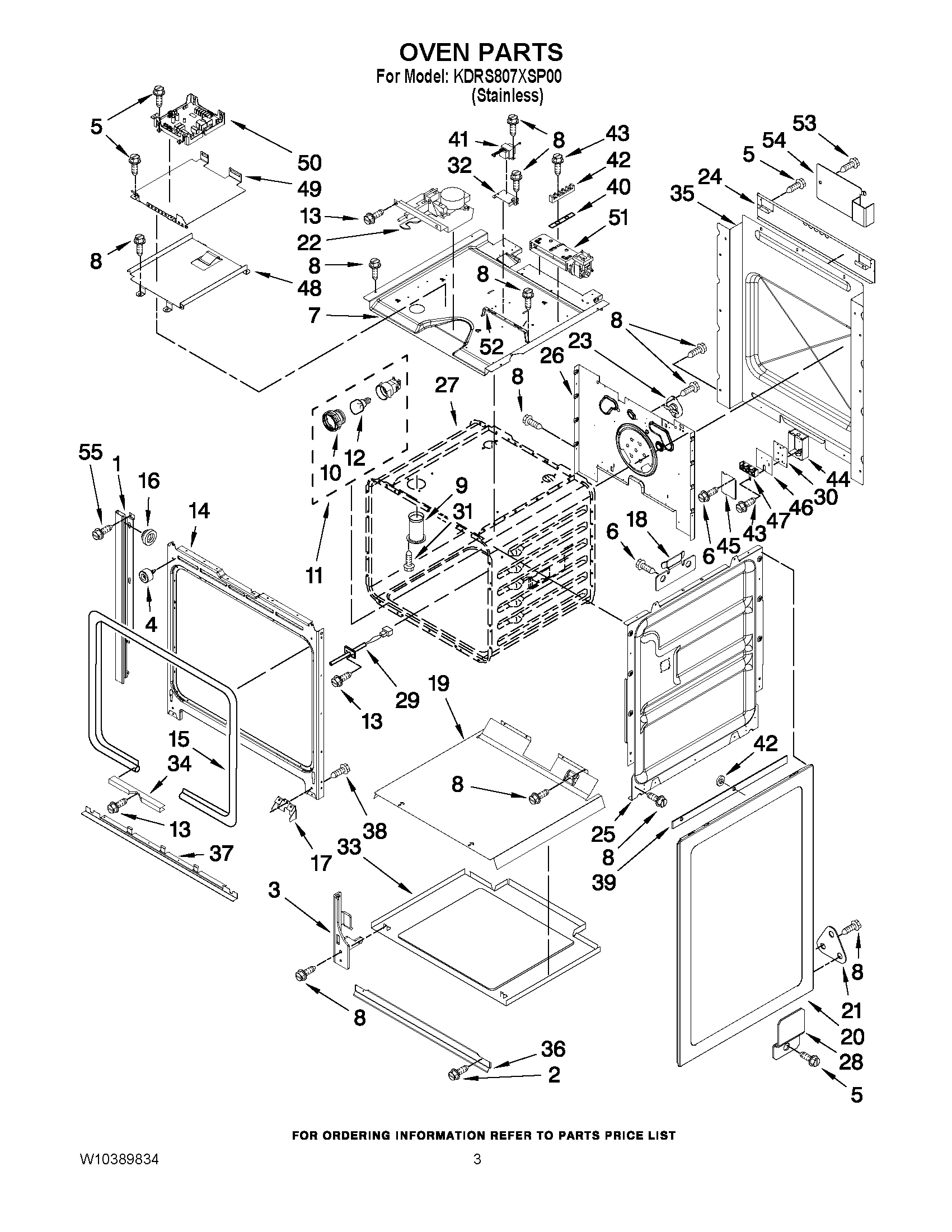

KDRS807XSP00 02 – OVEN PARTS

Products

Position	Product
NI	WPL 9756470
NI	WPL 9756817
1	TRIM, SIDE (RIGHT STAINLESS)
1	TRIM, SIDE (LEFT STAINLESS)
2	WP3400832 Whirlpool Screw
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
6	W10491985 Whirlpool Screw
7	Top Chassis
8	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4449154 Whirlpool Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	WP4448444 Whirlpool Grommet
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	Support, Insulation
20	BODY, SIDE
21	BRACKET,SIDE PANEL
22	WPW10195934 Whirlpool Door Latch
23	WP9759242 Whirlpool Thermostat
24	Brace, Side Panel
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	Clip, Side Panel
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Insulation
31	SCREW
32	WP9757829 Whirlpool Mounting Bracket
33	Base, Chassis
34	WP4448933 Whirlpool Retainer
35	WPL 9758583
36	Vent, Bottom Upper (Stainless)
37	Vent, Bottom Lower (Stainless)
38	WP4449743 Whirlpool Screw
39	WPL 9759722
40	WPL 9759885
41	WPW10111628 Whirlpool Transformer
42	WPL 9760481
43	Screw
44	W10115858 Whirlpool Box Terminal
45	Cover, Term Box
46	9759721 Whirlpool Oven Insulator
47	WPW10245259 Whirlpool Terminal Block
48	Bracket, GOC
49	W10083460 Whirlpool Slide Assembly
50	APPLIANCE, MANAGER
51	W10810687 Whirlpool Blower Assembly
52	WP9756821 Whirlpool Support
54	Cover, Rear Standoff
55	WP3196557 Whirlpool Screw
