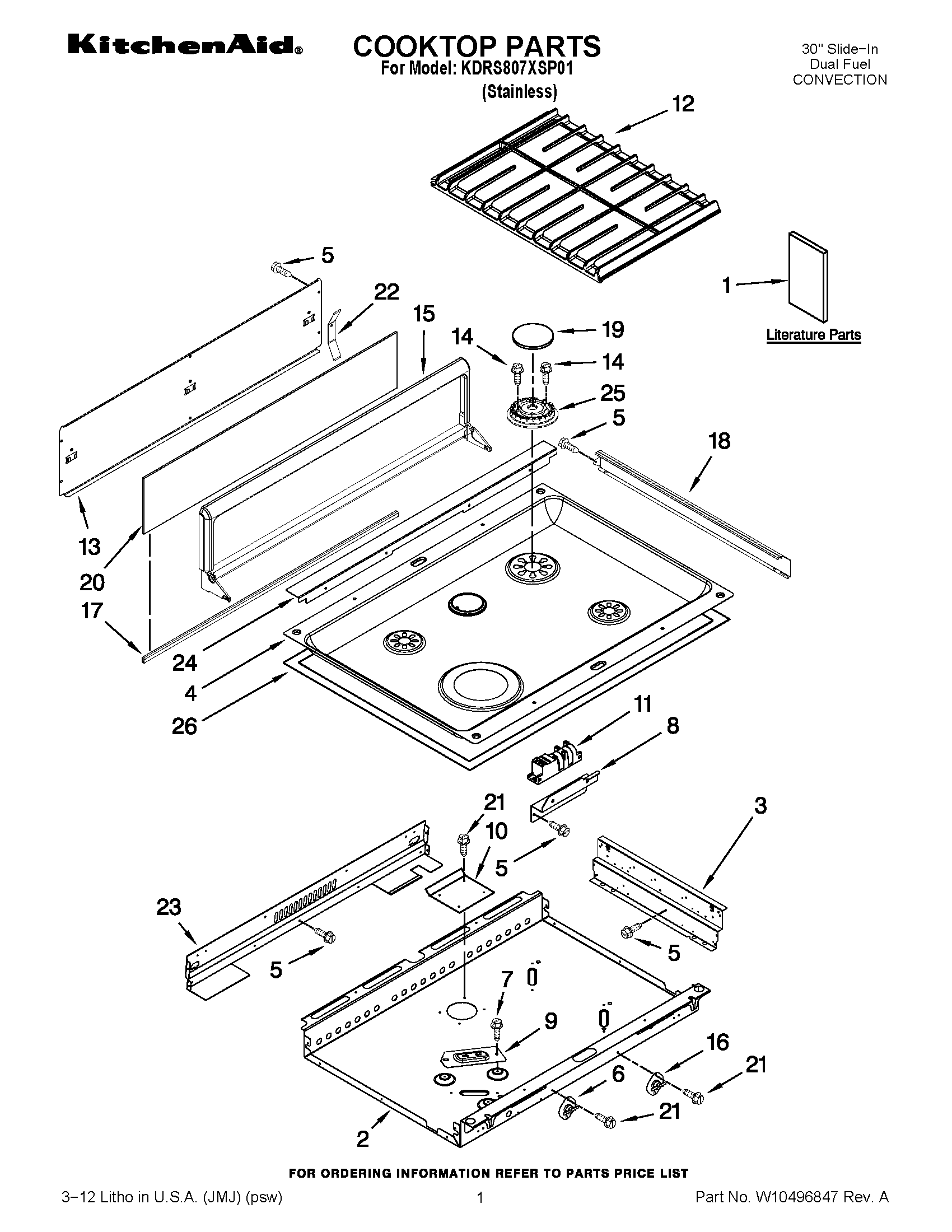

KDRS807XSP01 01 – COOKTOP PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1Easy Set Guide
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Tech Sheet
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2BURNER BOX
3Bracket, Mounting
4Cooktop
5WP3196557 Whirlpool Screw
6WP9757807 Whirlpool High Limit Thermostat
7WP12990527 Whirlpool Microwave Screw
8Bracket, Spark Module
9Bracket, Burner
10Shield, Heat
11WPW10110491 Whirlpool Spark Module
12KIT, GRATE
13Panel, Backsplash
14WP3368921 Whirlpool Screw
15Backsplash
16WP9759944 Whirlpool Thermostat
17Gasket, Backsplash
18Trim, Cooktop Right (Stainless)
18Trim, Cooktop Left (Stainless)
20Glass, Backsplash
21W10491985 Whirlpool Screw
22Clip, Retainer (3)
23Cover, Cooktop Rear
24WP9763436 Whirlpool Rear Cover
25WPW10406243 Whirlpool Burner Head Auxiliary 6K
25WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
26Gasket
