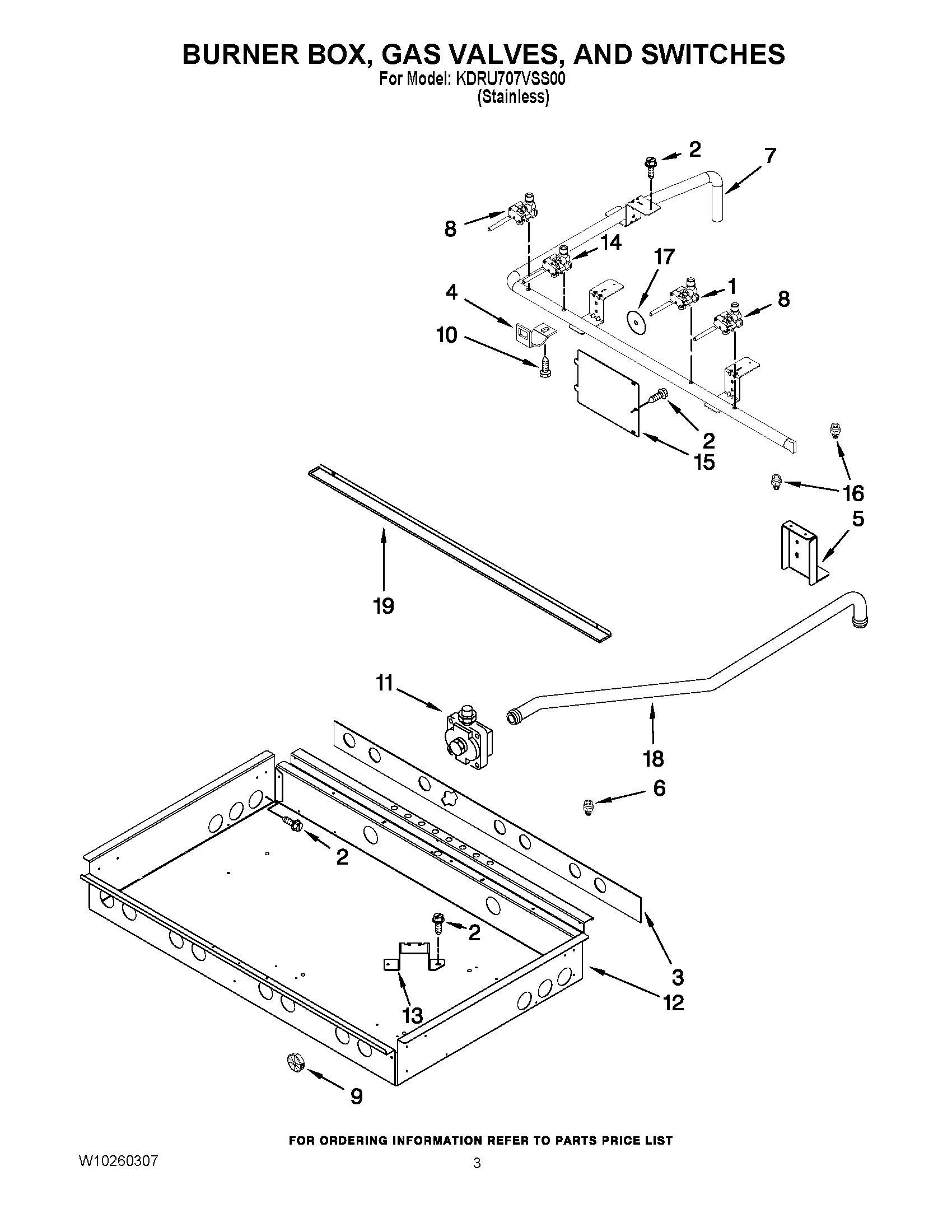

KDRU707VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LEFT REAR)
NIW10115911 Whirlpool Gas Tubing
NIW10115910 Whirlpool Gas Tubing
NIW10280797 Whirlpool Gas Tubing
1WPW10385583 Whirlpool Burner Valve
2SCREW
3INSULATION, BURNER BOX
4W10189107 Whirlpool Mounting Bracket
5W10115850 Whirlpool Mounting Bracket
64453115 Whirlpool Oven Adapter
7W10115891 Whirlpool Manifold
8WPW10326645 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10293267 Whirlpool Regulator Assembly
12BURNER BOX
13BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
13BRACKET, BURNER (RIGHT REAR)
14WPW10371235 Whirlpool Burner Valve
15W10115843 Whirlpool Access Cover
164453116 Whirlpool Oven Adapter
17W10189177 Whirlpool Seal Switch
18W10269191 Whirlpool Gas Tubing
19DRIP, TRAY
