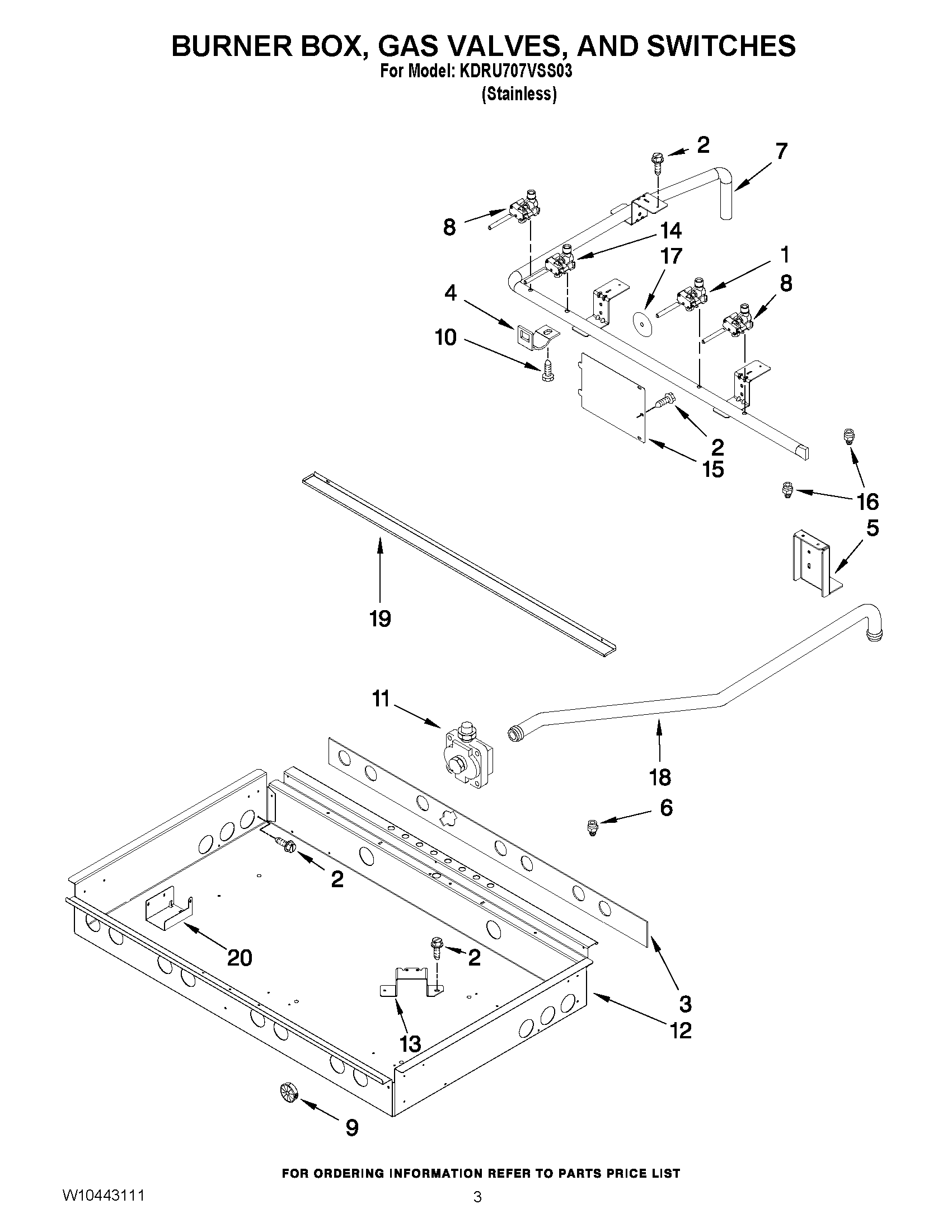

KDRU707VSS03 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBE, RAPID
NIWPW10353133 Whirlpool Gas Tubing
NIW10353154 Whirlpool Gas Tubing
NIW10353141 Whirlpool Gas Tubing Assembly
NIW10280797 Whirlpool Gas Tubing
1WPW10385583 Whirlpool Burner Valve
2SCREW
3INSULATION, BURNER BOX
4W10189107 Whirlpool Mounting Bracket
5W10115850 Whirlpool Mounting Bracket
64453115 Whirlpool Oven Adapter
7W10115891 Whirlpool Manifold
8WPW10371235 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10293267 Whirlpool Regulator Assembly
12BOX, BURNER
13W10369547 Whirlpool Mounting Bracket
14WPW10385582 Whirlpool Burner Valve
15W10115843 Whirlpool Access Cover
164453116 Whirlpool Oven Adapter
17W10423373 Whirlpool Switch Seal
18W10269191 Whirlpool Gas Tubing
19DRIP, TRAY
20BRACKET, STEAM VALVE
