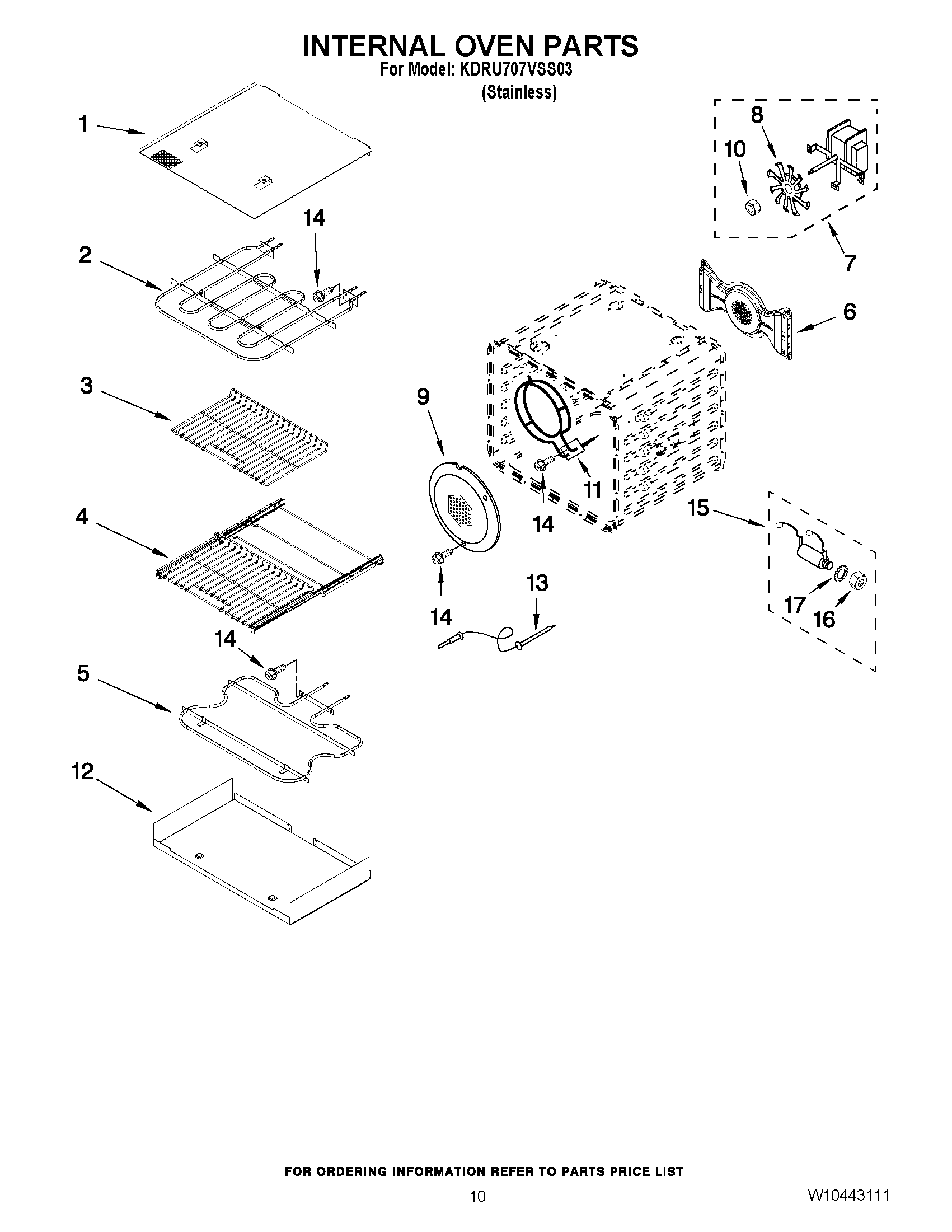

KDRU707VSS03 07 – INTERNAL OVEN PARTS

KDRU707VSS03 07 – INTERNAL OVEN PARTS

Written by

in

KDRU707VSS03 07 – INTERNAL OVEN PARTS

Products

PositionProduct
1SHIELD, ELEMENT BROIL
2W10115994 Whirlpool Broil Element
3W11550107 Whirlpool Oven Rack
4W11186364 Whirlpool Oven Rack
5ELEMENT, HIDDEN BAKE
6BAFFLE, CONVECTION
7W10794022 Whirlpool Oven Cooktop Fan Motor
8W10758272 Whirlpool Convection Fan
9W10261523 Whirlpool Plate
10WPW10116349 Whirlpool Nut
11W10116434 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14SCREW
15W10150011 Whirlpool Probe Jack
16WP9755546 Whirlpool Locknut
17WP9755547 Whirlpool Lockwasher
