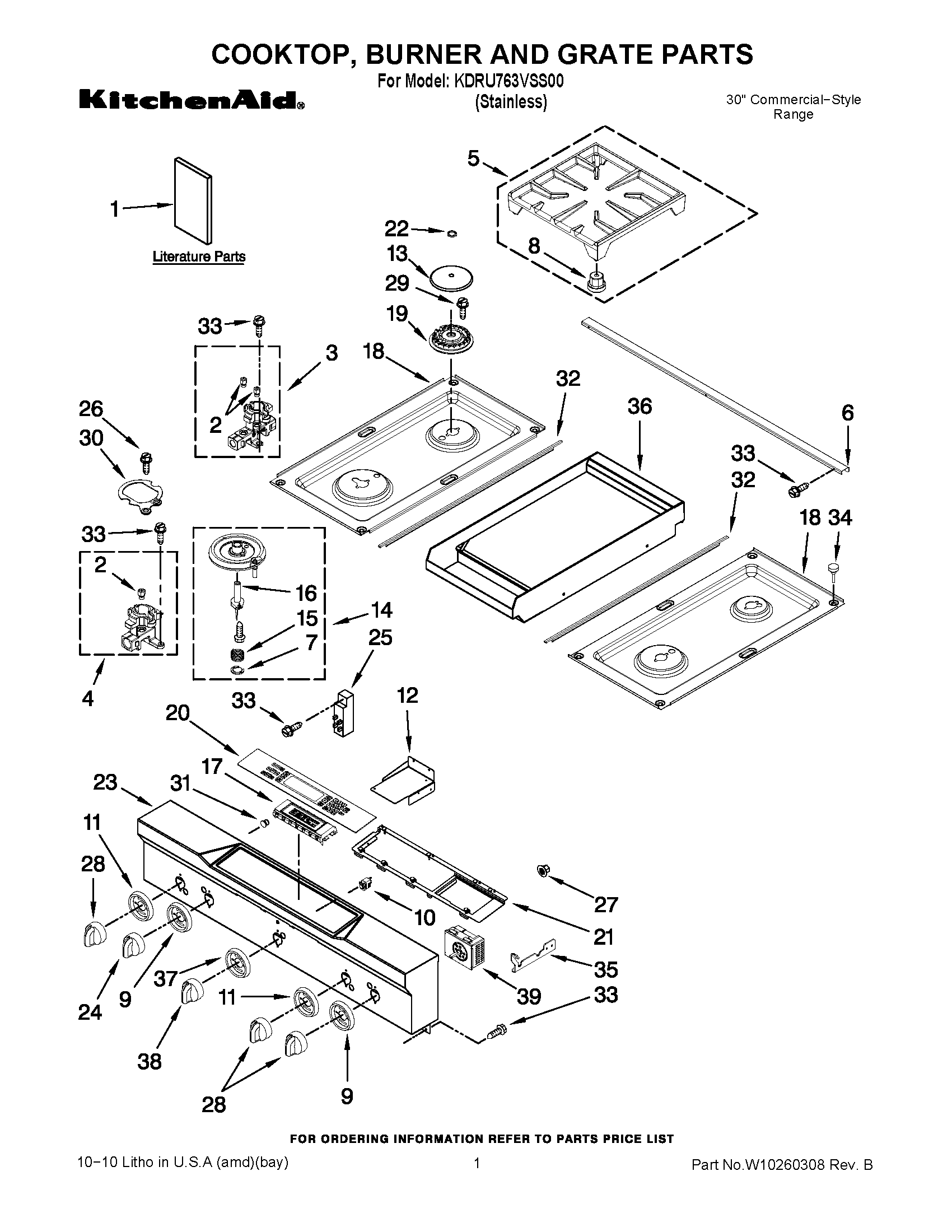

KDRU763VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

KDRU763VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRU763VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET (ENGLISH)
1TECH SHEET (FRENCH)
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2ORIFICE (LEFT FRONT, HIGH)
2ORIFICE (LEFT FRONT, LOW)
2ORIFICE (LEFT REAR & RIGHT FRONT)
2W10791075 Whirlpool Orifice Spud
3WPW10160187 Whirlpool Orifice Holder
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
4W10282659 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7CLIP, ELECTRODE (DUAL)
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10116151 Whirlpool Indicator Light
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13WP8286816 Whirlpool Burner Cap
13WPW10115952 Whirlpool Burner Cap
13WPW10160229 Whirlpool Burner Cap
14ASSEMBLY, BURNER BASE (LEFT REAR & RIGHT FRONT)
14WPW10320937 Whirlpool Burner Top
15SPRING, ELECTRODE (LEFT FRONT, LEFT REAR & RIGHT FRONT)
158286863 Whirlpool Oven Clip
16WPW10250406 Whirlpool Surface Igniter
16WPW10160235 Whirlpool Surface Igniter
16WPW10145991 Whirlpool Surface Igniter
17MODULE, USER INTERFACE
18W10282192 Whirlpool Cooktop Assembly
18COOKTOP (LEFT)
19HEAD, BURNER (LEFT REAR & RIGHT FRONT)
19WPW10250459 Whirlpool Burner Head
19BURNR-HEAD
20KEYPAD
21BRACKET USER INTERFACE
22W10115953 Whirlpool Nut
23ASSEMBLY, CONSOLE
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
268286930 Whirlpool Oven Gasket
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
30W10491985 Whirlpool Screw
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
344448520 Whirlpool Oven Bumper
35W10130759 Whirlpool Mounting Bracket
35W10130760 Whirlpool Bracket Mounting
36W10625221 Whirlpool Module
37W10261515 Whirlpool Knob Bezel
38W10250390 Whirlpool Knob
39WPW10116113 Whirlpool Infinite Switch
