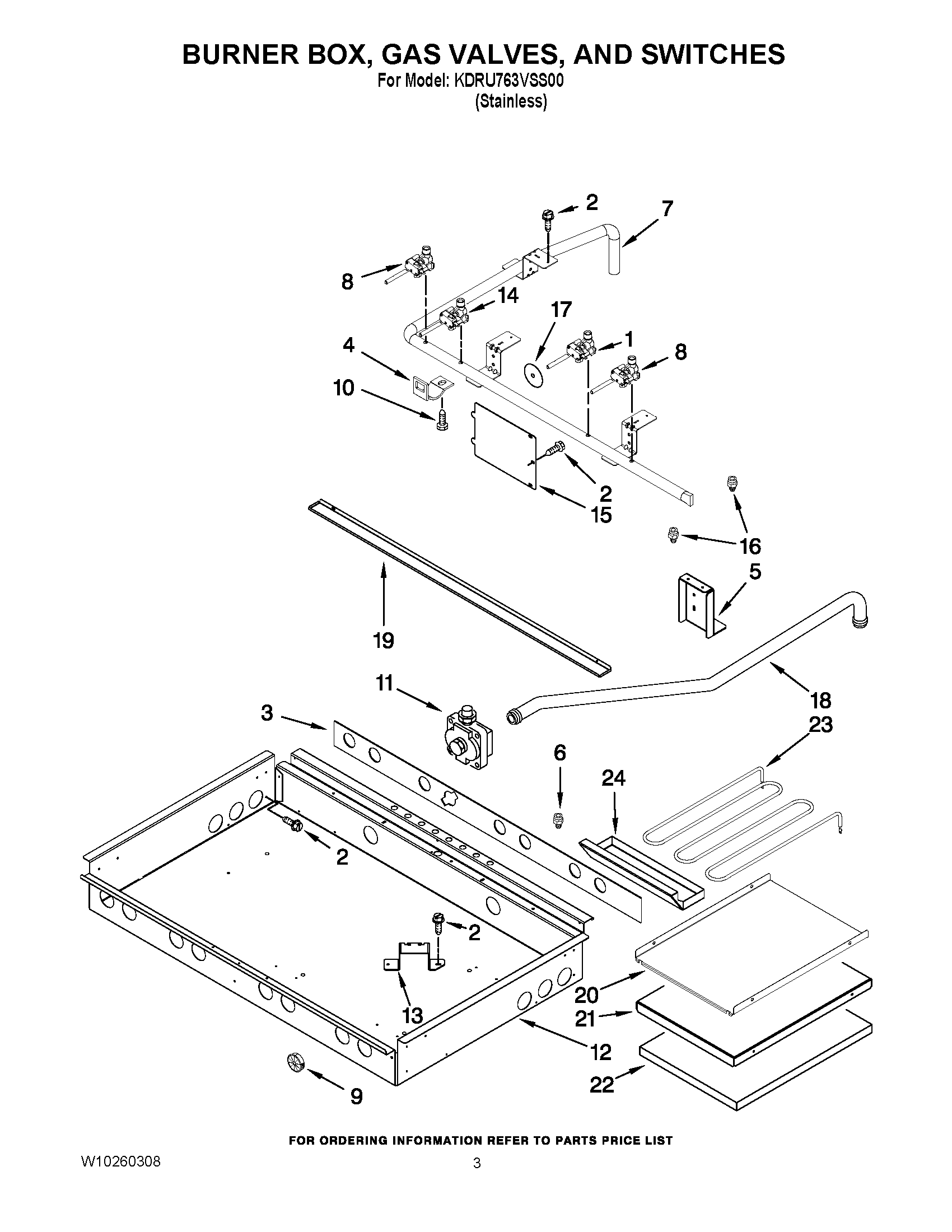

KDRU763VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NITUBING, GAS (LEFT REAR)
NIW10280797 Whirlpool Gas Tubing
NIW10115910 Whirlpool Gas Tubing
NIW10115911 Whirlpool Gas Tubing
1WPW10385583 Whirlpool Burner Valve
2SCREW
3W11688578 Whirlpool Insulation
4W10189107 Whirlpool Mounting Bracket
5W10115850 Whirlpool Mounting Bracket
64453115 Whirlpool Oven Adapter
7W10115985 Whirlpool Manifold
8WPW10326645 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10293267 Whirlpool Regulator Assembly
12BURNER BOX
13BRACKET, BURNER (RIGHT REAR)
13BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
14WPW10371235 Whirlpool Burner Valve
15W10115843 Whirlpool Access Cover
164453116 Whirlpool Oven Adapter
17W10189177 Whirlpool Seal Switch
18W10269191 Whirlpool Gas Tubing
19DRIP, TRAY
20W10145620 Whirlpool Bottom Model
21W10246074 Whirlpool Insulation Tray
22W11684995 Whirlpool Insulation
23W10138296 Whirlpool Element Grille
24W10276497 Whirlpool Drip Tray
