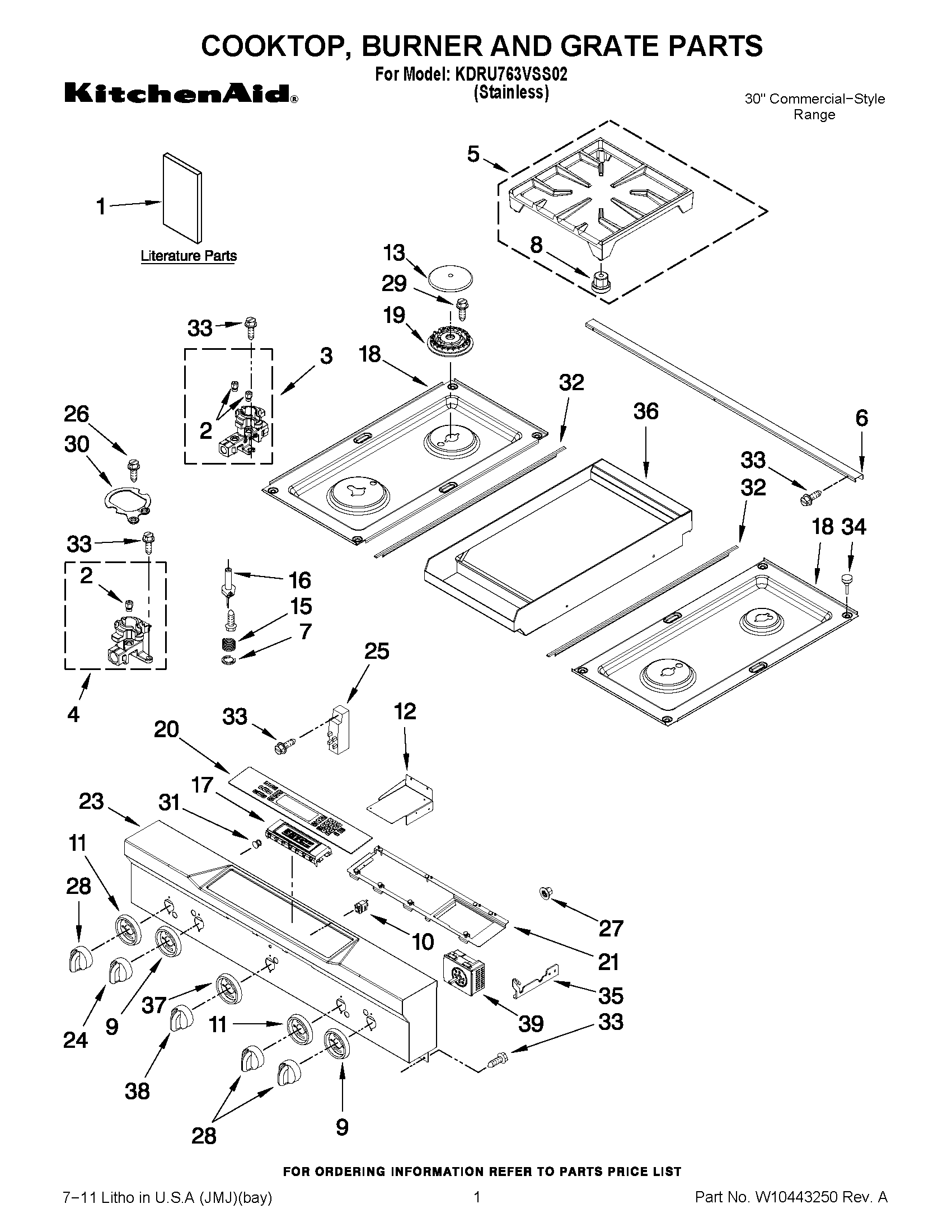

KDRU763VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

KDRU763VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRU763VSS02 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TECH SHEET (ENGLISH)
1INSTALLATION INSTRUCTIONS
1TECH SHEET (FRENCH)
1USE & CARE GUIDE
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
2W10819958 Whirlpool Orifice Spud
2SPUD-ORFCE
2W11051480 Whirlpool Orifice Assembly
3WPW10364555 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7CLIP, ELECTRODE (DUAL)
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10116151 Whirlpool Indicator Light
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13CAP-BURNER
13CAP-BURNER
13CAP-BURNER
15W10256046 Whirlpool Clip
158286863 Whirlpool Oven Clip
16W10833887 Whirlpool Surface Igniter
16WPW10145991 Whirlpool Surface Igniter
17MODULE, USER INTERFACE
18W10352969 Whirlpool Cooktop Assembly
18W10352968 Whirlpool Cooktop
19W11106799 Whirlpool Range Burner Base Surface
19BURNR-HEAD
19BURNR-HEAD
20KEYPAD
21BRACKET USER INTERFACE
23ASSEMBLY, CONSOLE
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
268286930 Whirlpool Oven Gasket
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
30W10491985 Whirlpool Screw
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
344448520 Whirlpool Oven Bumper
35W10130760 Whirlpool Bracket Mounting
35W10130759 Whirlpool Mounting Bracket
36W10625221 Whirlpool Module
37W10261515 Whirlpool Knob Bezel
38W10250390 Whirlpool Knob
39WPW10116113 Whirlpool Infinite Switch
