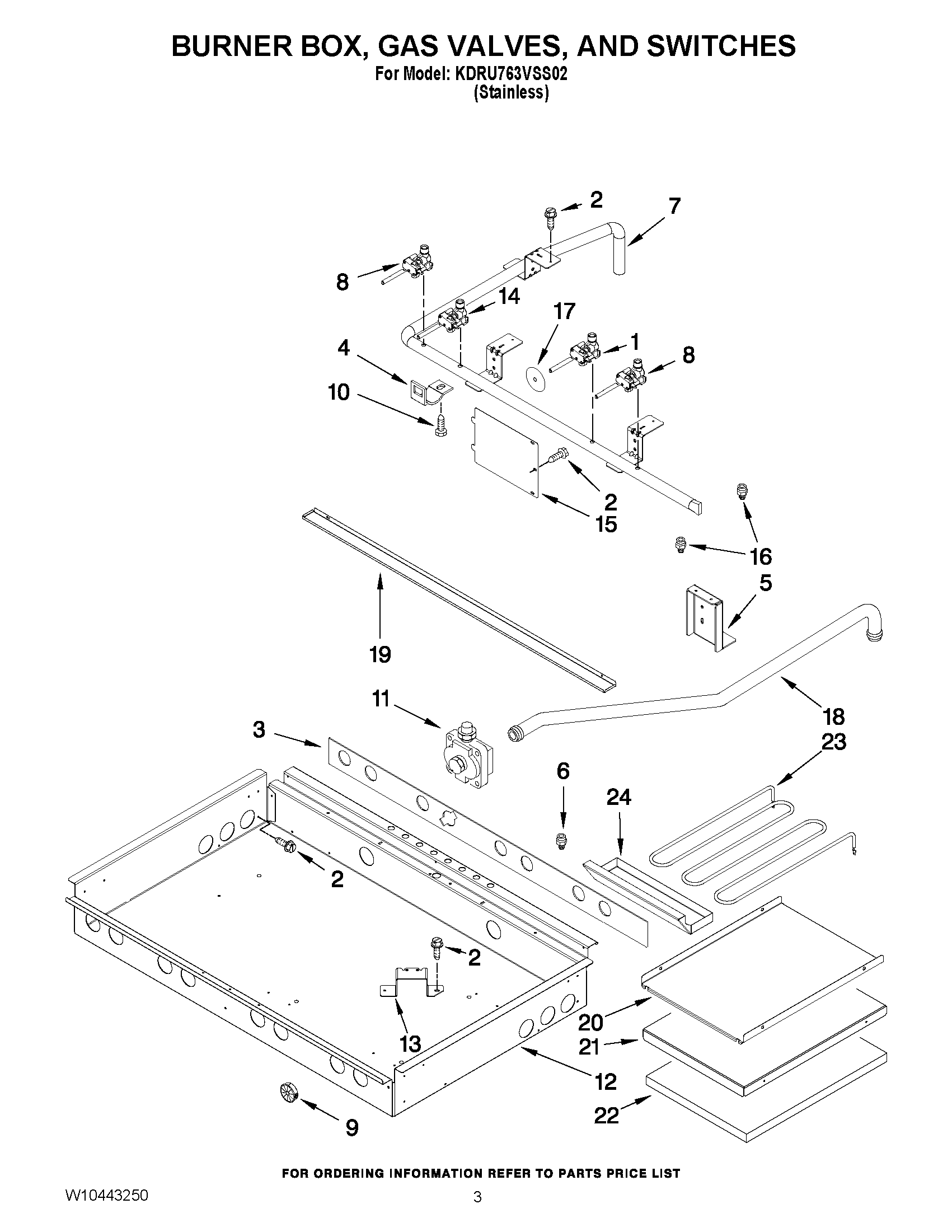

KDRU763VSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

KDRU763VSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Written by

in

KDRU763VSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
NIW10353154 Whirlpool Gas Tubing
NIW10353152 Whirlpool Gas Tubing
NIW10353141 Whirlpool Gas Tubing Assembly
1WPW10385583 Whirlpool Burner Valve
2SCREW
3W11688578 Whirlpool Insulation
4W10189107 Whirlpool Mounting Bracket
5W10115850 Whirlpool Mounting Bracket
64453115 Whirlpool Oven Adapter
7W10115985 Whirlpool Manifold
8WPW10371235 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10293267 Whirlpool Regulator Assembly
12W10371516 Whirlpool Burner Box
13W10369547 Whirlpool Mounting Bracket
14WPW10385582 Whirlpool Burner Valve
15W10115843 Whirlpool Access Cover
164453116 Whirlpool Oven Adapter
17W10423373 Whirlpool Switch Seal
18W10269191 Whirlpool Gas Tubing
19DRIP, TRAY
20W10145620 Whirlpool Bottom Model
21W10246074 Whirlpool Insulation Tray
22W11684995 Whirlpool Insulation
23W10138296 Whirlpool Element Grille
24W10276497 Whirlpool Drip Tray
