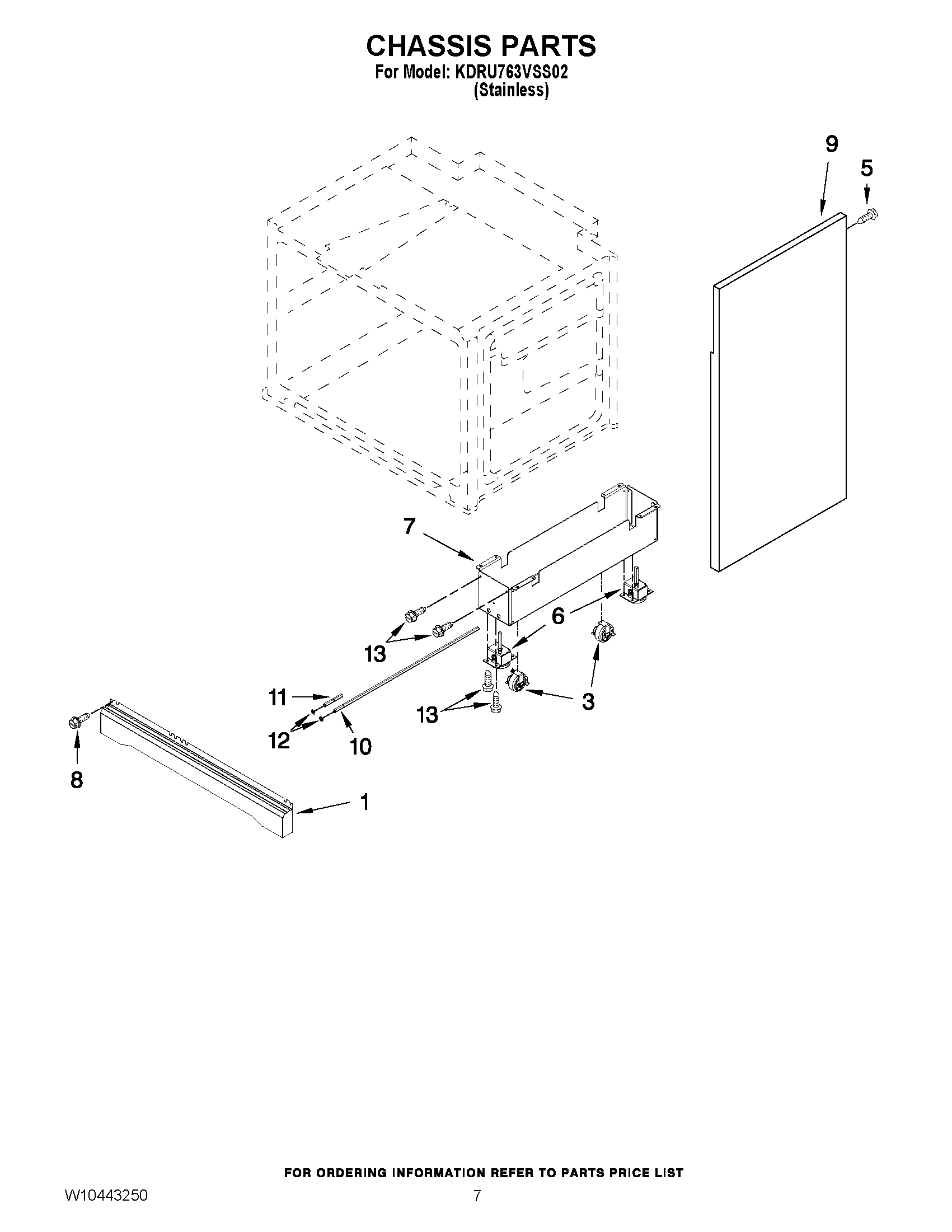

KDRU763VSS02 04 – CHASSIS PARTS

Products

Position	Product
1	WPW10225970 Whirlpool Oven Vent
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
6	W10859931 Whirlpool Foot Level
7	W10249333 Whirlpool Dishwasher Mounting Bracket
8	WP3196557 Whirlpool Screw
9	W11333303 Whirlpool Side Complete Assembly
9	WPW10250465 Whirlpool Cabinet Panel
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
13	WPW10292297 Whirlpool Screw
