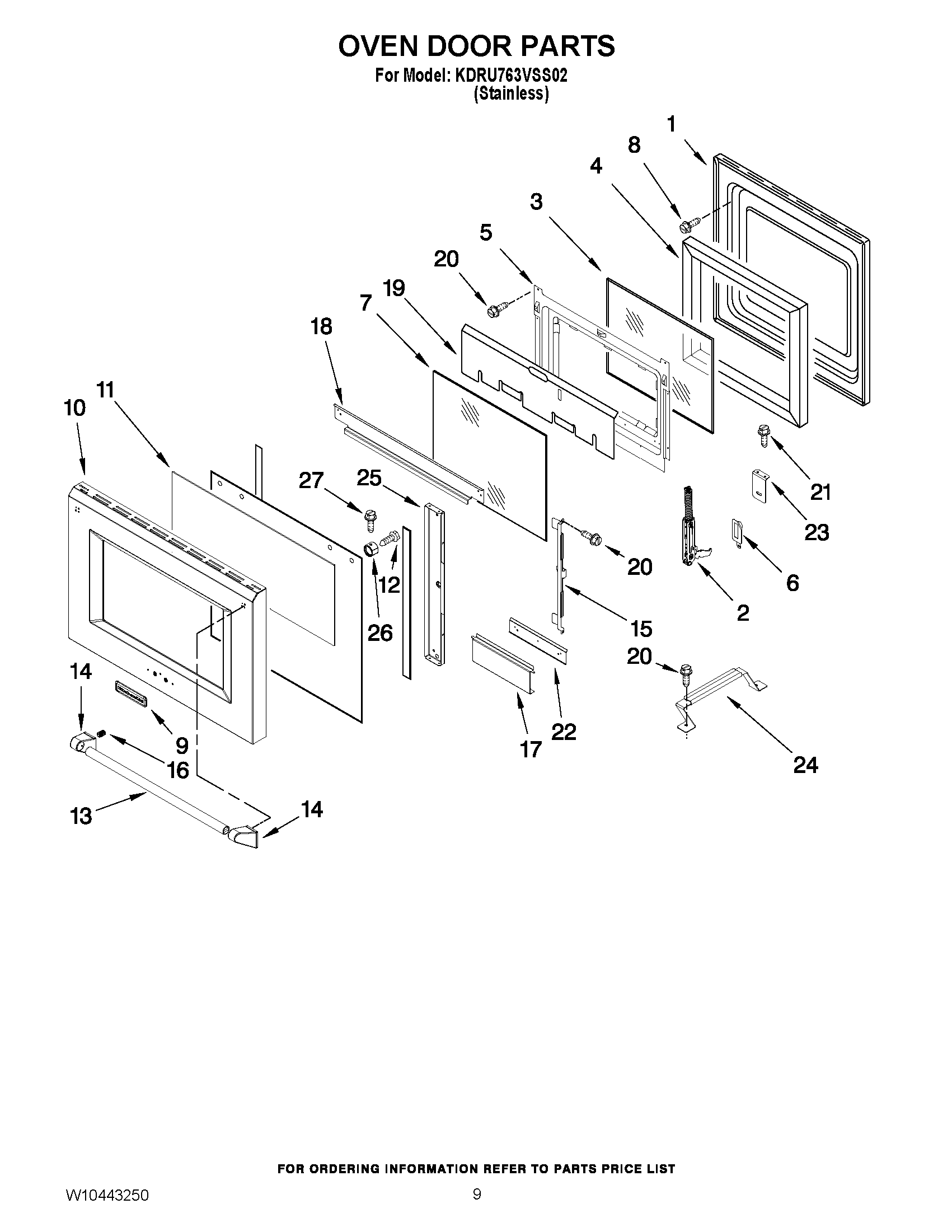

KDRU763VSS02 06 – OVEN DOOR PARTS

Products

Position	Product
1	PANEL, DOOR
2	HINGE, DOOR (RIGHT)
2	W10877227 Whirlpool Hinge Assembly
3	WPW10188327 Whirlpool Door Glass
4	W11706557 Whirlpool Insulation
5	W10859077 Whirlpool Retainer Assembly
6	W10115877 Whirlpool Cover
6	W10115876 Whirlpool Cover
7	WPW10226005 Whirlpool Door Glass
8	WPW10292297 Whirlpool Screw
9	W10852683 Whirlpool Nameplate
10	PANEL, DOOR
11	WPW10115712 Whirlpool Door Glass
12	W10217130 Whirlpool Screw
13	W10115718 Whirlpool Door Handle
14	W10226025 Whirlpool Handle Endcap
14	END CAP, HANDLE (LEFT)
15	WP9759229 Whirlpool Mounting Bracket
16	W10771437 Whirlpool Screw
17	BRACKET, BOTTOM
18	W10145806 Whirlpool Glass Bracket
19	SHIELD, HEAT TOP
20	WP3196557 Whirlpool Screw
21	SCREW
22	W10226024 Whirlpool Heat Shield
23	W10115715 Whirlpool Bracket Mounting
24	Bracket (3rd Glsss)
25	BRACKET, OUTER GLASS (SIDE)
26	SUPPORT, HANDLE
27	W10061760 Whirlpool Screw
