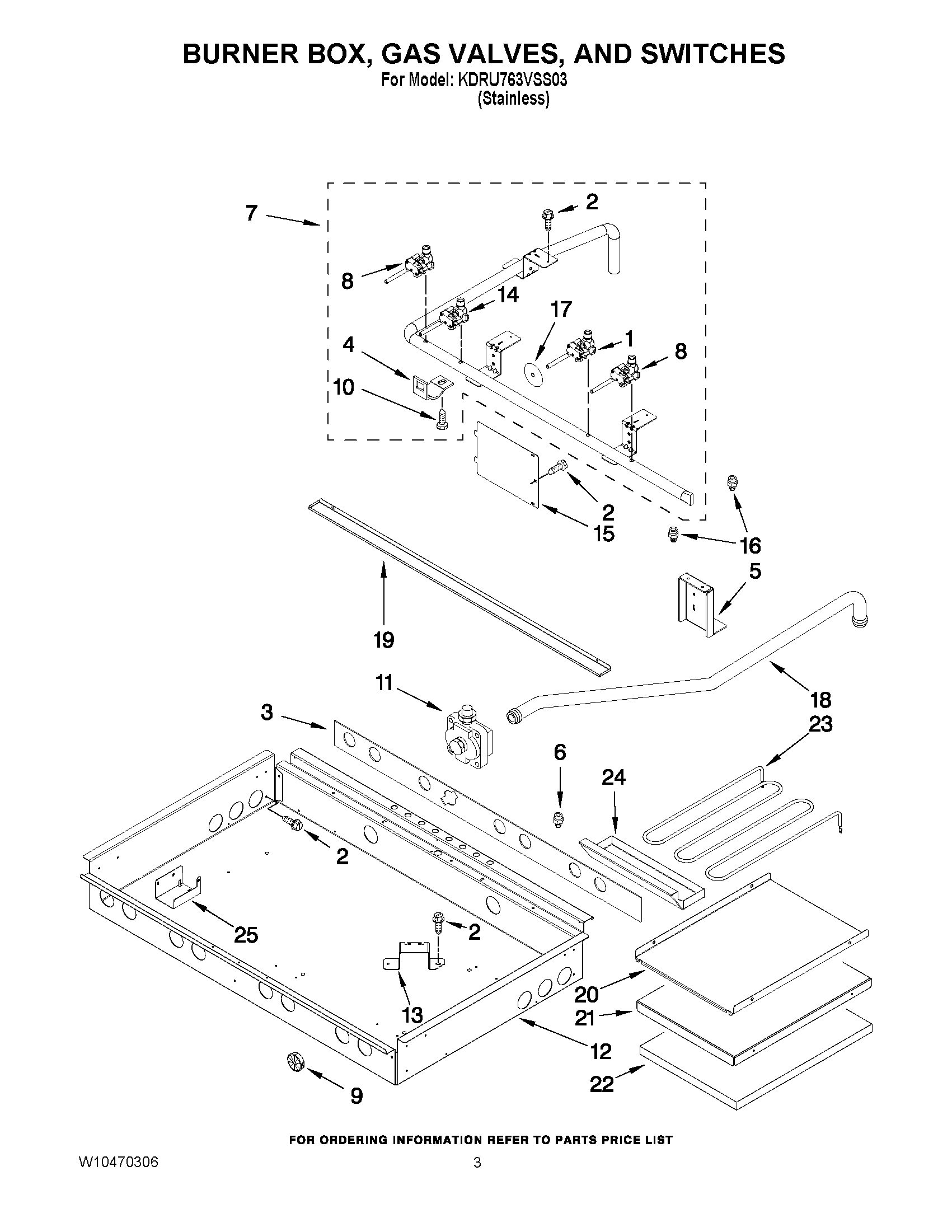

KDRU763VSS03 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	WPW10353133 Whirlpool Gas Tubing
NI	W10353154 Whirlpool Gas Tubing
NI	W10353152 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10280797 Whirlpool Gas Tubing
1	WPW10385583 Whirlpool Burner Valve
2	SCREW
3	W11688578 Whirlpool Insulation
4	BRACKET, VALVE
5	W10115850 Whirlpool Mounting Bracket
6	4453115 Whirlpool Oven Adapter
7	W10402610 Whirlpool Manifold
8	WPW10371235 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W10293267 Whirlpool Regulator Assembly
12	W10371516 Whirlpool Burner Box
13	W10369547 Whirlpool Mounting Bracket
14	WPW10385582 Whirlpool Burner Valve
15	W10115843 Whirlpool Access Cover
16	4453116 Whirlpool Oven Adapter
17	W10423373 Whirlpool Switch Seal
18	W10269191 Whirlpool Gas Tubing
19	DRIP, TRAY
20	W10145620 Whirlpool Bottom Model
21	W10246074 Whirlpool Insulation Tray
22	W11684995 Whirlpool Insulation
23	W10138296 Whirlpool Element Grille
24	W10276497 Whirlpool Drip Tray
25	BRACKET, STEAM VALVE
