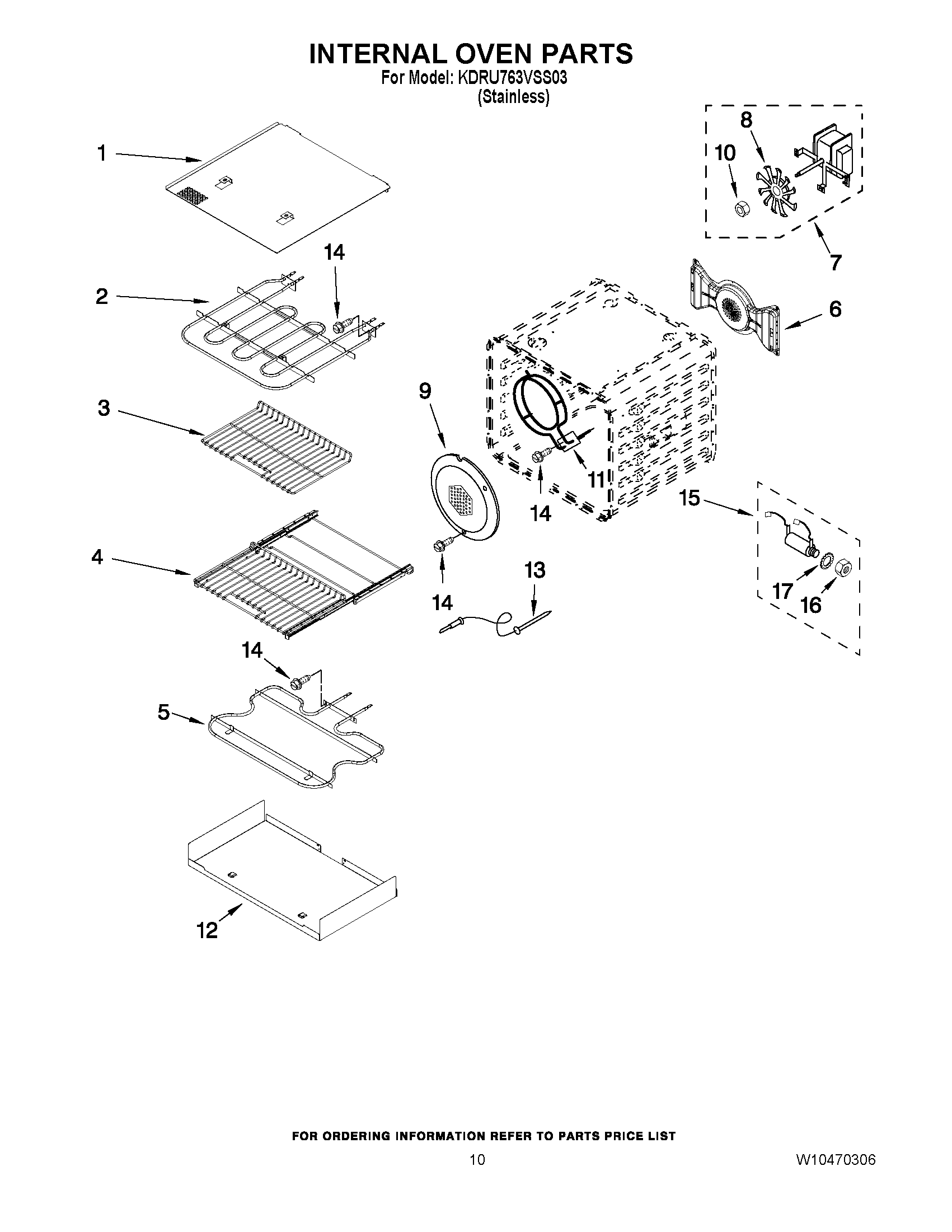

KDRU763VSS03 07 – INTERNAL OVEN PARTS

KDRU763VSS03 07 – INTERNAL OVEN PARTS

Written by

in

KDRU763VSS03 07 – INTERNAL OVEN PARTS

Products

PositionProduct
1SHIELD, BROIL ELEMENT
2W10857686 Whirlpool Broil Element
3RACK, SLIDING
4W10822069 Whirlpool Oven Rack
5W10860270 Whirlpool Bake Element Assembly
6BAFFLE, CONVECTION
7W10794022 Whirlpool Oven Cooktop Fan Motor
8W10758272 Whirlpool Convection Fan
9W10261523 Whirlpool Plate
10WPW10116349 Whirlpool Nut
11W10116434 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14SCREW
15W10150011 Whirlpool Probe Jack
16WP9755546 Whirlpool Locknut
17WP9755547 Whirlpool Lockwasher
