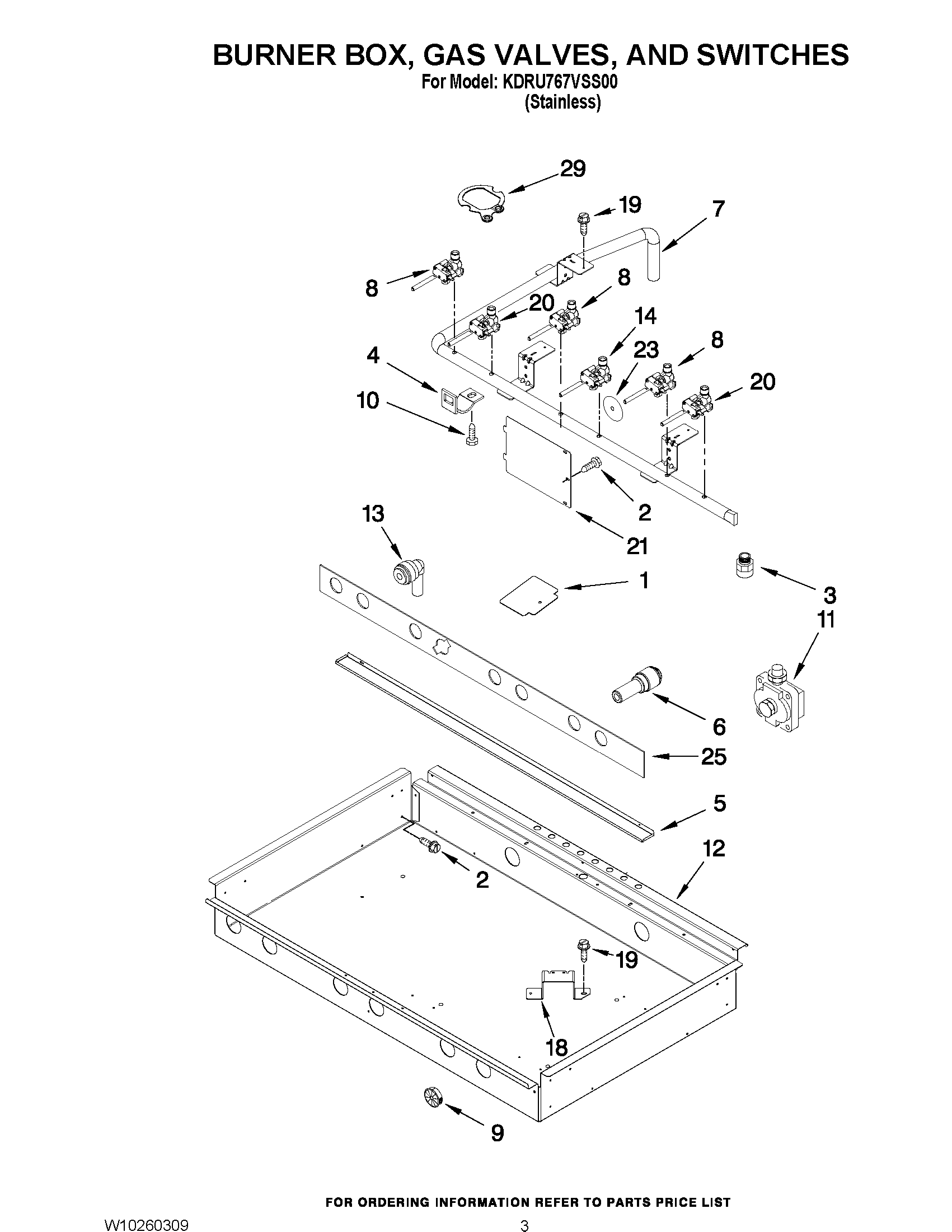

KDRU767VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10115910 Whirlpool Gas Tubing
NIW10280797 Whirlpool Gas Tubing
NIW10269191 Whirlpool Gas Tubing
NIW10115911 Whirlpool Gas Tubing
NITUBING, GAS (LEFT REAR)
1W10287036 Whirlpool Access Cover
34453116 Whirlpool Oven Adapter
34453115 Whirlpool Oven Adapter
4W10189107 Whirlpool Mounting Bracket
5DRIP, TRAY
6Reducer, Stem
7MANIFOLD
8WPW10326645 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10293267 Whirlpool Regulator Assembly
12BURNER BOX
13Elbow, Plug In
14WPW10385583 Whirlpool Burner Valve
18BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
18BRACKET, BURNER (RIGHT REAR)
19SCREW
20WPW10371235 Whirlpool Burner Valve
21W10115843 Whirlpool Access Cover
23W10189177 Whirlpool Seal Switch
25W11688578 Whirlpool Insulation
298286930 Whirlpool Oven Gasket
