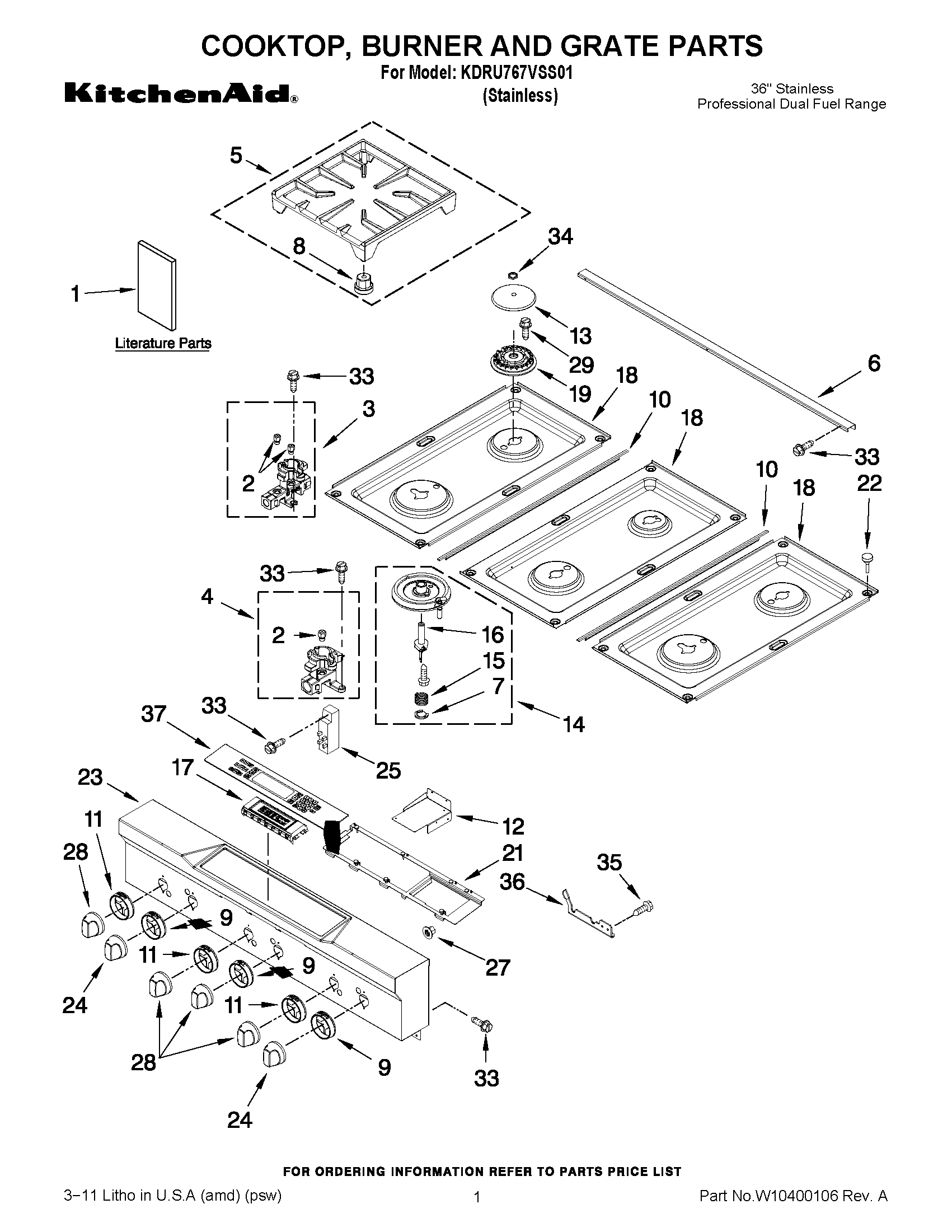

KDRU767VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

KDRU767VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRU767VSS01 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
1TECH SHEET (FRENCH)
1TECH SHEET (ENGLISH)
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W10791075 Whirlpool Orifice Spud
2ORIFICE (LEFT FRONT, HIGH)
2ORIFICE (LEFT FRONT, LOW)
2ORIFICE (LEFT REAR & RIGHT FRONT)
3WPW10160187 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
7CLIP, ELECTRODE (DUAL)
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10271524 Whirlpool Trim Top
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13WPW10115952 Whirlpool Burner Cap
13WP8286816 Whirlpool Burner Cap
13WPW10160229 Whirlpool Burner Cap
14WPW10320937 Whirlpool Burner Top
14ASSEMBLY, BURNER BASE (LEFT REAR & RIGHT FRONT)
15SPRING, ELECTRODE (LEFT FRONT, LEFT REAR & RIGHT FRONT)
158286863 Whirlpool Oven Clip
16WPW10250406 Whirlpool Surface Igniter
16WPW10145991 Whirlpool Surface Igniter
16WPW10160235 Whirlpool Surface Igniter
17MODULE, USER INTERFACE
18COOKTOP (CENTER)
18COOKTOP (LEFT)
18W10189101 Whirlpool Cooktop
19HEAD, BURNER (LEFT REAR & RIGHT FRONT)
19WPW10250459 Whirlpool Burner Head
19BURNR-HEAD
21BRACKET USER INTERFACE
224448520 Whirlpool Oven Bumper
23PANEL, CONTROL
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
33SCREW
34W10115953 Whirlpool Nut
35SCREW
36W10130759 Whirlpool Mounting Bracket
36W10130760 Whirlpool Bracket Mounting
37KEYPAD
