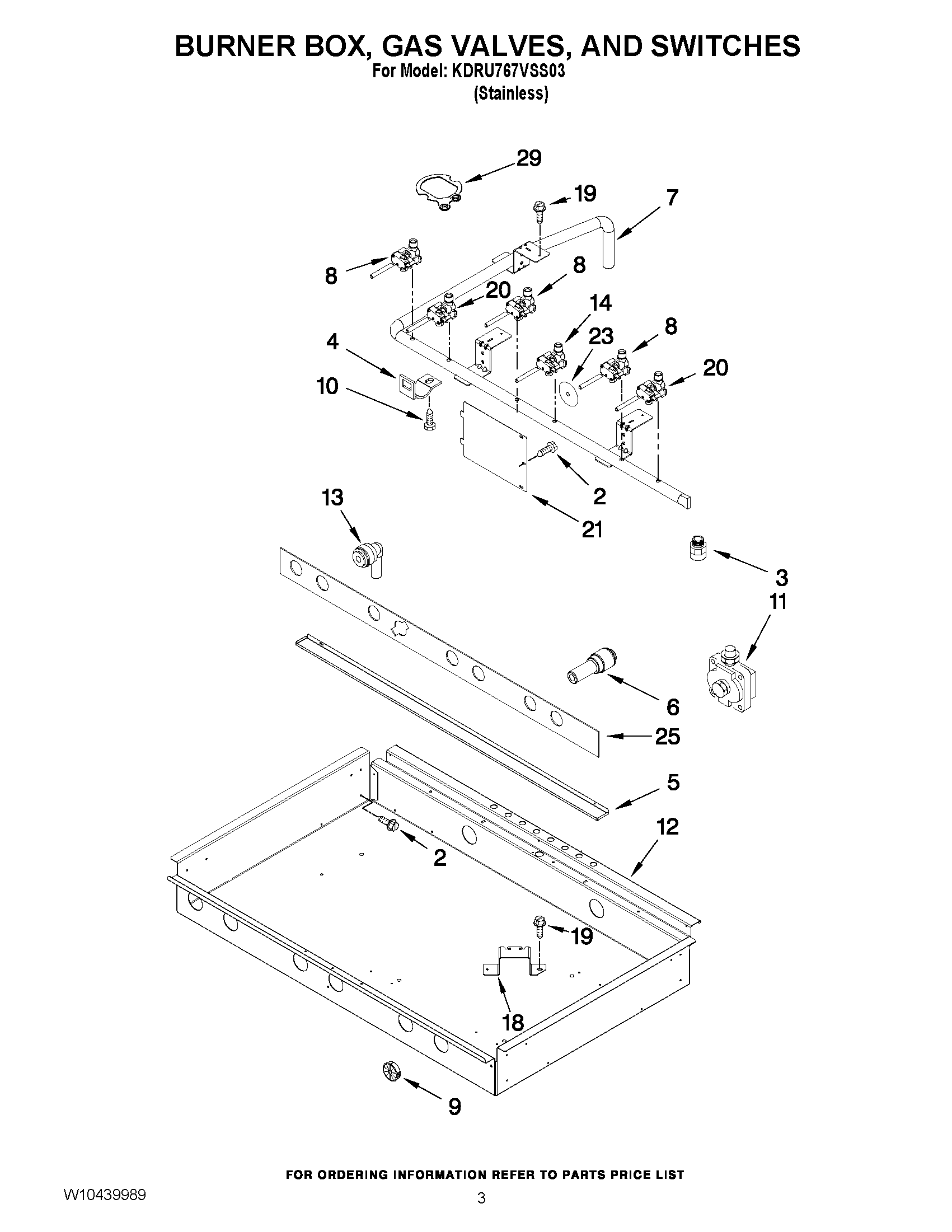

KDRU767VSS03 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NIW10269191 Whirlpool Gas Tubing
NIW10353141 Whirlpool Gas Tubing Assembly
NIW10353152 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
34453116 Whirlpool Oven Adapter
34453115 Whirlpool Oven Adapter
5DRIP, TRAY
6Reducer, Stem
7MANIFOLD
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
11W10293267 Whirlpool Regulator Assembly
12W10371516 Whirlpool Burner Box
13Elbow, Plug In
14WPW10385583 Whirlpool Burner Valve
18W10189107 Whirlpool Mounting Bracket
19SCREW
20WPW10371235 Whirlpool Burner Valve
21W10115843 Whirlpool Access Cover
23W10189177 Whirlpool Seal Switch
25W11688578 Whirlpool Insulation
298286930 Whirlpool Oven Gasket
