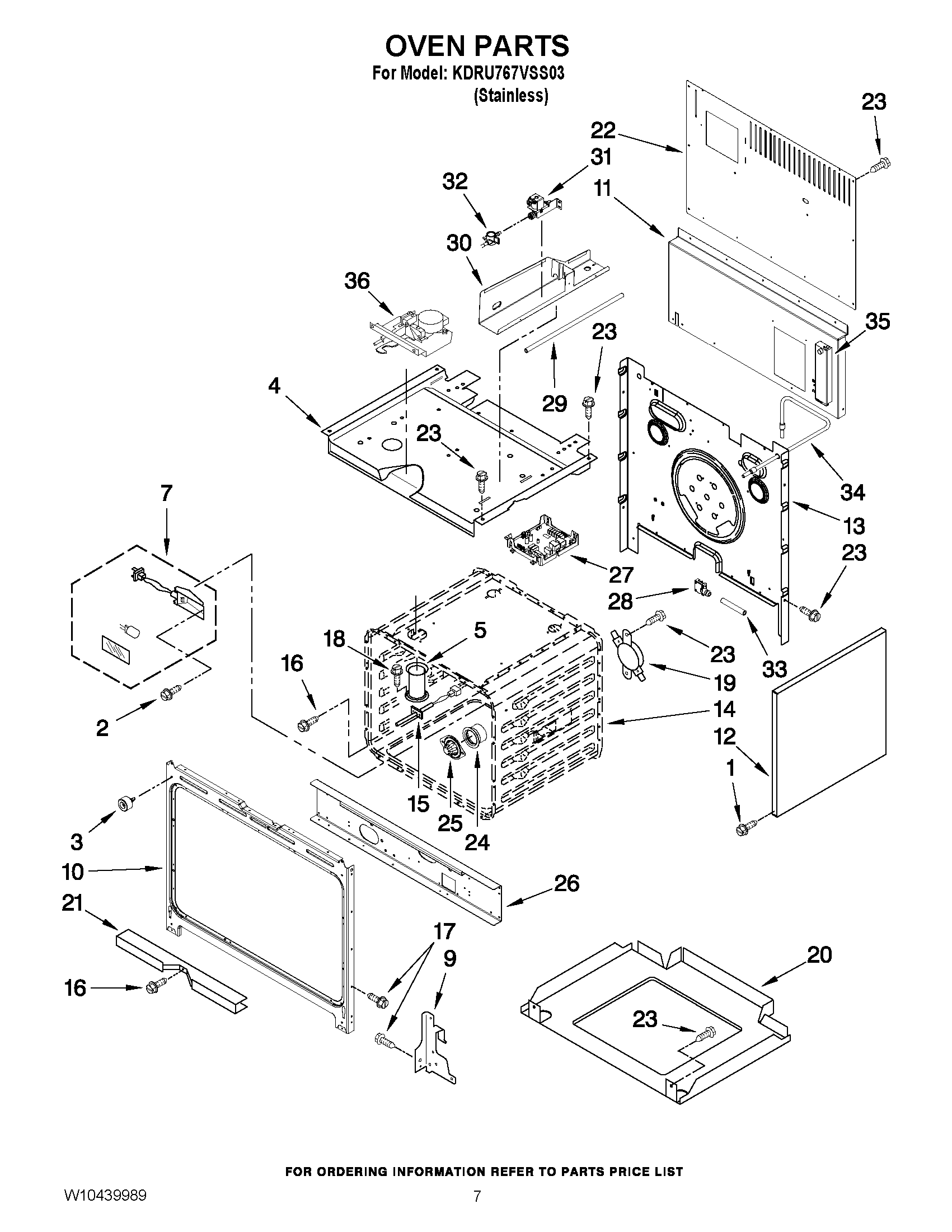

KDRU767VSS03 05 – OVEN PARTS

KDRU767VSS03 05 – OVEN PARTS

Written by

in

KDRU767VSS03 05 – OVEN PARTS

Products

PositionProduct
NISTEAM VALVE (INSULATION, BACK)
NIW10860322 Whirlpool Insulation
1WPW10292297 Whirlpool Screw
24449748 Whirlpool Oven Screw
3W10105790 Whirlpool Bumper
4TOP, CHASSIS
5TUBE, VENT
7WPW10307114 Whirlpool Light
9WP4455605 Whirlpool Left Hand Hinge
9WP4455606 Whirlpool Right Hand Hinge
10W10160867 Whirlpool Front Frame
11PANEL, BACK BOTTOM
12W10269205 Whirlpool Side Compartment
12W10269206 Whirlpool Side Compartment
13BACK, CHASSIS
14CABINET (NOT A SERVICEABLE PART)
15WPW10131825 Whirlpool Oven Temperature Sensor
16WP4449154 Whirlpool Screw
17Screw
18SCREW
19WP4449751 Whirlpool Range Oven Thermostat Fix
20W10235536 Whirlpool Main Bottom
21W11368870 Whirlpool Retainer Assembly
22W10269208 Whirlpool Rear Cover
23SCREW
24ORIFICE, BOILER
25Orifice, Boiler Slip Fit
26W11676901 Whirlpool Range Gasket
28W10194453 Whirlpool Switch
29Hose (includes clamp)
30ENCLOSEURE, STEAM VALVE
31Valve, Solenoid
32WPW10076760 Whirlpool Sensor
33W10116067 Whirlpool Hose
34W10160828 Whirlpool Tubing
358186352 Whirlpool Boiler
36W11029221 Whirlpool Door Latch
