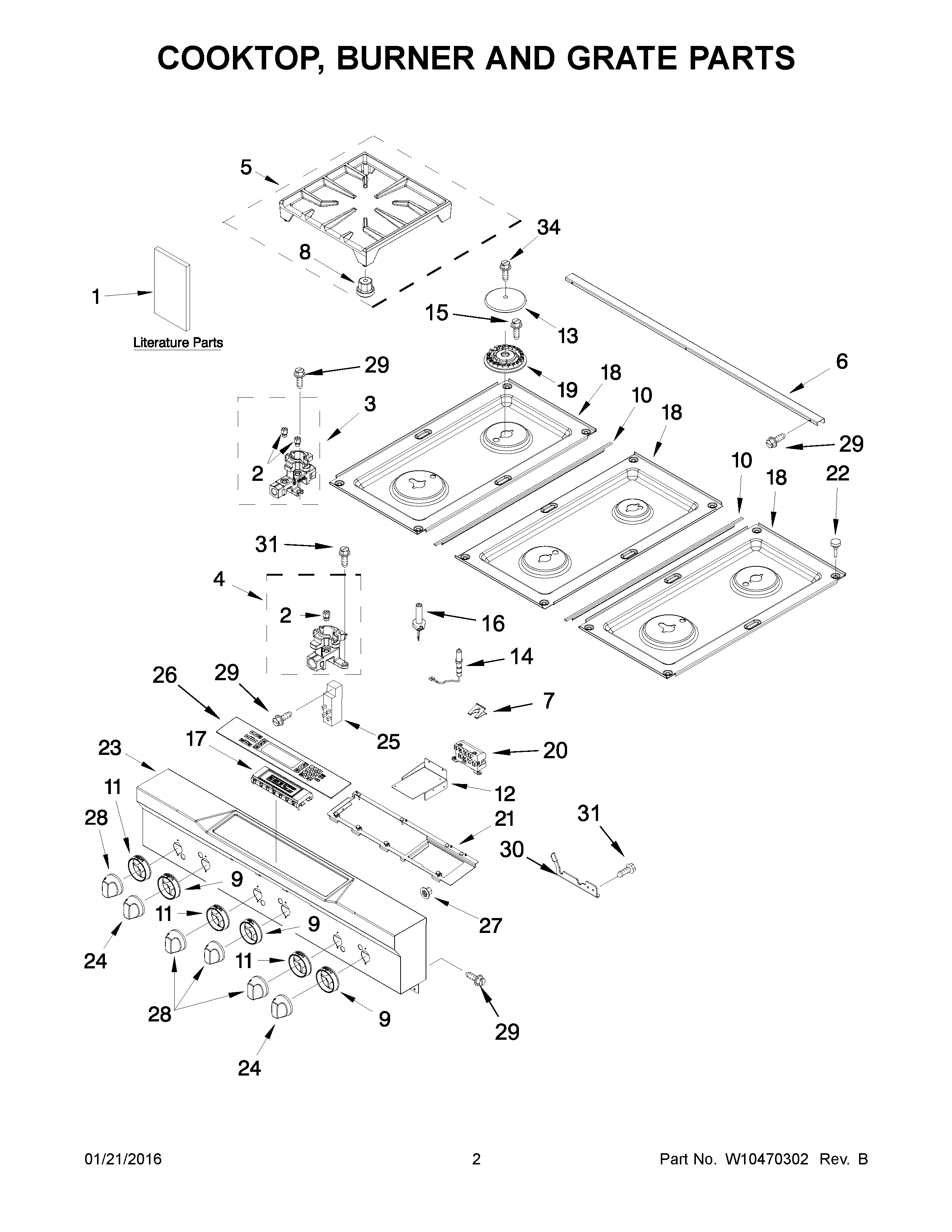

KDRU767VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

KDRU767VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRU767VSS04 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
NIWP112432 Whirlpool Nut Assembly
NIW10780278 Whirlpool Wire Harness
NIW10146020 Whirlpool Wire Harness
NIWP9759877 Whirlpool Retainer
NIW10399614 Whirlpool Wire Harness
NIWPW10049700 Whirlpool Filter
NIGrommet, Flex
NIW10856625 Whirlpool Venturi
NICORD-POWER
NIWPL W10766100
NISCREW, ANTI-TIP KIT
NIW11544575 Whirlpool Anti-Tip Bracket
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NIMAIN HARNESS
NI4450800 Whirlpool Oven Screw
NIW10507834 Whirlpool Wire Harness
1ATECH SHEET (FRENCH)
1ESafer Cooking Tips (French)
1CINSTRUCTIONS, INSTALLATION
1DSAFER COOKING TIPS (ENGLISH
1TECH SHEET (ENGLISH)
1BUSE & CARE GUIDE
2AW10819958 Whirlpool Orifice Spud
2BW11051480 Whirlpool Orifice Assembly
2CW10791075 Whirlpool Orifice Spud
2SPUD-ORFCE
3WPW10364555 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
4AW10282659 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269217 Whirlpool Trim Top Assembly
78286863 Whirlpool Oven Clip
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10271524 Whirlpool Trim Top
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13BCAP-BURNER
13ACAP-BURNER
13CAP-BURNER
14W10854967 Whirlpool Surface Igniter
15Screw
16W10833887 Whirlpool Surface Igniter
17INTERFACE, USER
18W10352969 Whirlpool Cooktop Assembly
18BW10352966 Whirlpool Cooktop
18AW10352967 Whirlpool Cooktop
19W11106799 Whirlpool Range Burner Base Surface
19BBURNR-HEAD
19ABURNR-HEAD
20WPW10475147 Whirlpool Spark Module
21BRACKET USER INTERFACE
224448520 Whirlpool Oven Bumper
23PANEL, CONTROL
24W11244176 Whirlpool Knob Assembly
25W11601369 Whirlpool Spark Module
26KEYPAD
27WPL 7103P16660
28W11177673 Whirlpool Knob
29SCREW
30W10130760 Whirlpool Bracket Mounting
30AW10130759 Whirlpool Mounting Bracket
31SCREW
