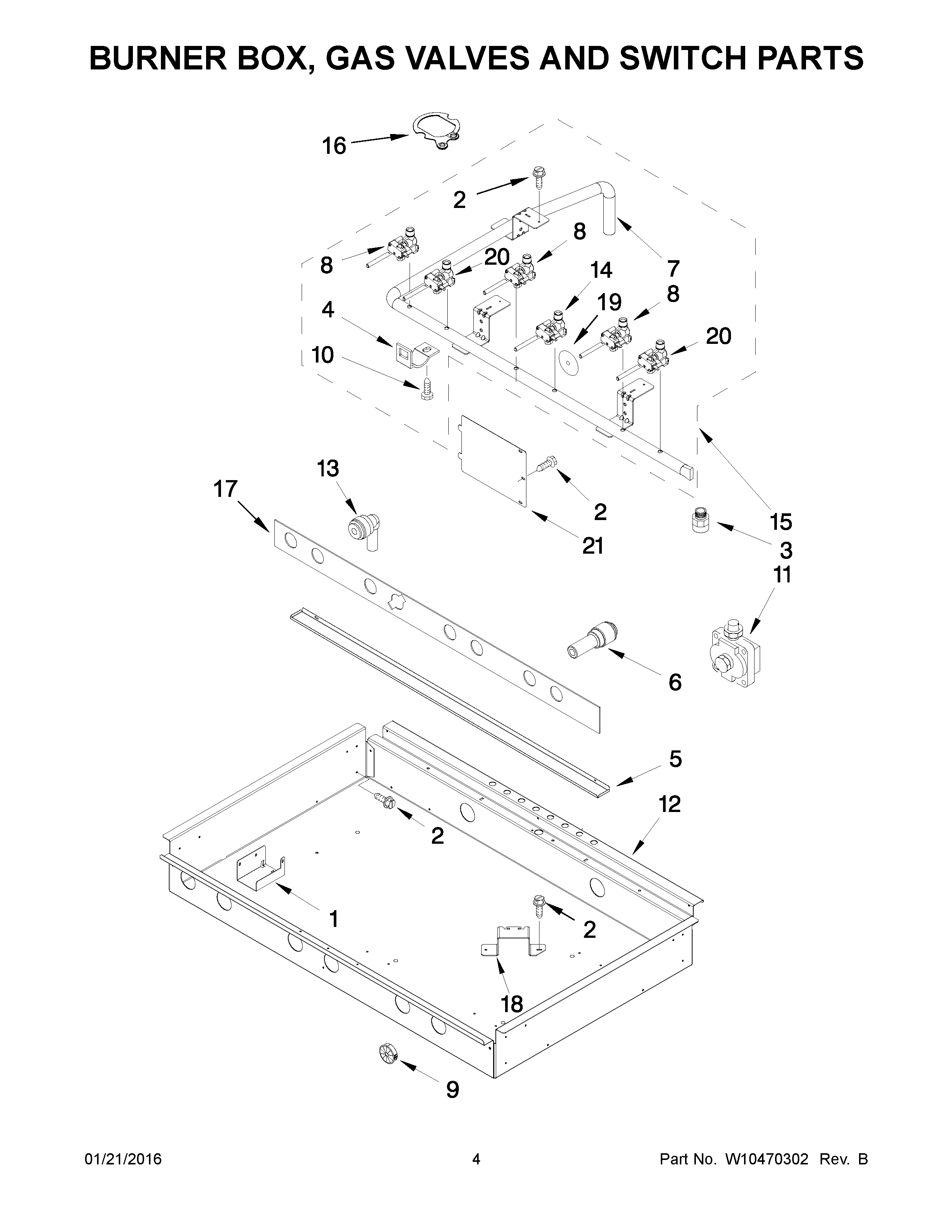

KDRU767VSS04 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10353133 Whirlpool Gas Tubing
NI	W10353154 Whirlpool Gas Tubing
NI	W10353152 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10280797 Whirlpool Gas Tubing
NI	W10269191 Whirlpool Gas Tubing
1	BRACKET, STEAM VALVE
2	SCREW
3	4453115 Whirlpool Oven Adapter
3A	4453116 Whirlpool Oven Adapter
4	BRACKET, VALVE
5	DRIP, TRAY
6	Reducer, Stem
7	MANIFOLD
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	W10293267 Whirlpool Regulator Assembly
12	W10371516 Whirlpool Burner Box
13	Elbow, Plug In
14	WPW10385583 Whirlpool Burner Valve
15	ASSEMBLY, MANIFOLD
16	8286930 Whirlpool Oven Gasket
17	W11688578 Whirlpool Insulation
18	W10560553 Whirlpool Mounting Bracket
19	W10189177 Whirlpool Seal Switch
20	WPW10371235 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
