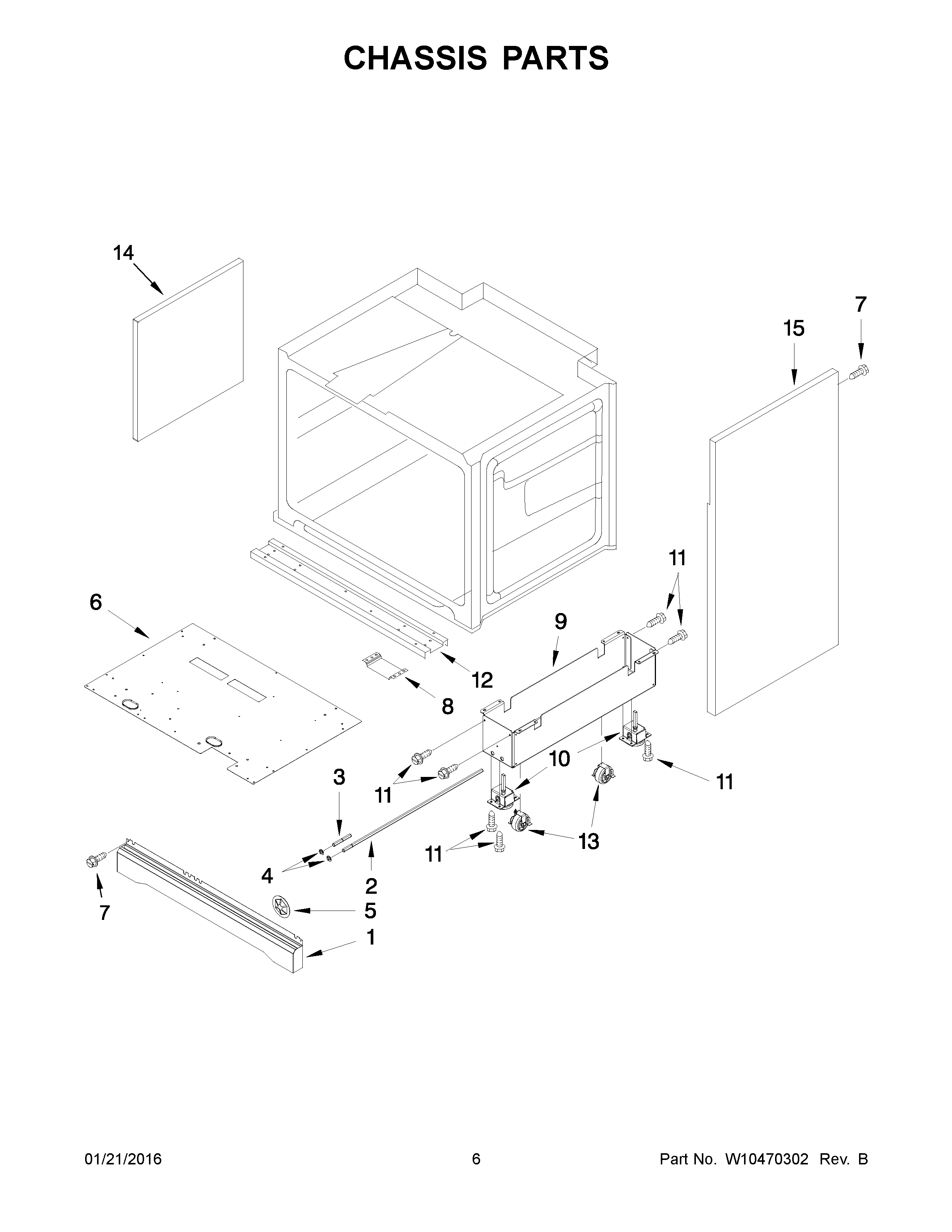

KDRU767VSS04 04 – CHASSIS PARTS

KDRU767VSS04 04 – CHASSIS PARTS

Written by

in

KDRU767VSS04 04 – CHASSIS PARTS

Products

PositionProduct
1WPW10225970 Whirlpool Oven Vent
2W10115869 Whirlpool Shaft
3W10115793 Whirlpool Shaft
4489504 Whirlpool Oven Ring
5WP3400968 Whirlpool Nut
6W10269196 Whirlpool Duct
7WP3196557 Whirlpool Screw
8W10115850 Whirlpool Mounting Bracket
9W10249333 Whirlpool Dishwasher Mounting Bracket
10W10859931 Whirlpool Foot Level
11WPW10292297 Whirlpool Screw
12W10269193 Whirlpool Support
13WPW10138054 Whirlpool Refrigerator Cabinet Roller
14AW10269205 Whirlpool Side Compartment
14W10269206 Whirlpool Side Compartment
15WPW10250465 Whirlpool Cabinet Panel
15AW11333303 Whirlpool Side Complete Assembly
