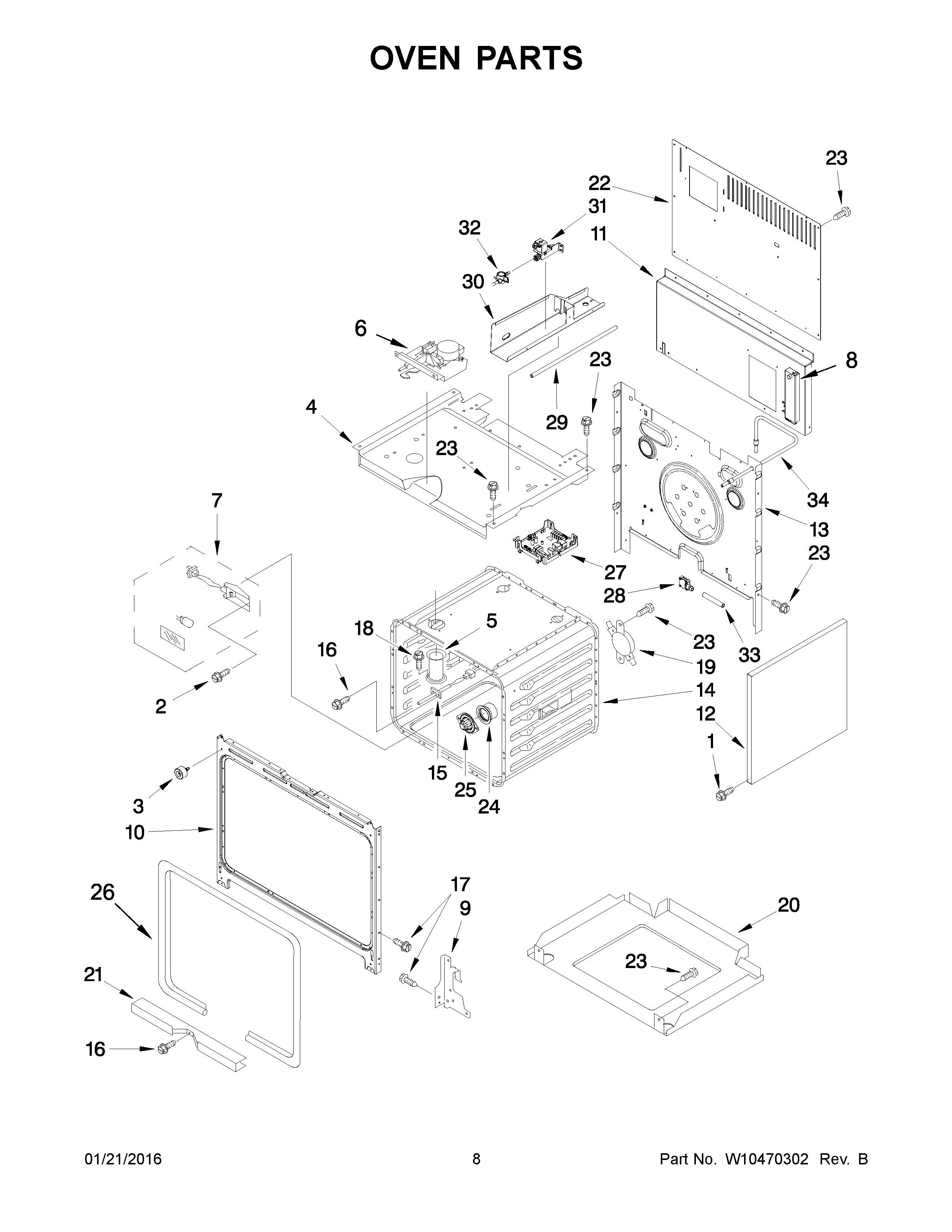

KDRU767VSS04 05 – OVEN PARTS

Products

Position	Product
NI	STEAM VALVE (INSULATION, BACK)
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10860322 Whirlpool Insulation
1	WPW10292297 Whirlpool Screw
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	TOP, CHASSIS
5	TUBE, VENT
6	W11029221 Whirlpool Door Latch
7	WPW10307114 Whirlpool Light
8	8186352 Whirlpool Boiler
9	WP4455605 Whirlpool Left Hand Hinge
9A	WP4455606 Whirlpool Right Hand Hinge
10	W10160867 Whirlpool Front Frame
11	PANEL, BACK BOTTOM
12A	W10269205 Whirlpool Side Compartment
12	W10269206 Whirlpool Side Compartment
13	BACK, CHASSIS
15	WPW10131825 Whirlpool Oven Temperature Sensor
16	WP4449154 Whirlpool Screw
17	Screw
18	SCREW
19	WP4449751 Whirlpool Range Oven Thermostat Fix
20	W10235536 Whirlpool Main Bottom
21	W11368870 Whirlpool Retainer Assembly
22	W10269208 Whirlpool Rear Cover
23	SCREW
24	ORIFICE, BOILER
25	Orifice, Boiler Slip Fit
26	W11676901 Whirlpool Range Gasket
27	MANAGER, APPLIANCE
28	W10194453 Whirlpool Switch
29	Hose (includes clamp)
30	ENCLOSEURE, STEAM VALVE
31	Valve, Solenoid
32	WPW10076760 Whirlpool Sensor
33	W10116067 Whirlpool Hose
34	W10160828 Whirlpool Tubing
