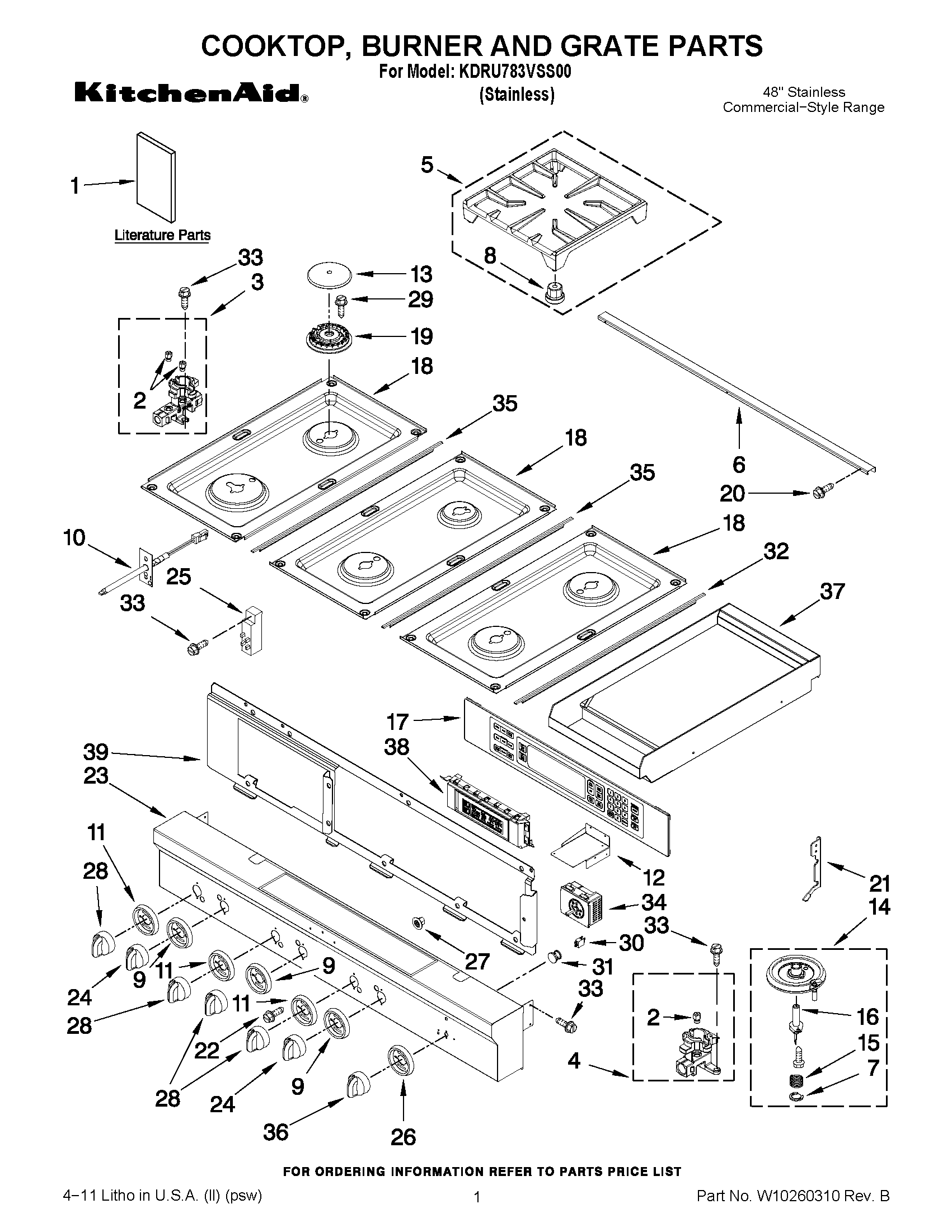

KDRU783VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

KDRU783VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRU783VSS00 01 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1TECH SHEET (FRENCH)
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET (ENGLISH)
1SAFER COOKING TIPS (ENGLISH
1Safer Cooking Tips (French)
2ORIFICE (LEFT FRONT, HIGH)
2ORIFICE (LEFT REAR & RIGHT FRONT)
2W10791075 Whirlpool Orifice Spud
2ORIFICE (LEFT FRONT, LOW)
3WPW10160187 Whirlpool Orifice Holder
4W10282659 Whirlpool Orifice Holder
4ASSEMBLY, ORIFICE HOLDER (LEFT REAR & RIGHT FRONT)
5WPW10115928 Whirlpool Burner Grate
6W10269216 Whirlpool Top Trim
7CLIP, ELECTRODE (DUAL)
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10WPW10131825 Whirlpool Oven Temperature Sensor
11W10261512 Whirlpool Knob Bezel
12W10367052 Whirlpool Switch Bracket
13WP8286816 Whirlpool Burner Cap
13WPW10160229 Whirlpool Burner Cap
13WPW10115952 Whirlpool Burner Cap
14WPW10320937 Whirlpool Burner Top
14ASSEMBLY, BURNER BASE (LEFT REAR & RIGHT FRONT)
15SPRING, ELECTRODE (LEFT FRONT, LEFT REAR & RIGHT FRONT)
16WPW10250406 Whirlpool Surface Igniter
16WPW10145991 Whirlpool Surface Igniter
16WPW10160235 Whirlpool Surface Igniter
17WPW10116105 Whirlpool Membrane Switch
18W10189101 Whirlpool Cooktop
18COOKTOP (LEFT)
18COOKTOP (CENTER)
19WPW10250459 Whirlpool Burner Head
19BURNR-HEAD
19HEAD, BURNER (LEFT REAR & RIGHT FRONT)
20SCREW
21W10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22SCREW
23WPL W10115885
24W11244176 Whirlpool Knob Assembly
25MODULE, SPARK
26W10261515 Whirlpool Knob Bezel
27WPL 7103P16660
28W11177673 Whirlpool Knob
29W11404293 Whirlpool Screw
30W10116151 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10271525 Whirlpool Top Trim
33SCREW
34WPW10116113 Whirlpool Infinite Switch
35W10271524 Whirlpool Trim Top
36W10250390 Whirlpool Knob
37W10625221 Whirlpool Module
38WPL W10298118
39BRACKET USER INTERFACE
