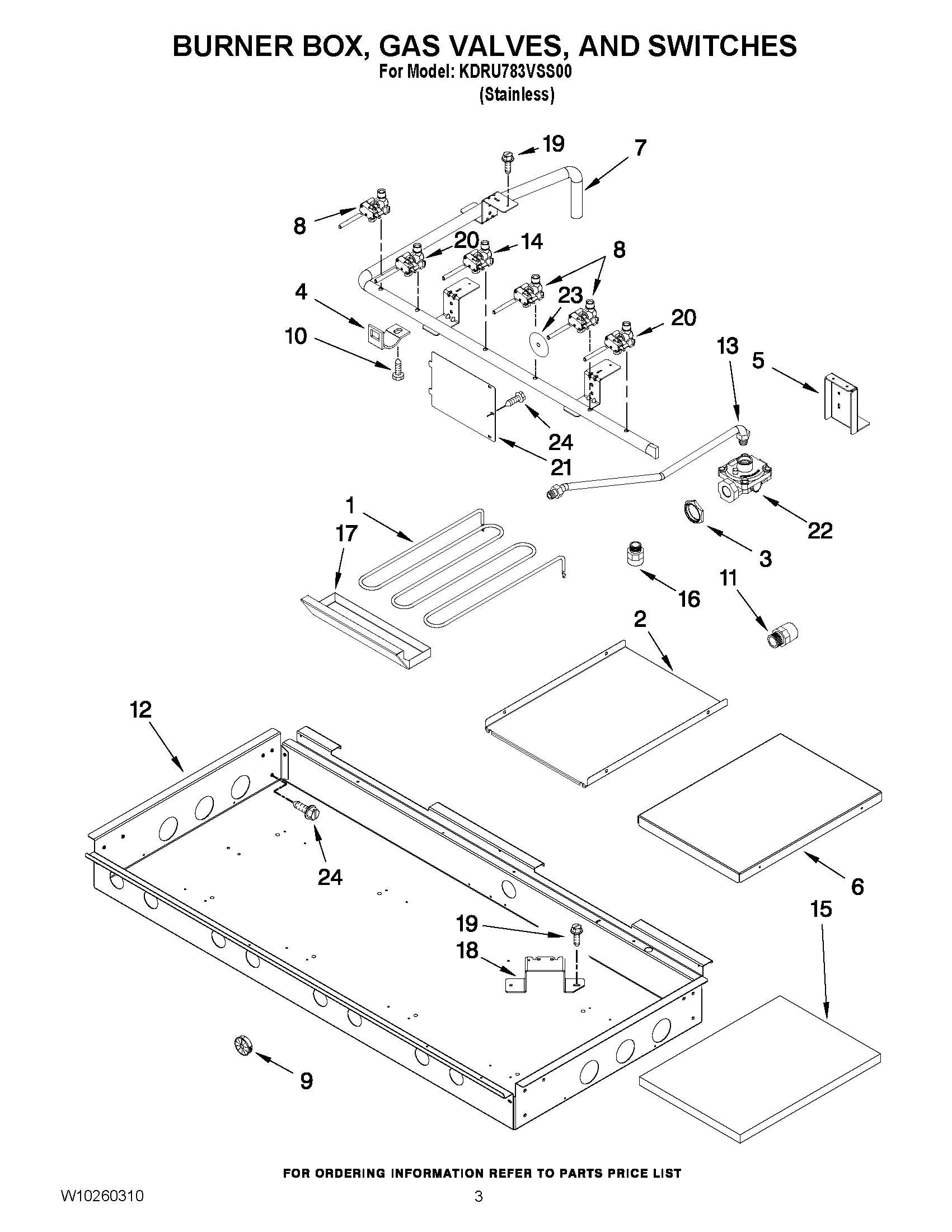

KDRU783VSS00 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

Position	Product
NI	W10115910 Whirlpool Gas Tubing
NI	W10280797 Whirlpool Gas Tubing
NI	W10115911 Whirlpool Gas Tubing
NI	TUBING, GAS (LEFT REAR)
1	W10138296 Whirlpool Element Grille
2	W10145620 Whirlpool Bottom Model
3	W10115953 Whirlpool Nut
4	W10189107 Whirlpool Mounting Bracket
5	W10115850 Whirlpool Mounting Bracket
6	W10246074 Whirlpool Insulation Tray
7	W10250421 Whirlpool Manifold Assembly
8	WPW10326645 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	4453116 Whirlpool Oven Adapter
12	BURNER BOX
13	W10269191 Whirlpool Gas Tubing
14	WPW10385583 Whirlpool Burner Valve
15	W11684995 Whirlpool Insulation
16	4453115 Whirlpool Oven Adapter
17	W10276497 Whirlpool Drip Tray
18	BRACKET, BURNER (LEFT FRONT, LEFT REAR & RIGHT FRONT)
18	BRACKET, BURNER (RIGHT REAR)
19	4450800 Whirlpool Oven Screw
20	WPW10371235 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
22	W10293267 Whirlpool Regulator Assembly
23	W10189177 Whirlpool Seal Switch
24	SCREW
