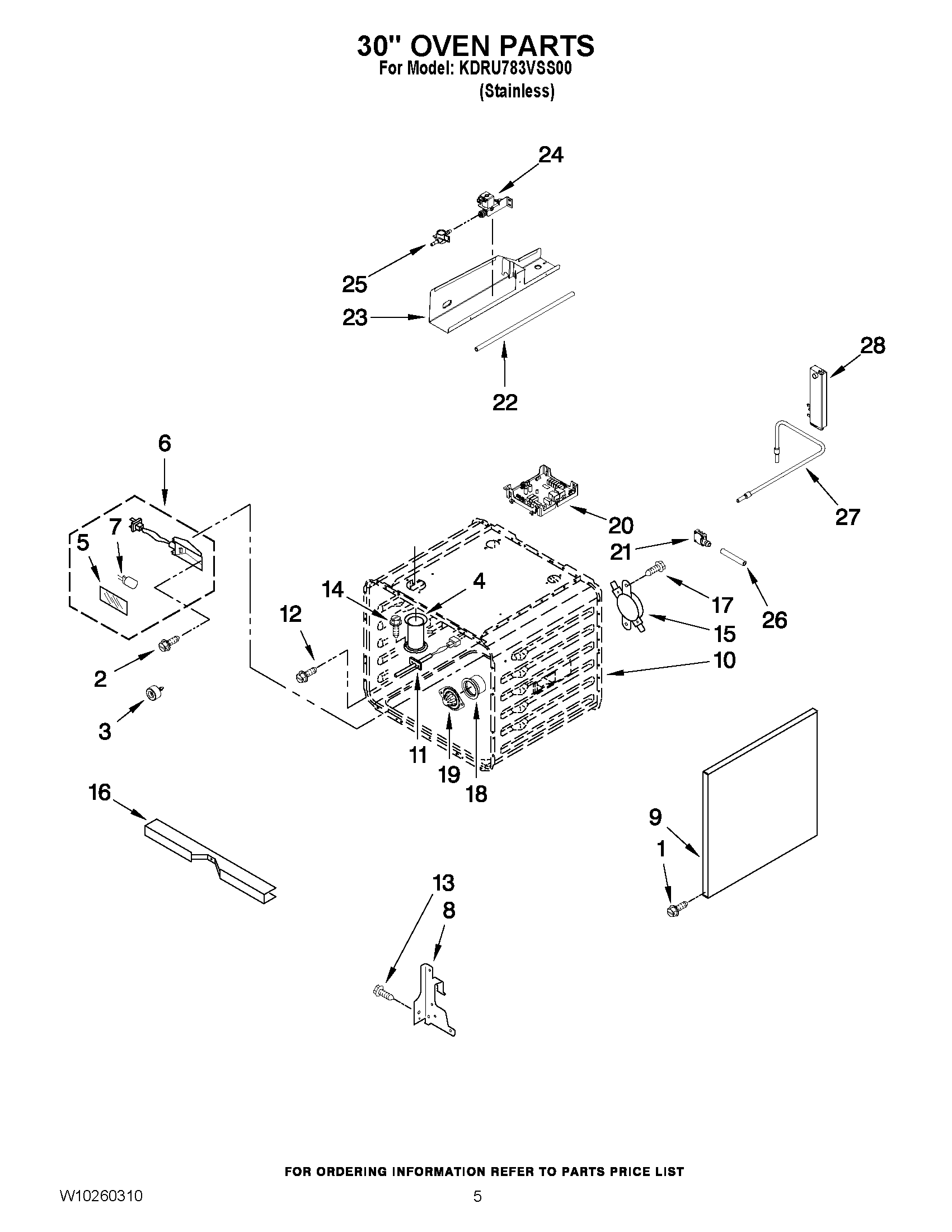

KDRU783VSS00 03 – 30“ OVEN PARTS

Products

Position	Product
NI	W11684730 Whirlpool Insulation
NI	STEAM VALVE (INSULATION, BACK)
1	WPW10292297 Whirlpool Screw
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	TUBE, VENT
5	W10169756 Whirlpool Light Lens
6	WPW10307114 Whirlpool Light
7	BULB-LIGHT
8	WP4455605 Whirlpool Left Hand Hinge
8	WP4455606 Whirlpool Right Hand Hinge
9	W10269205 Whirlpool Side Compartment
9	W10269206 Whirlpool Side Compartment
10	CABINET (NOT A SERVICEABLE PART)
11	WPW10131825 Whirlpool Oven Temperature Sensor
12	WP4449154 Whirlpool Screw
13	WP12990527 Whirlpool Microwave Screw
14	SCREW
15	WP4449751 Whirlpool Range Oven Thermostat Fix
16	W11368870 Whirlpool Retainer Assembly
17	SCREW
18	ORIFICE, BOILER
19	Orifice, Boiler Slip Fit
21	W10194453 Whirlpool Switch
22	Hose (includes clamp)
23	ENCLOSEURE, STEAM VALVE
24	Valve, Solenoid
25	WPW10076760 Whirlpool Sensor
26	HOSE, SILICONE
27	W10160828 Whirlpool Tubing
28	8186352 Whirlpool Boiler
