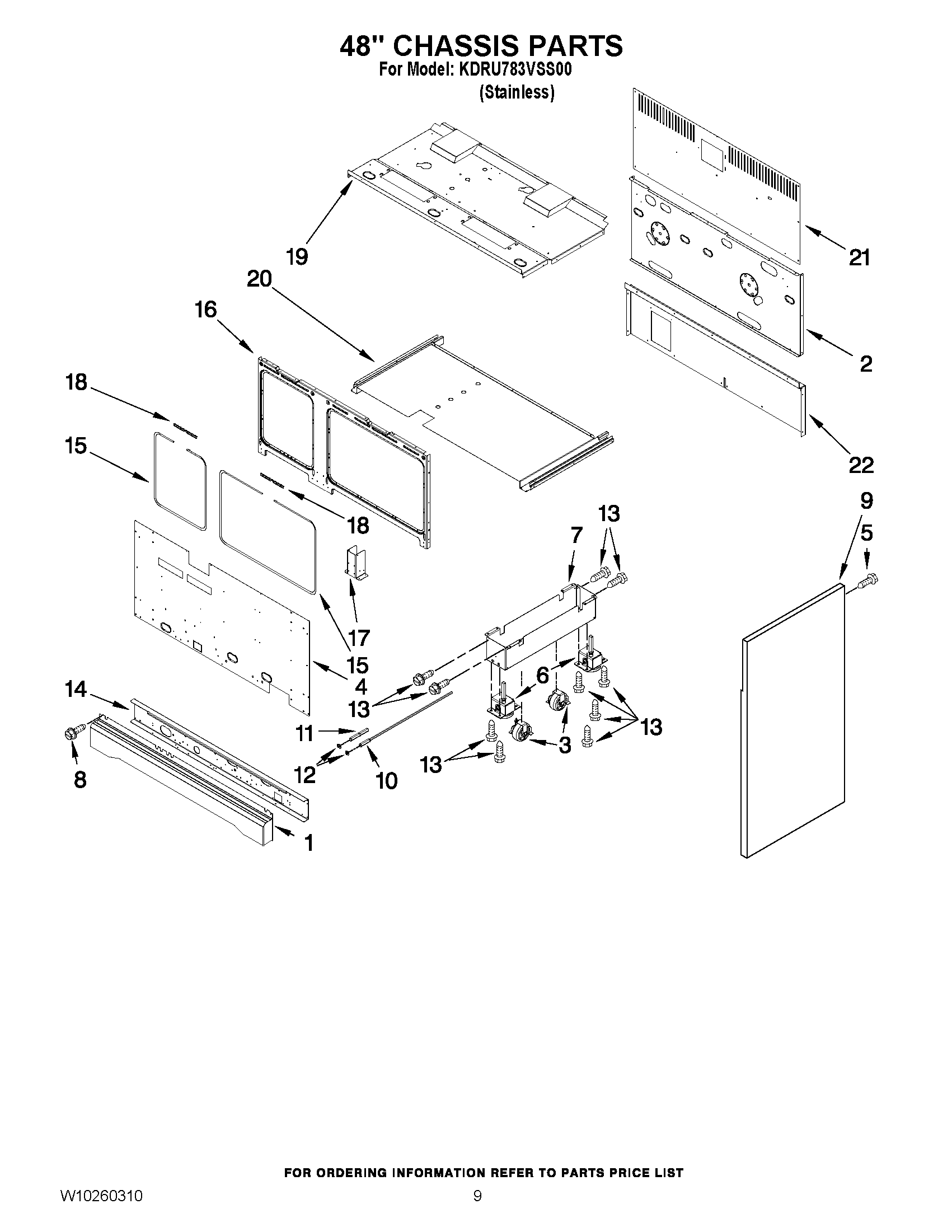

KDRU783VSS00 05 – 48“ CHASSIS PARTS

Products

Position	Product
1	WPW10225969 Whirlpool Oven Vent
2	BACK, CHASSIS
3	WPW10138054 Whirlpool Refrigerator Cabinet Roller
4	W10269195 Whirlpool Duct Assembly
6	W10859931 Whirlpool Foot Level
7	W10249333 Whirlpool Dishwasher Mounting Bracket
8	WP3196557 Whirlpool Screw
9	W10250466 Whirlpool Cabinet Panel
9	W11321067 Whirlpool Complete Side Assembly
10	W10115869 Whirlpool Shaft
11	W10115793 Whirlpool Shaft
12	489504 Whirlpool Oven Ring
13	WPW10292297 Whirlpool Screw
14	W10269192 Whirlpool Support
15	W11675844 Whirlpool Oven Gasket
15	W10116039 Whirlpool Door Gasket
16	FRAME, FRONT
17	W10115819 Whirlpool Brace
18	W11368870 Whirlpool Retainer Assembly
18	W10216520 Whirlpool Retainer
19	CHASSIS, TOP
20	W10235535 Whirlpool Bottom Main
21	PANEL, BACK TOP
22	W10145397 Whirlpool Rear Cover
22	SCREW, ANTI-TIP KIT
