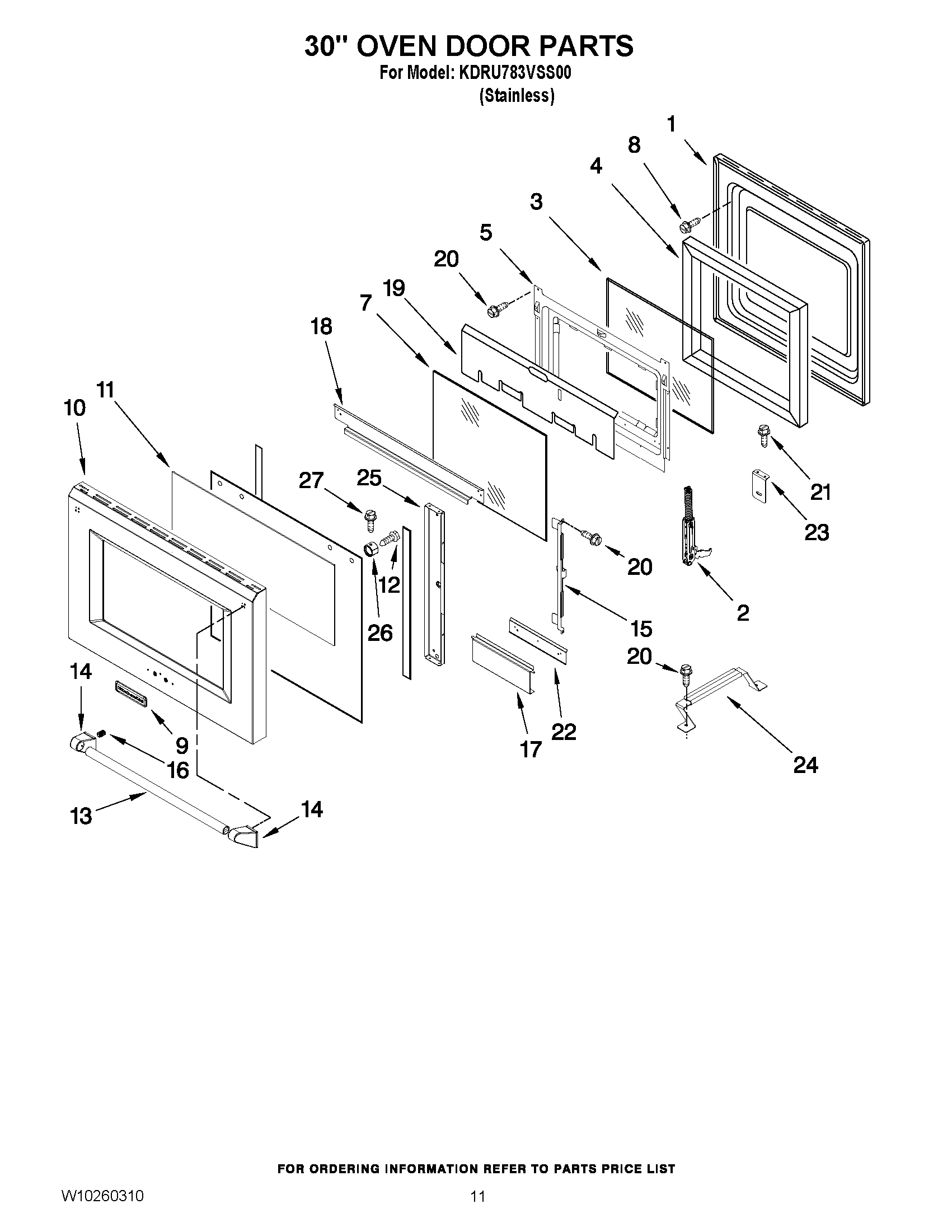

KDRU783VSS00 07 – 30“ OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	W10782122 Whirlpool Door Hinge
2	W10782123 Whirlpool Door Hinge Assembly
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
5	W10226002 Whirlpool Retainer
7	WP9759225 Whirlpool Inner Door Glass
8	WPW10292297 Whirlpool Screw
9	W10852683 Whirlpool Nameplate
10	PANEL, DOOR (STAINLESS)
11	GLASS, OUTER DOOR
12	W10217130 Whirlpool Screw
13	W10115720 Whirlpool Door Handle
14	HANDLE, END CAPS (RIGHT)
14	HANDLE, END CAPS (LEFT)
15	WP9759229 Whirlpool Mounting Bracket
16	W10771437 Whirlpool Screw
17	BRACKET, OUTER GLASS (BOTTOM)
18	W10145805 Whirlpool Glass Bracket
19	SHIELD, HEAT TOP
20	WP3196557 Whirlpool Screw
21	SCREW
22	4457114 Whirlpool Oven Heat Shield
23	BRACKET, DOOR TOP
24	Bracket (3rd Glsss)
25	BRACKET, OUTER GLASS (SIDE)
26	SUPPORT, HANDLE
27	W10061760 Whirlpool Screw
