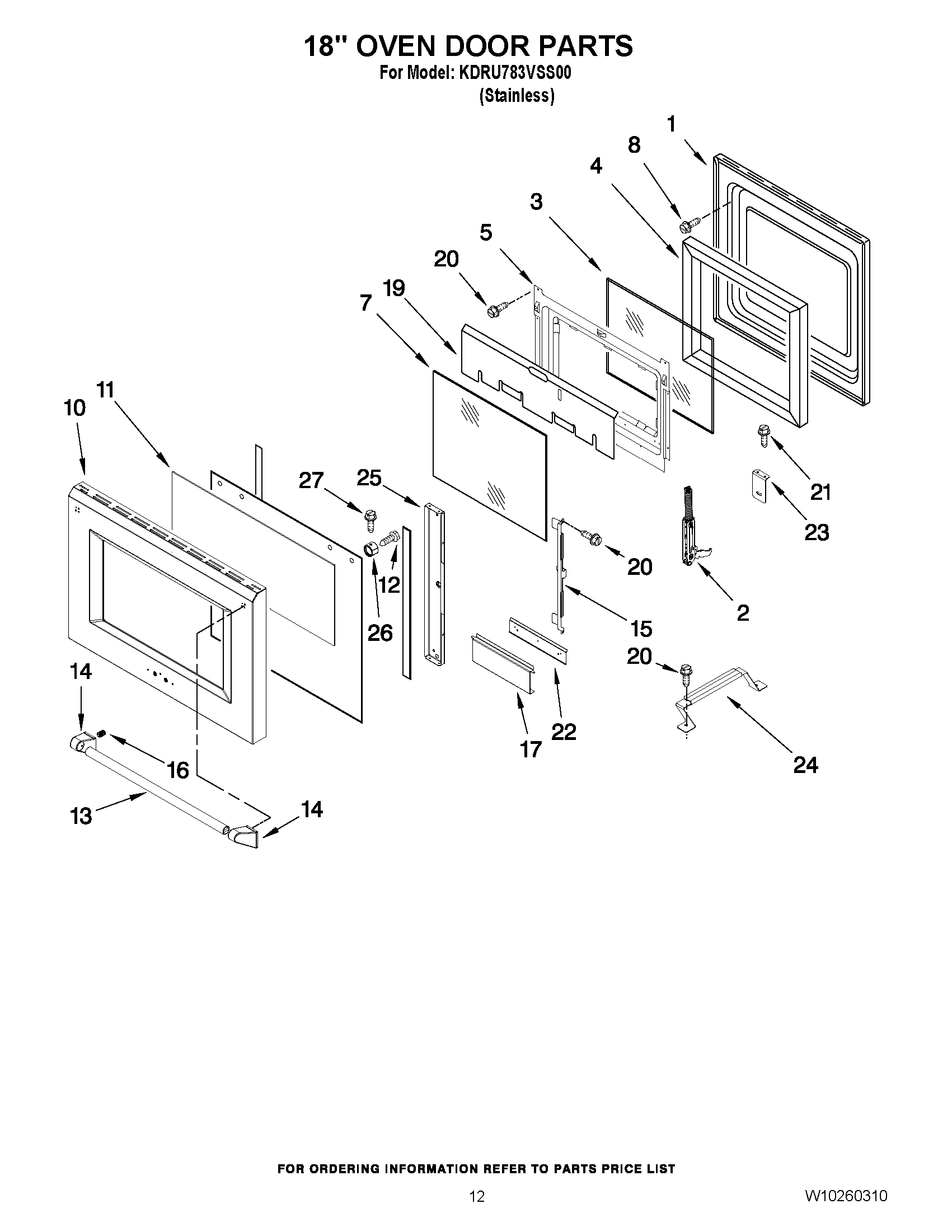

KDRU783VSS00 08 – 18“ OVEN DOOR PARTS

Products

Position	Product
1	W10188323 Whirlpool Door Liner
2	HINGE, DOOR (RIGHT)
2	W10774089 Whirlpool Door Hinge
3	GLASS, INNER DOOR
4	W10115737 Whirlpool Insulation
5	W10188325 Whirlpool Retainer
7	WPW10115695 Whirlpool Door Glass
8	WPW10292297 Whirlpool Screw
10	WPW10226004 Whirlpool Door Panel
11	WPW10115710 Whirlpool Door Glass
12	W10217130 Whirlpool Screw
13	W10115719 Whirlpool Door Handle
14	HANDLE, END CAPS (RIGHT)
14	HANDLE, END CAPS (LEFT)
15	WP9759229 Whirlpool Mounting Bracket
16	W10771437 Whirlpool Screw
17	BRACKET, OUTER GLASS BOTTOM
19	SHIELD, TOP HEAT
20	WP3196557 Whirlpool Screw
21	SCREW
22	SHIELD, LOWER HEAT
23	W10145807 Whirlpool Glass Bracket
24	Bracket (3rd Glsss)
25	BRACKET, OUTER GLASS (SIDE)
26	SUPPORT, HANDLE
27	W10061760 Whirlpool Screw
