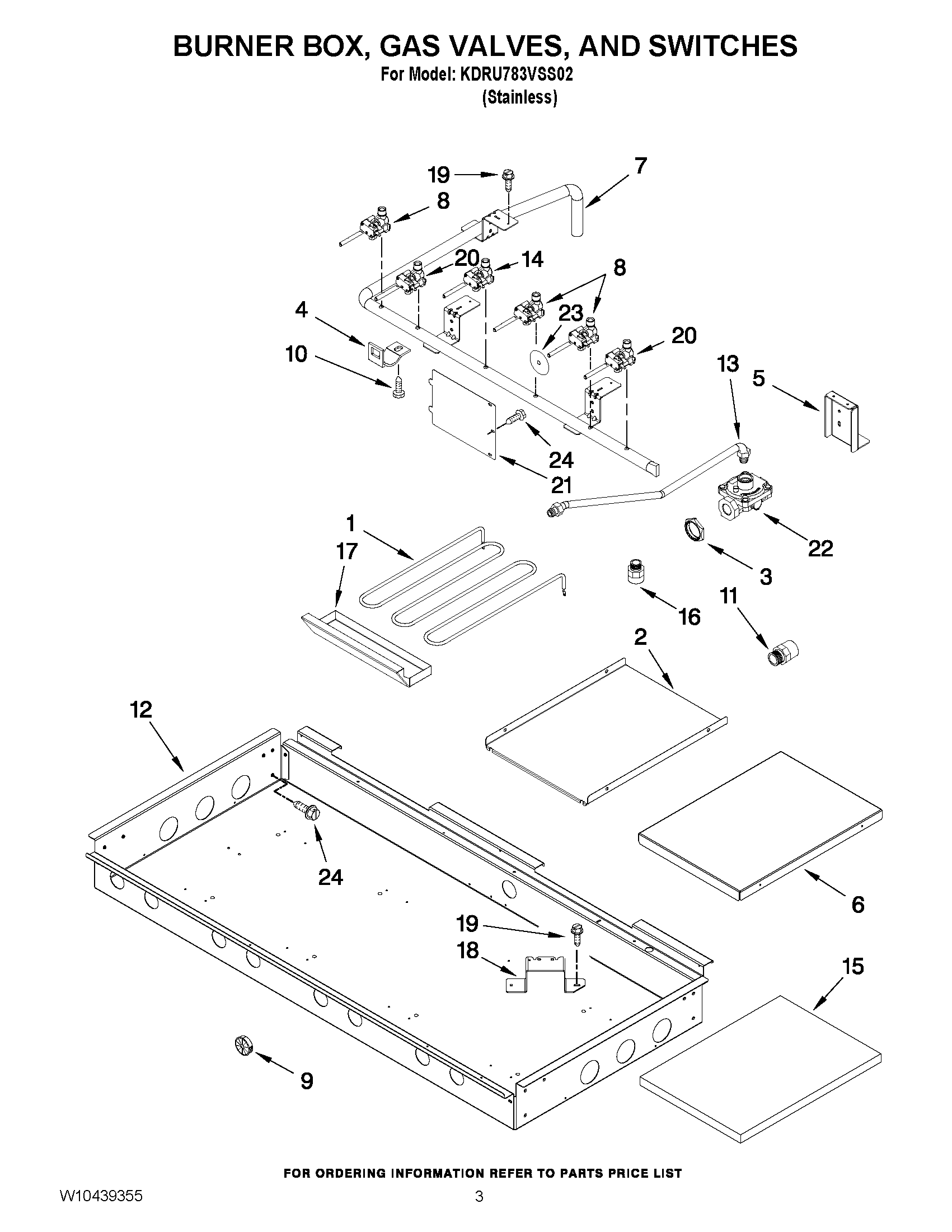

KDRU783VSS02 02 – BURNER BOX, GAS VALVES, AND SWITCHES

Products

PositionProduct
NIW10280797 Whirlpool Gas Tubing
NIINSULATION, BURNER BOX
NIW10353141 Whirlpool Gas Tubing Assembly
NIW10353152 Whirlpool Gas Tubing
NIW10353154 Whirlpool Gas Tubing
NIWPW10353133 Whirlpool Gas Tubing
1W10138296 Whirlpool Element Grille
2W10145620 Whirlpool Bottom Model
3W10115953 Whirlpool Nut
5W10115850 Whirlpool Mounting Bracket
6W10246074 Whirlpool Insulation Tray
7W10250421 Whirlpool Manifold Assembly
8WPW10385582 Whirlpool Burner Valve
9W10189097 Whirlpool Bushing Assembly
10W10189140 Whirlpool Screw
114453116 Whirlpool Oven Adapter
12BOX, BURNER
13W10269191 Whirlpool Gas Tubing
14WPW10385583 Whirlpool Burner Valve
15W11684995 Whirlpool Insulation
164453115 Whirlpool Oven Adapter
17W10276497 Whirlpool Drip Tray
18W10189107 Whirlpool Mounting Bracket
194450800 Whirlpool Oven Screw
20WPW10371235 Whirlpool Burner Valve
21W10115843 Whirlpool Access Cover
22W10293267 Whirlpool Regulator Assembly
23W10423373 Whirlpool Switch Seal
24SCREW
