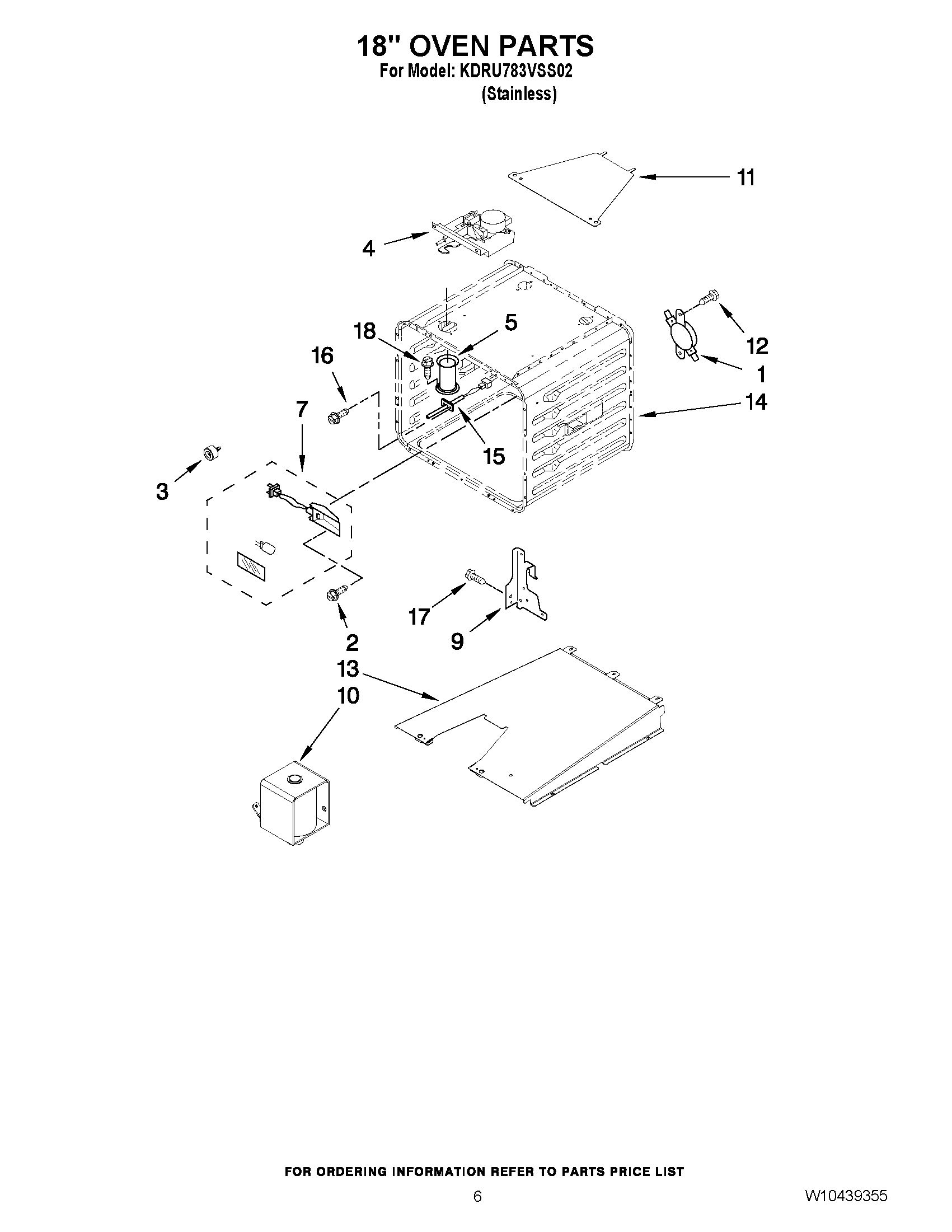

KDRU783VSS02 04 – 18“ OVEN PARTS

Products

Position	Product
NI	INSULATION, BACK, 18"
NI	W11688722 Whirlpool Insulation
1	WP4449751 Whirlpool Range Oven Thermostat Fix
2	4449748 Whirlpool Oven Screw
3	W10105790 Whirlpool Bumper
4	W11029221 Whirlpool Door Latch
5	TUBE, VENT
7	WPW10307114 Whirlpool Light
9	WP4455606 Whirlpool Right Hand Hinge
9	WP4455605 Whirlpool Left Hand Hinge
10	VENT, COOLING BOTTOM (18")
11	W10160858 Whirlpool Lid Cover
12	SCREW
13	W10160897 Whirlpool Exhaust Vent
14	CABINET (NOT A SERVICEABLE PART)
15	WPW10131825 Whirlpool Oven Temperature Sensor
16	WP4449154 Whirlpool Screw
17	WP12990527 Whirlpool Microwave Screw
18	SCREW
