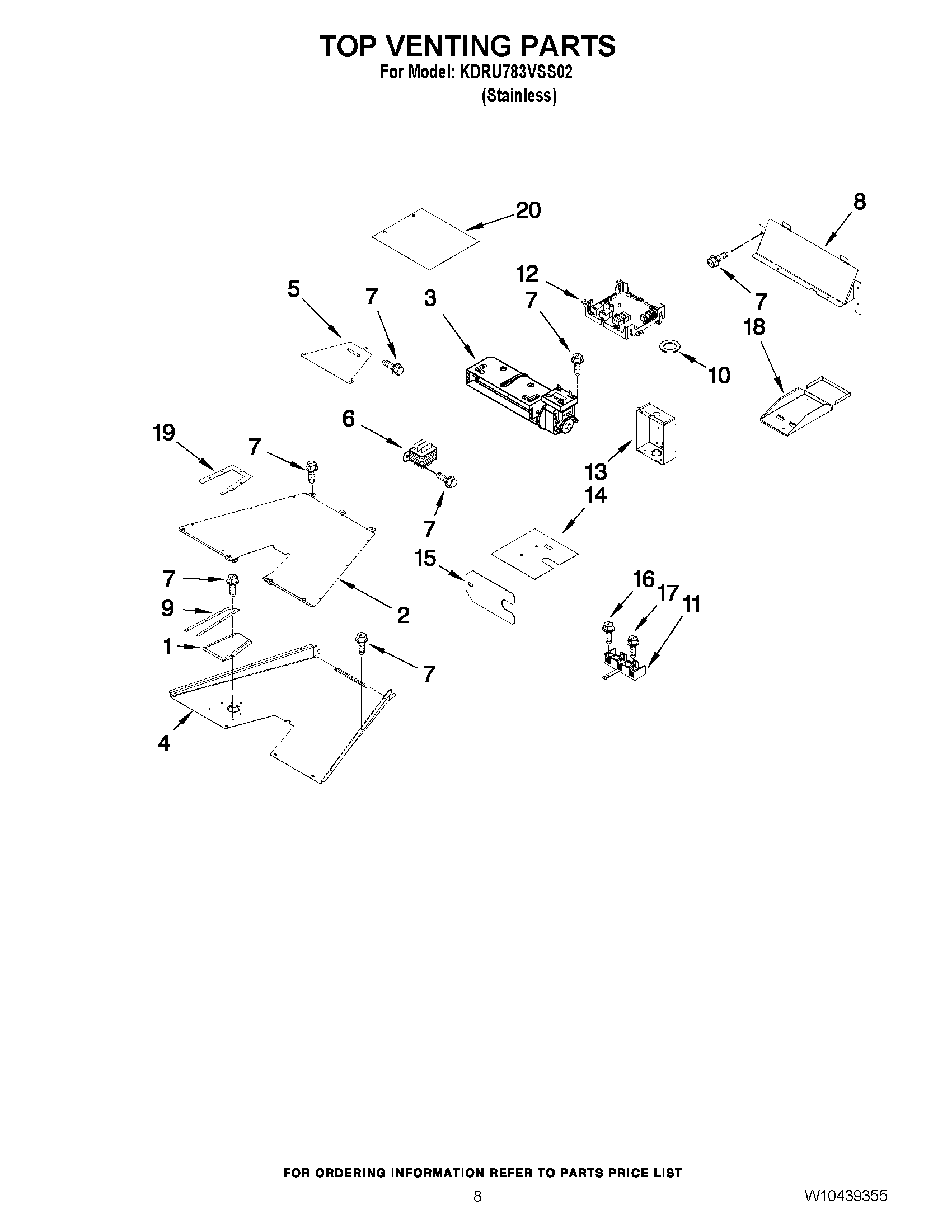

KDRU783VSS02 06 – TOP VENTING PARTS

Products

Position	Product
1	W10226008 Whirlpool Vent Exhaust
1	W10246075 Whirlpool Exhaust Vent
2	VENT, COOLING TOP (30")
3	WPW10245511 Whirlpool Blower
4	W10246078 Whirlpool Vent Panel
5	PLATE, COOLING LATCH
6	Transformer, Control
8	W10160844 Whirlpool Bracket Mounting
9	W10270402 Whirlpool Seal Assembly
10	SEAL, CHIMNEY
11	WP9761958 Whirlpool Range Terminal Block
13	W10115858 Whirlpool Box Terminal
14	9759721 Whirlpool Oven Insulator
15	COVER, CHANNEL
16	WP3196163 Whirlpool Screw
17	SCREW
18	SUPPORT, CONTROL
19	W10270397 Whirlpool Vent Seal
20	W10239444 Whirlpool Foam Seal
