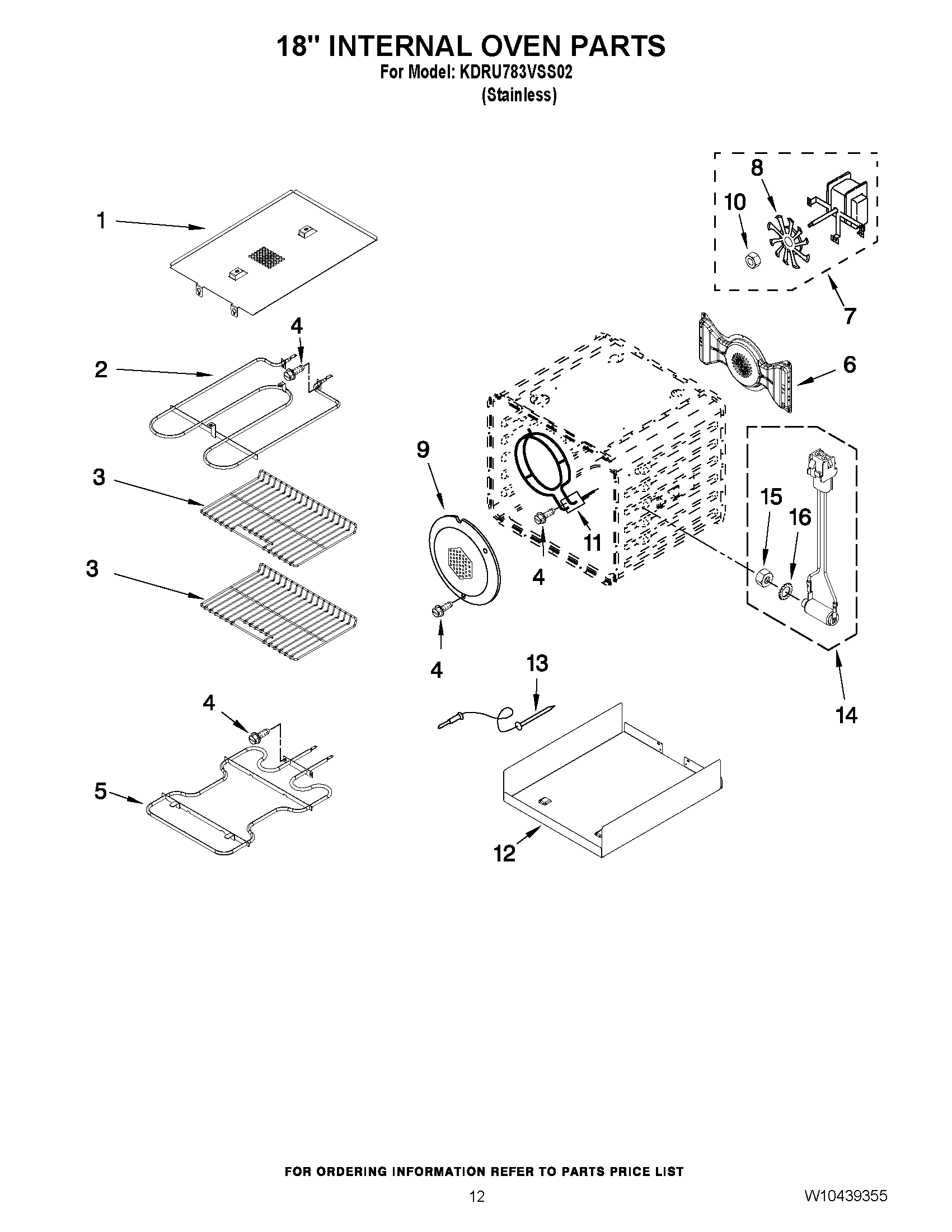

KDRU783VSS02 10 – 18“ INTERNAL OVEN PARTS

KDRU783VSS02 10 – 18“ INTERNAL OVEN PARTS

Written by

in

KDRU783VSS02 10 – 18“ INTERNAL OVEN PARTS

Products

PositionProduct
1W10160855 Whirlpool Heat Shield
2W10116010 Whirlpool Broil Element
3W10277391 Whirlpool Oven Rack
4WP4449154 Whirlpool Screw
5W10116033 Whirlpool Bake Element
6BAFFLE, CONVECTION
7W10794022 Whirlpool Oven Cooktop Fan Motor
8W10758272 Whirlpool Convection Fan
9WPW10160821 Whirlpool Fan Cover
10WPW10116349 Whirlpool Nut
11W11643125 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14W10150011 Whirlpool Probe Jack
15WP9755546 Whirlpool Locknut
16WP9755547 Whirlpool Lockwasher
