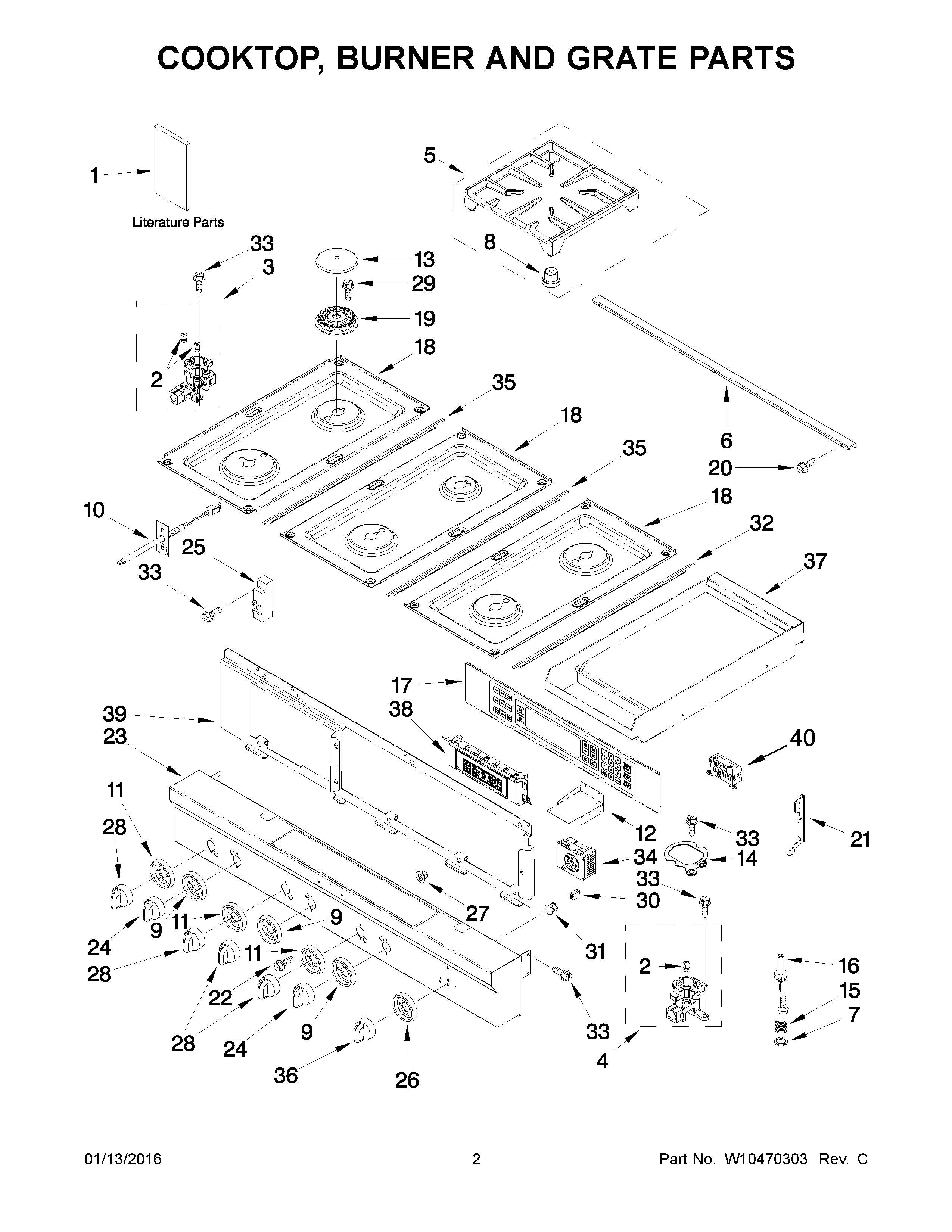

KDRU783VSS03 02 – COOKTOP, BURNER AND GRATE PARTS

KDRU783VSS03 02 – COOKTOP, BURNER AND GRATE PARTS

Written by

in

KDRU783VSS03 02 – COOKTOP, BURNER AND GRATE PARTS

Products

PositionProduct
1SHEET, TECH (ENGLISH)
1DSAFER COOKING TIPS (ENGLISH
1ESafer Cooking Tips (French)
1CINSTRUCTIONS, INSTALLATION
1BUSE & CARE GUIDE
1ASHEET, TECH (FRENCH)
2SPUD-ORFCE
2CWPW10256128 Whirlpool Orifice Spud
2AW10819958 Whirlpool Orifice Spud
2BW11051480 Whirlpool Orifice Assembly
3WPW10364555 Whirlpool Orifice Holder
4AW10282659 Whirlpool Orifice Holder
4WPW10364556 Whirlpool Orifice Holder
5WPW10115928 Whirlpool Burner Grate
6W10269216 Whirlpool Top Trim
78286863 Whirlpool Oven Clip
8W10185266 Whirlpool Burner Grate Foot Pad (4 Pack)
9W10261510 Whirlpool Knob Bezel
10W10319835 Whirlpool Sensor
11W10261512 Whirlpool Knob Bezel
12BRACKET, SPARK MODULE
13CAP-BURNER
13BCAP-BURNER
13ACAP-BURNER
148286930 Whirlpool Oven Gasket
15W10256046 Whirlpool Clip
16W10833887 Whirlpool Surface Igniter
16AWPL 8286724
17WPW10116105 Whirlpool Membrane Switch
18AW10352966 Whirlpool Cooktop
18BW10352967 Whirlpool Cooktop
18W10352969 Whirlpool Cooktop Assembly
19BBURNR-HEAD
19W11106799 Whirlpool Range Burner Base Surface
19ABURNR-HEAD
20SCREW
21AW10130759 Whirlpool Mounting Bracket
21W10130760 Whirlpool Bracket Mounting
22SCREW
23WPL W10115885
24W11244176 Whirlpool Knob Assembly
25W11601369 Whirlpool Spark Module
26W10261515 Whirlpool Knob Bezel
27WPL 7103P16660
28W11177673 Whirlpool Knob
29WPW10373929 Whirlpool Screw
30W10116151 Whirlpool Indicator Light
31W10116115 Whirlpool Light Lens
32W10291193 Whirlpool Trim Top
33SCREW
34WPW10116113 Whirlpool Infinite Switch
35W10271524 Whirlpool Trim Top
36W10250390 Whirlpool Knob
37W10625221 Whirlpool Module
38WPL W10533030
39BRACKET USER INTERFACE
40WPW10475147 Whirlpool Spark Module
