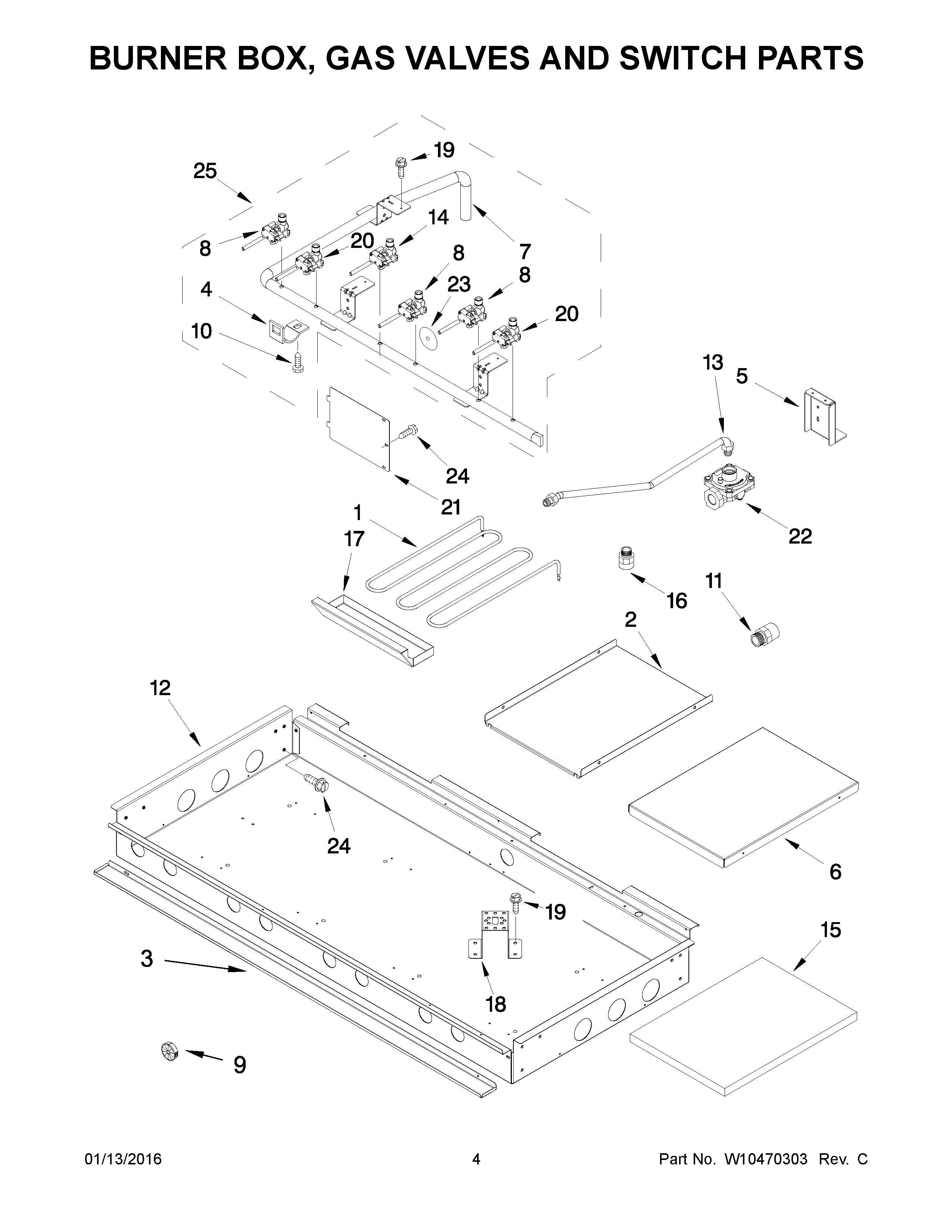

KDRU783VSS03 03 – BURNER BOX, GAS VALVES AND SWITCH PARTS

Products

Position	Product
NI	INSULATION, BURNER BOX
NI	CABINET (NOT A SERVICEABLE PART)
NI	WPW10353133 Whirlpool Gas Tubing
NI	W10353154 Whirlpool Gas Tubing
NI	W10353152 Whirlpool Gas Tubing
NI	W10353141 Whirlpool Gas Tubing Assembly
NI	W10280797 Whirlpool Gas Tubing
1	W10138296 Whirlpool Element Grille
2	W10145620 Whirlpool Bottom Model
3	DRIP, TRAY 48"
4	BRACKET, VALVE
5	W10115850 Whirlpool Mounting Bracket
6	W10246074 Whirlpool Insulation Tray
7	W10250421 Whirlpool Manifold Assembly
8	WPW10385582 Whirlpool Burner Valve
9	W10189097 Whirlpool Bushing Assembly
10	W10189140 Whirlpool Screw
11	4453116 Whirlpool Oven Adapter
12	BOX, BURNER
13	W10452066 Whirlpool Gas Tubing
14	WPW10385583 Whirlpool Burner Valve
15	W11684995 Whirlpool Insulation
16	4453115 Whirlpool Oven Adapter
17	W10276497 Whirlpool Drip Tray
18	W10560553 Whirlpool Mounting Bracket
19	4450800 Whirlpool Oven Screw
20	WPW10371235 Whirlpool Burner Valve
21	W10115843 Whirlpool Access Cover
22	W10293267 Whirlpool Regulator Assembly
23	W10189177 Whirlpool Seal Switch
24	SCREW
25	ASSEMBLY, MANIFOLD
