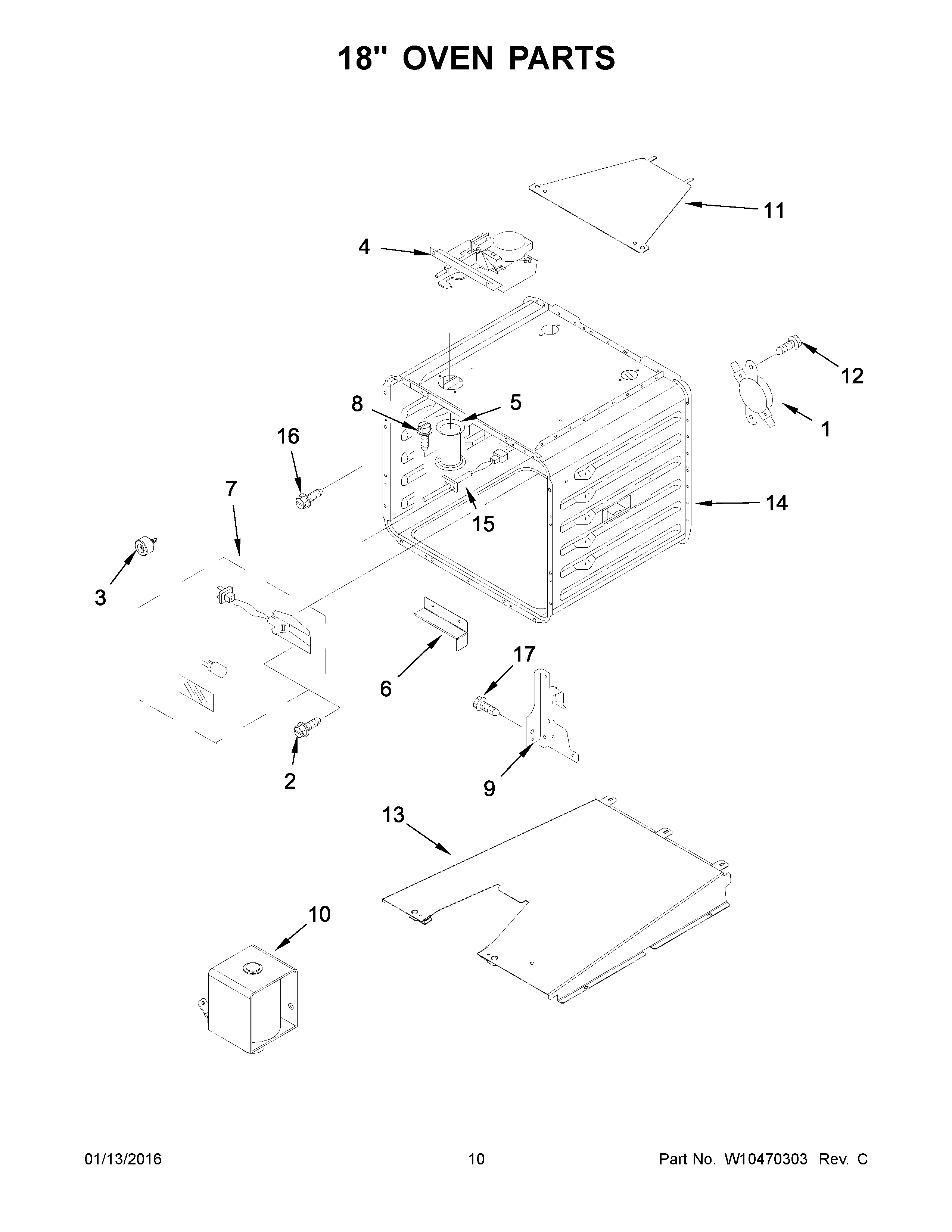

KDRU783VSS03 06 – 18 INCH OVEN PARTS

Products

PositionProduct
NIW11688722 Whirlpool Insulation
NIINSULATION, BACK, 18"
NICABINET (NOT A SERVICEABLE PART)
1WP4449751 Whirlpool Range Oven Thermostat Fix
24449748 Whirlpool Oven Screw
3W10105790 Whirlpool Bumper
4W11029221 Whirlpool Door Latch
5TUBE, VENT
6COVER, BAKE 18"
7WPW10307114 Whirlpool Light
8SCREW
9WP4455605 Whirlpool Left Hand Hinge
9AWP4455606 Whirlpool Right Hand Hinge
10VENT, COOLING BOTTOM (18")
11W10160858 Whirlpool Lid Cover
12SCREW
13W10160897 Whirlpool Exhaust Vent
15WPW10131825 Whirlpool Oven Temperature Sensor
16WP4449154 Whirlpool Screw
17WP4449743 Whirlpool Screw
