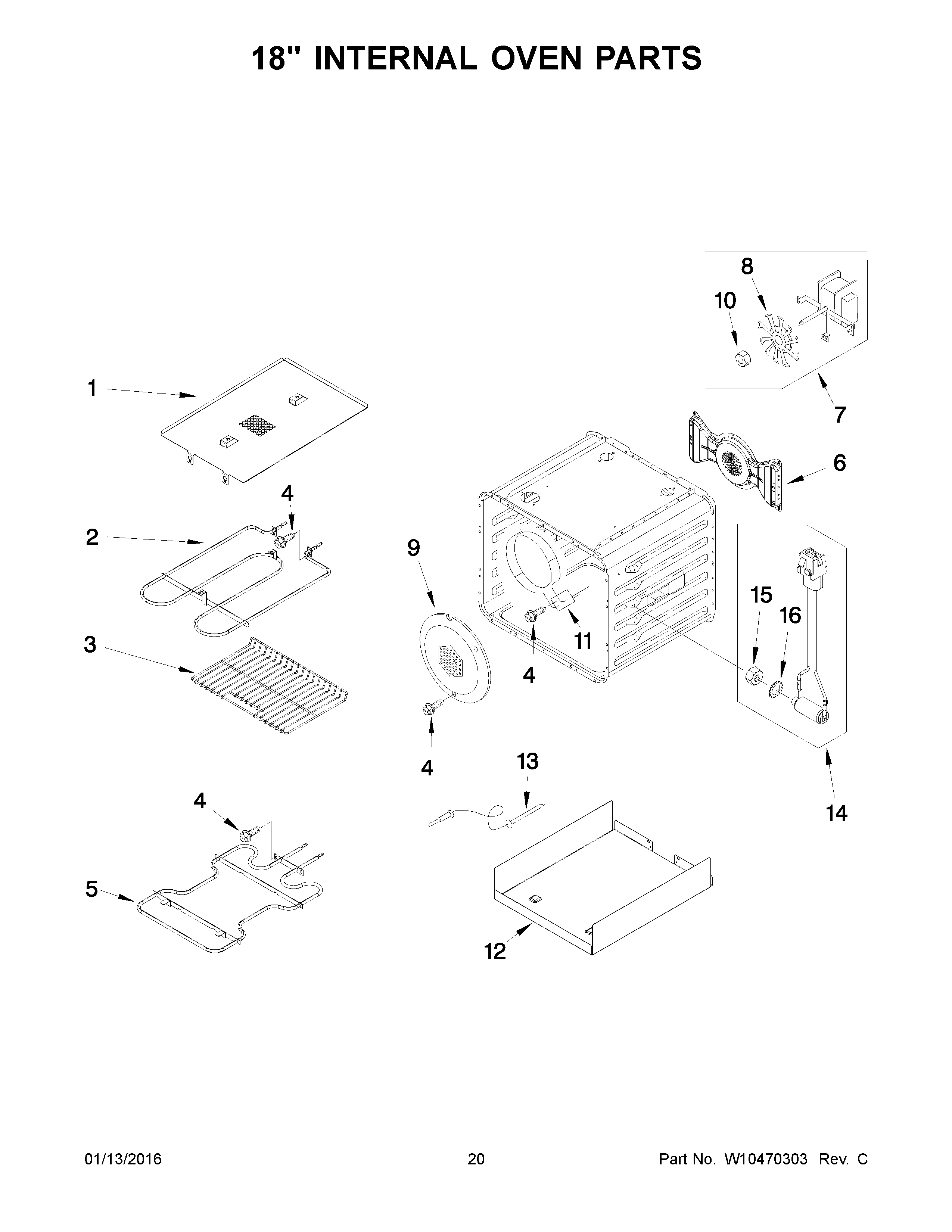

KDRU783VSS03 11 – 18 INCH INTERNAL OVEN PARTS

Products

PositionProduct
1W10160855 Whirlpool Heat Shield
2W10116010 Whirlpool Broil Element
3W10570879 Whirlpool Oven Rack Assembly
4WP4449154 Whirlpool Screw
5W10116033 Whirlpool Bake Element
6BAFFLE, CONVECTION
7W10860984 Whirlpool Fan Motor
8W10819914 Whirlpool Convection Fan
9WPW10160821 Whirlpool Fan Cover
10W10794042 Whirlpool Nut
11W11643125 Whirlpool Element
12TRAY, HIDDEN BAKE
13WP9755542 Whirlpool Oven Meat Probe
14W10150011 Whirlpool Probe Jack
15WP9755546 Whirlpool Locknut
16WP9755547 Whirlpool Lockwasher
