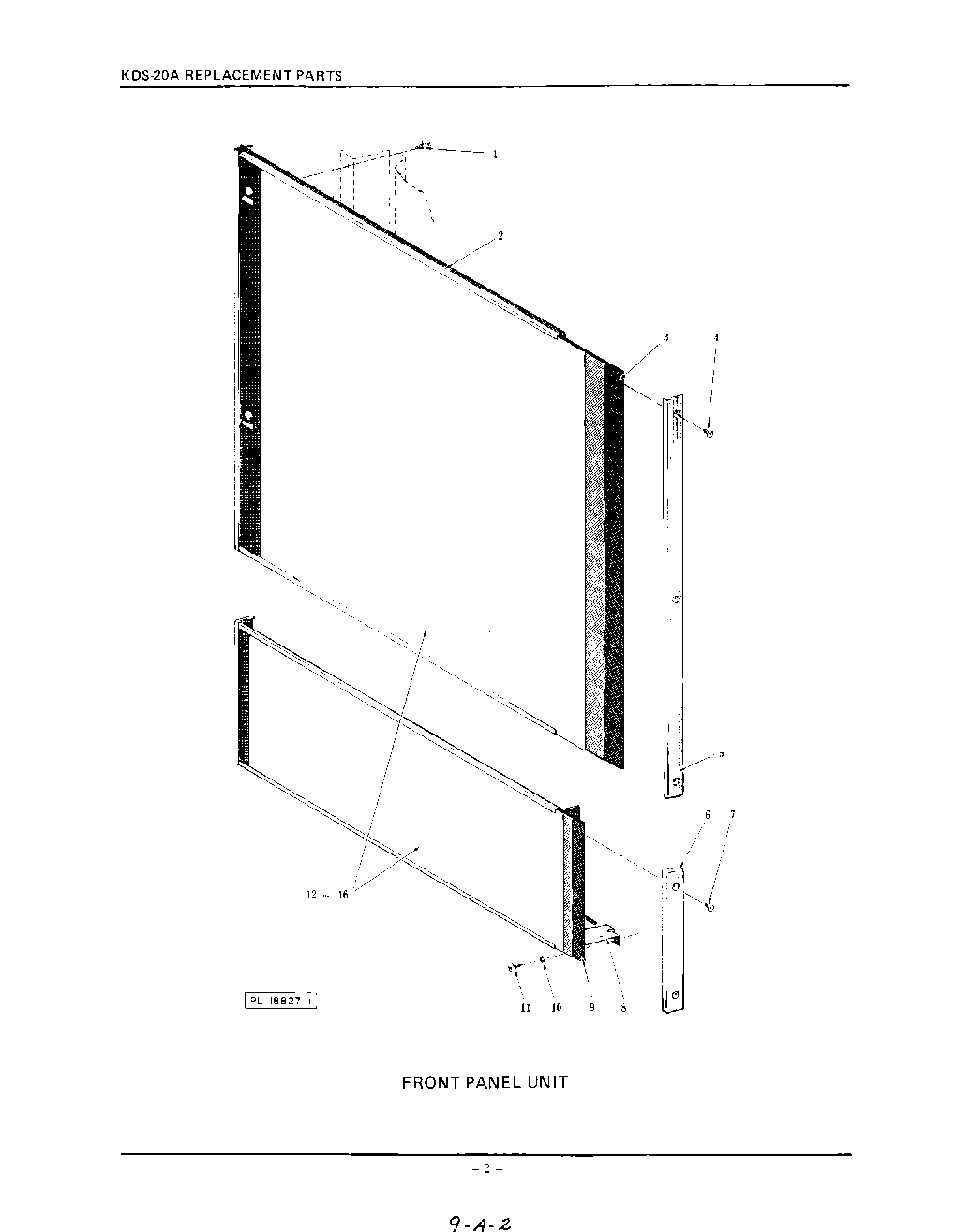

KDS20A 02 – FRONT PANEL

Products

Position	Product
1	xxScrew & Washer Assy
2	xUpper Mounting Panel & Trim Assy
3	xFiller – Upper Panel
4	xxSelf-Tapping Screw – No.6 x 1/4“ Phil. Flat Hd., Type AB
5	Side Trim – Upper Panel
6	Side Trim – Lower Panel
7	xxSelf-Tapping Screw – No.6 x 1/4“ Phil. Flat Hd., Type AB
8	xLower Mounting Panel & Trim Assy
9	xFiller – Lower Panel
10	xLock Washer – No.10 Ext. Shakeproof (Left Side for Ground)
11	xSelf-Tapping Screw – No. 10 x 1/2“ Phil. Truss Hd., Type AB
12	Kit – Panel Inserts (FA/CO)
13	Kit – Panel Inserts (SST)
14	Kit – Panel Inserts (AL/WH)
15	Kit – Panel Inserts (HT/OB)
