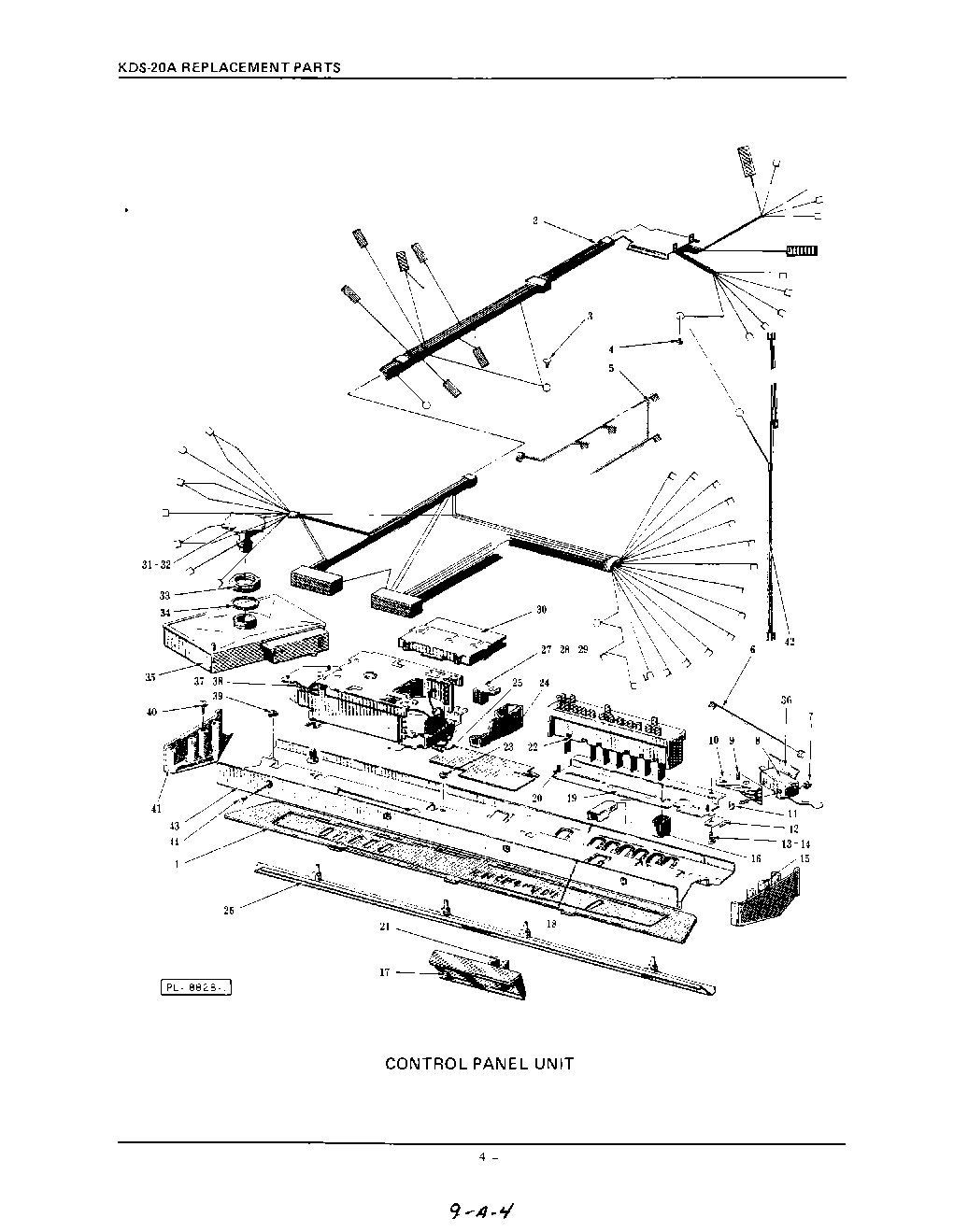

KDS20A 03 – CONTROL PANEL

Products

Position	Product
1	xInsert – Acrylic (Trim Panel)
2	Harness – Main Wiring
3	Self-Tapping Screw 8-18 x 1/2 Phil. Bin
4	WPL SD843
5	Harness – Lower
6	Lead (Interlock Switch to Program Switch)
7	Special Nut – No.6-32 “Palnut“
8	Switch – Interlock
9	Self-Tapping Screw 6-32 x 3/8 Phil. Truss Hd., Type 17
10	Bracket – Interlock Switch
11	Mach. Screw – No.6-32 x 7/8“ Rd. Hd
12	Clip – Grounding (Front Panel)
14	Lock Washer – No.8 Ext. Shakeproof (Use with Left Screw)
15	xCap – End (R.H.)
16	Button – Push
17	Handle – Latch
18	Light – Rinsed Only
19	Bracket – Program Switch
20	Self-Tapping Screw – No.6-32 x 3/8“ Phil. Pan Hd., Type F
21	WPL SC1714
22	Switch – Program
24	Spring – Switch Cancel
25	Harness Insulator
26	Bar – Trim
27	Anchor – Cancel Spring
28	Spacer – Cancel Lever
29	Pop Rivet – 1/8“ Open End
30	Sequence Lights Assy
31	WPL B241163
32	WPL B241101
33	Nut (Fill Air Gap)
34	Gasket – Rubber (White)
35	WPL D241137
36	WPL B241302
37	WPL C242105
38	WPL SD1311
39	Special Nut – 1/8“ Stud “Palnut“
40	WPL B240513
41	WPL B241058
42	WPL C241501
43	WPL E241493
44	WPL SD2227
