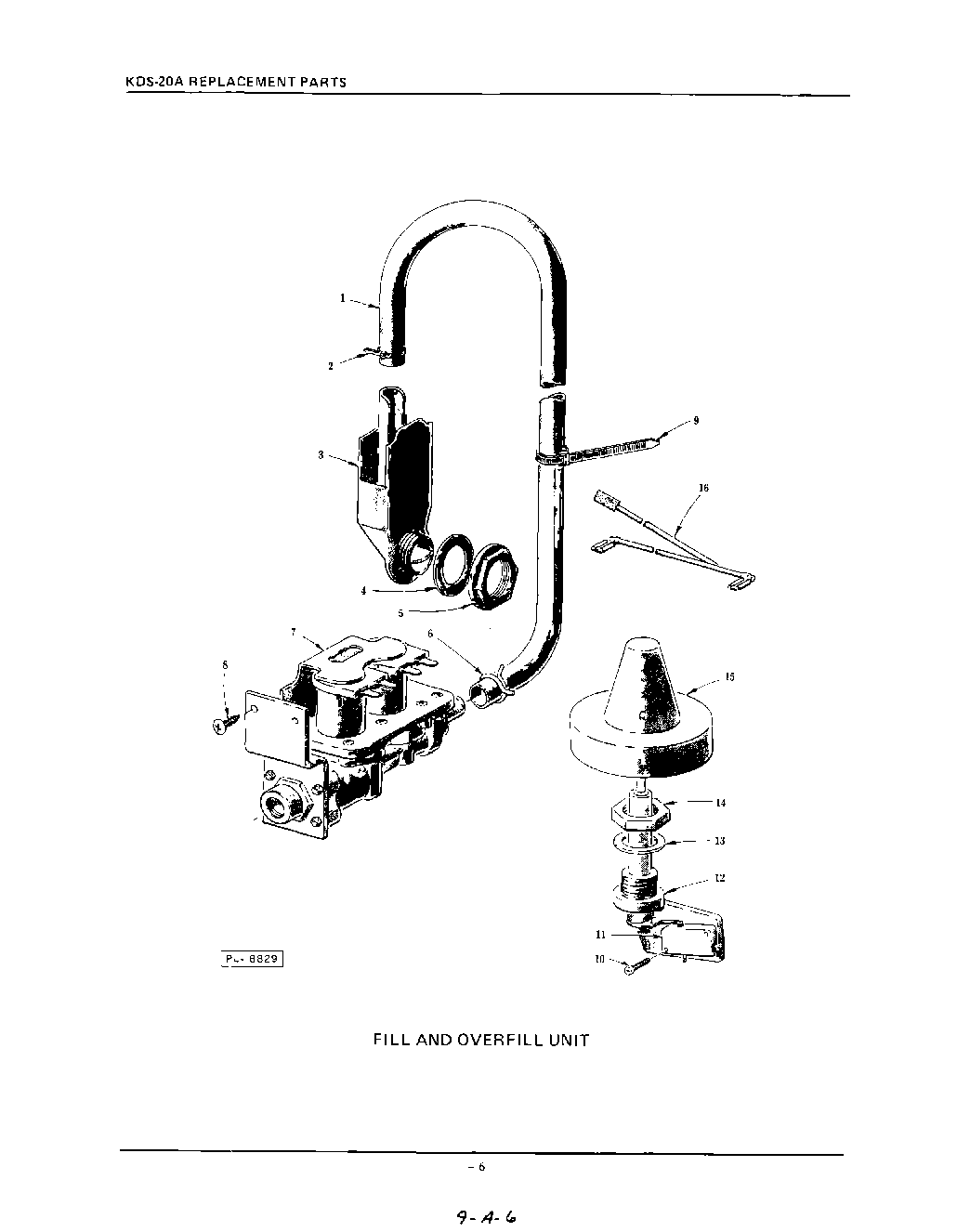

KDS20A 04 – FILL AND OVERFILL

Products

Position	Product
1	Hose – Flexible (Fill Valve to Air Gap)
2	Clamp – Hose
3	Air Gap – Fill
4	Gasket – Rubber (White)
5	Nut (Fill Air Gap)
6	Clamp – Hose
7	Valve – Fill (Double Coil) (115 V., 60 Hz.) (KDC-21, KDI-21, KDS-21, KDC-21D, KDI-21D)
8	Self-Tapping Screw 10-16 x 1/2 Phil. Truss Hd., Type AB
9	Tie – Wire (8“ Lg.)
10	Self-Tapping Screw 4-40 x 3/4 Phil. Pan Hd., Type F
11	Switch – Overfill Control (115 V., 60 Hz.)
12	Standpipe – Overfill
13	Gasket – Flat
14	Nut – Standpipe
15	Float & Retainer Assy
16	Harness – Overfill Control (Overfill Switch to Fill Valve)
