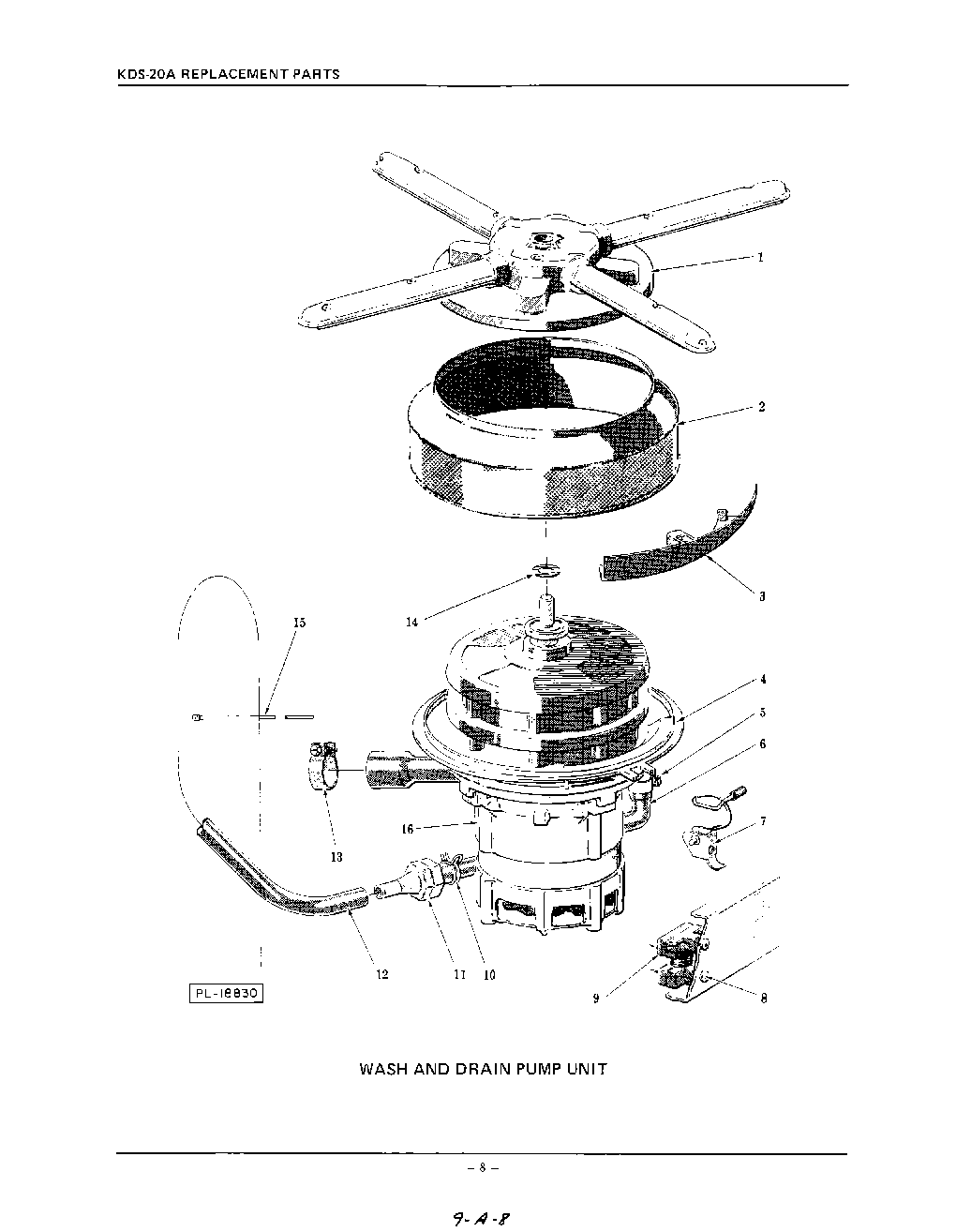

KDS20A 05 – WASH AND DRAIN PUMP

Products

Position	Product
1	Wash Arm Assy
2	Strainer – Fine
3	Strainer – Coarse
4	Pump Seal
5	Clamp – Hose (1.093“ Dia.)
6	Tube – Flexible Drain
7	Motor Clamp Assy
8	Self-Tapping Screw – No.8-16 x 5/16“ Phil. Rd. Hd., “Plastite“
9	Relay – Start
10	Clamp – Hose (.937“ Dia)
11	Valve – Check
12	Tube – High Loop Drain
13	Clamp – Hose (1.468“ Dia.)
14	Washer – Wear
15	Tie – Wire (8“ Lg.)
16	Motor, Pump & Seal Assy. (Incls. items No.4 & 14)
